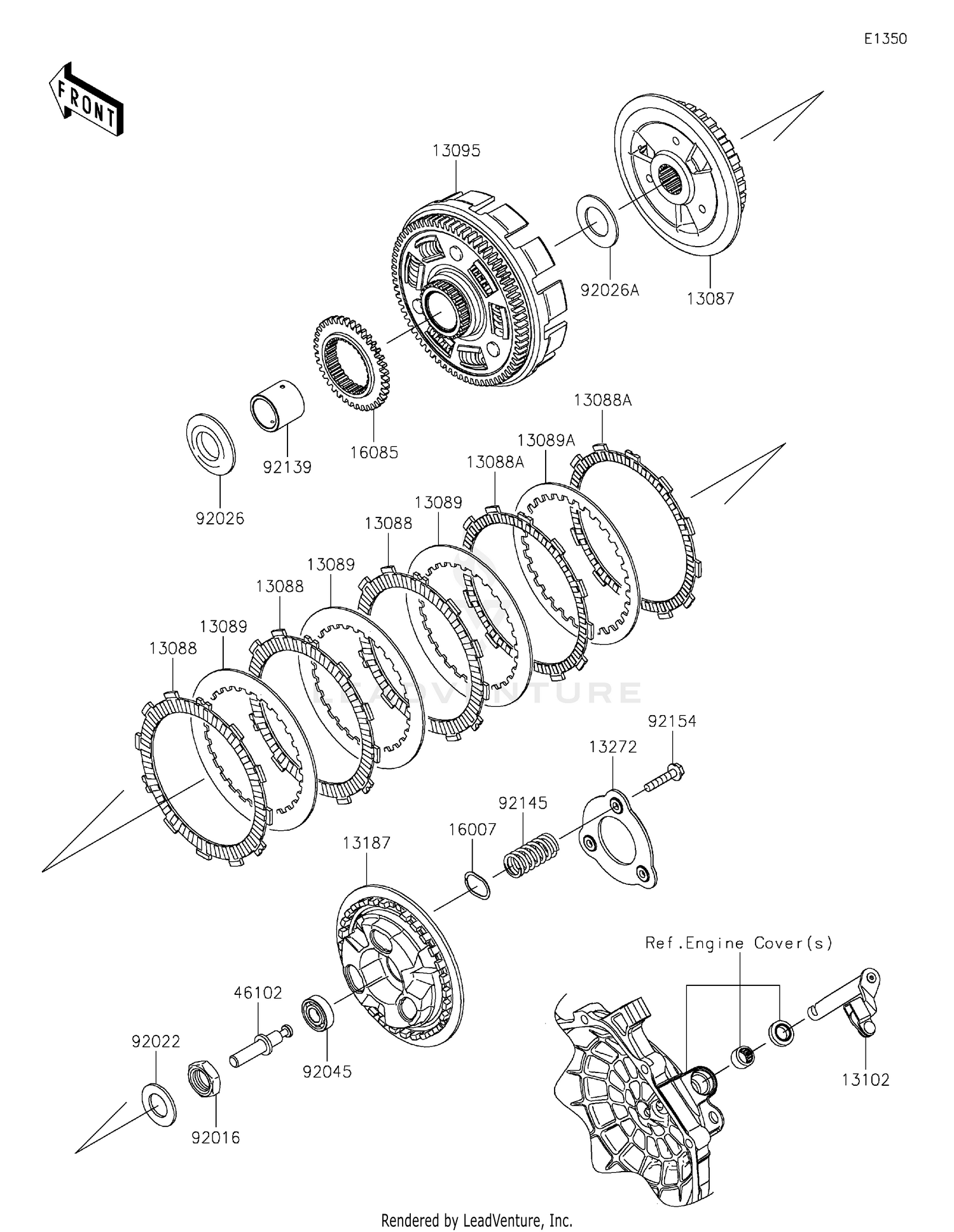

Clutch
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 13087 | 13087-0558 | HUB-CLUTCH Price: $121.95 |
| 13088 | 13088-0590 | PLATE-FRICTION Price: $17.50 |
| 13088A | 13088-0591 | PLATE-FRICTION Price: $17.50 |
| 13089 | 13089-0021 | PLATE-CLUTCH,T=2.0 Price: $11.80 |
| 13089A | 13089-0558 | PLATE-CLUTCH Price: $11.86 |
| 13095 | 13095-0561 | HOUSING-COMP-CLUTCH Price: $475.88 |
| 13102 | 13102-0073 | RELEASE-COMP-CLUTCH Price: $60.60 |
| 13187 | 13187-0553 | PLATE-CLUTCH OPERATING Price: $97.12 |
| 13272 | 13272-1303 | PLATE Price: $19.32 |
| 16007 | 16007-0708 | SEAT-SPRING Price: $3.68 |
| 16085 | 16085-0133 | GEAR,OILPUMP DRIVE,38T Price: $120.39 |
| 46102 | 46102-0573 | ROD Price: $33.27 |
| 92016 | 92016-028 | NUT,20MM Price: $9.91 |
| 92022 | 92022-1116 | WASHER,20.3X36X2.3 Price: $8.58 |
| 92026 | 92026-0115 | SPACER,25X52X5.5 Price: $11.93 |
| 92026A | 92026-0734 | SPACER,25.5X44.5X2 Price: $6.63 |
| 92045 | 92045-1235 | BEARING-BALL,6001C3ML01 This part replaces 92045-0067. Price: $16.25 |
| 92139 | 92139-0916 | BUSHING,25X32X29.1 Price: $26.65 |
| 92145 | 92145-1750 | SPRING Price: $9.34 |
