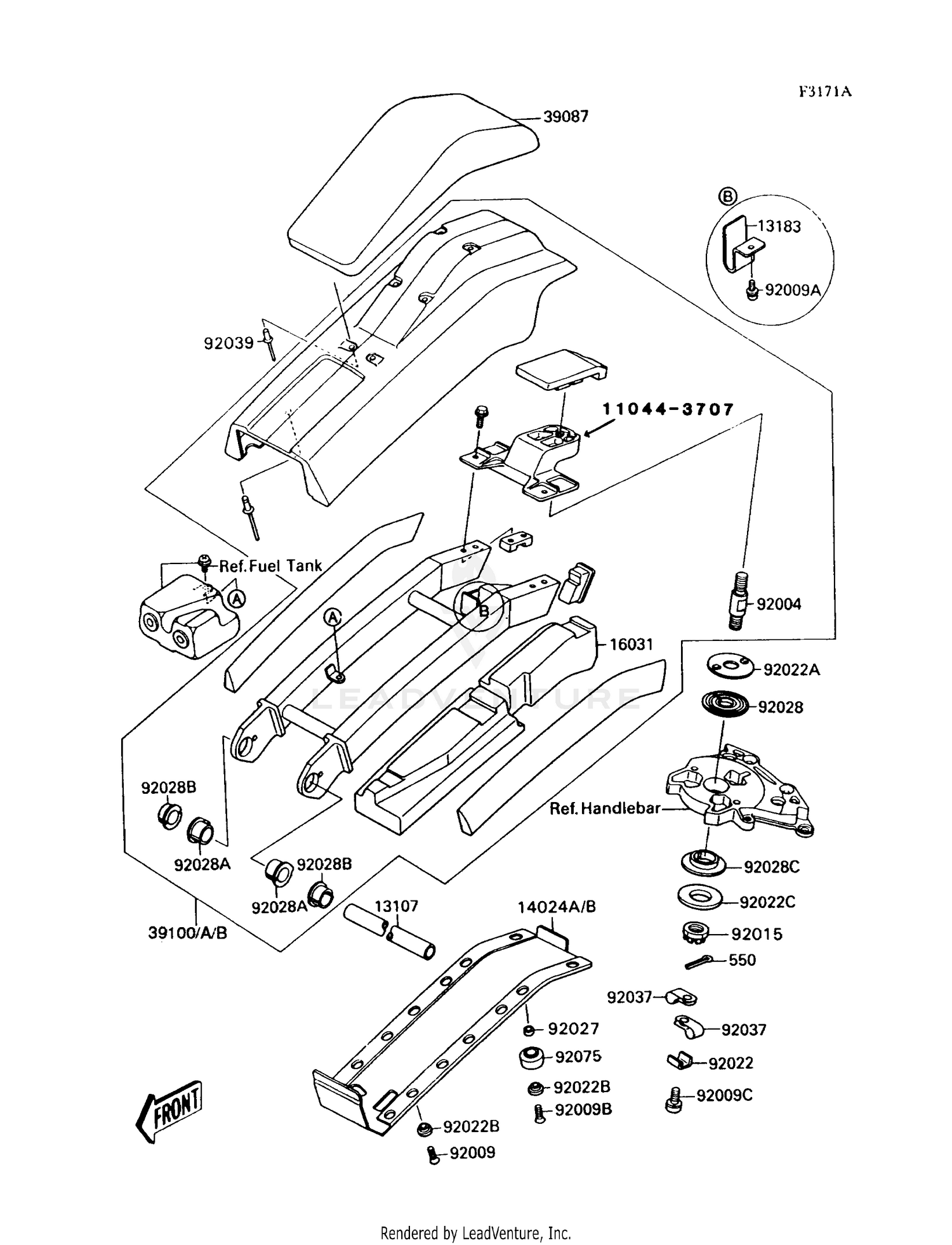

HANDLE POLE (JS300-A2/A3/A4)
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 13107 | 13107-3703 | SHAFT Price: $88.30 |
| 13183 | 13183-3708 | PLATE Price: $10.44 |
| 14024B | 14024-3782-6D | COVER,HANDLE POLE LWR Price: $3.56 |
| 16031 | 16031-3705 | FLOAT Price: $10.97 |
| 39087 | 39087-3704 | PAD-HANDLE Price: $86.26 |
| 39100B | 39100-3702-8Z | POLE-COMP-HANDLE,M.M. Price: $454.06 |
| 92004 | 92004-3702 | STUD,16MM Price: $46.90 |
| 92009 | 92009-3709 | SCREW Price: $4.56 |
| 92009A | 92009-3718 | SCREW,5X10 Price: $3.98 |
| 92009B | 92009-3725 | SCREW Price: $4.58 |
| 92009C | 92009-3736 | SCREW,5X16 Price: $5.20 |
| 92015 | 92015-3742 | NUT,16MM Price: $26.97 |
| 92022 | 92022-3014 | WASHER,CLAMP Price: $4.76 |
| 92022A | 92022-3716 | WASHER Price: $13.70 |
| 92022B | 92022-3732 | WASHER Price: $3.76 |
| 92022C | 92022-571 | WASHER Price: $36.16 |
| 92027 | 92027-3702 | COLLAR,7.1X10.5X6 Price: $7.65 |
| 92028 | 92028-3708 | BUSHING Price: $8.71 |
| 92028A | 92028-3710 | BUSHING Price: $6.48 |
| 92028B | 92028-3711 | BUSHING Price: $6.12 |
| 92028C | 92028-513 | BUSHING Price: $7.58 |
| 92037 | 92037-3007 | CLAMP,LEAD WIRE Price: $7.31 |
| 92039 | 92039-3712 | RIVET Price: $4.83 |
| 92075 | 92075-3722 | DAMPER Price: $7.65 |
