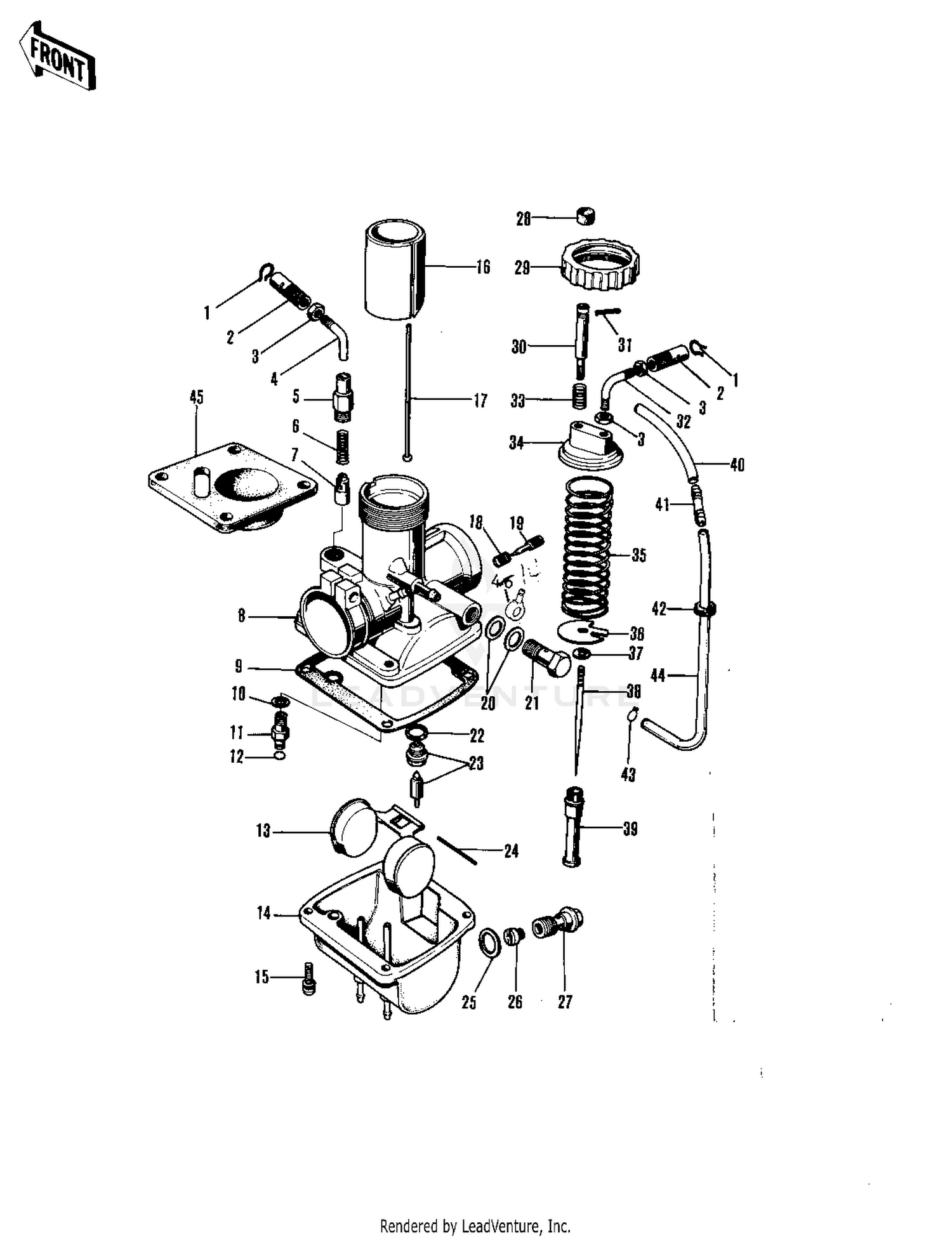

| Ref | Part Number | Description |
|---|
| 1 |
92036-018 |
RING-SNAP Price: $3.89 |
| 2 |
16002-007 |
CABLE ADJUSTER Price: $11.09 |
| 3 |
16003-004 |
NUT CABLE ADJUST LOCK Price: $7.34 |
| 4 |
16077-005 |
CABLE GUIDE Price: $5.54 |
| 5 |
16012-014 |
CAP-STARTER PLUNGER Price: $5.28 |
| 6 |
16013-003 |
SPRING-PLUNGER Price: $6.16 |
| 7 |
16016-002 |
PLUNGER-ENRICHNER Price: $31.85 |
| 9 |
16019-013 |
GASKET FLOAT CHAMBER Price: $34.41 |
| 10 |
16034-001 |
WASHER MAIN JET Price: $4.31 |
| 11 |
16065-008 |
HOLDER-NEEDLE JET Price: $22.74 |
| 12 |
92055-044 |
RING-O Price: $10.38 |
| 13 |
16031-016 |
FLOAT Price: $133.63 |
| 15 |
223AA0416 |
SCREW-PAN-WS-CROS,4X16 This part replaces 16033-009. Price: $0.68 |
| 17 |
16024-009 |
ROD-THROTTLE VLV STOP Price: $6.35 |
| 18 |
16022-007 |
SPRING,PILOT AIR SCREW Price: $8.13 |
| 19 |
16014-002 |
SCREW PILOT AIR ADJST Price: $18.22 |
| 20 |
11009-2025 |
GASKET This part replaces 751P0800. Price: $1.99 |
| 20 |
92065-078 |
GASKET-BANJO BOLT Price: $1.09 |
| 21 |
92001-014 |
BOLT BANJO Price: $13.82 |
| 22 |
16029-004 |
GASKET,FLOAT VALVE SEAT Price: $3.89 |
| 24 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
| 27 |
92001-097 |
BOLT-BANJO Price: $22.55 |
| 28 |
16037-002 |
CAP THROTTLE ADJUSTER Price: $8.19 |
| 29 |
16004-011 |
CAP MIXING CHAMBER Price: $9.15 |
| 30 |
16021-010 |
SCREW-THROTTLE STOP Price: $17.27 |
| 31 |
550AA1210 |
PIN-COTTER,1.2X10 This part replaces 550D1210. Price: $2.65 |
| 32 |
16077-001 |
CABLE GUIDE Price: $9.02 |
| 33 |
16022-008 |
SPRING-THR STOP SCREW Price: $1.77 |
| 34 |
16005-020 |
TOP MIXING CHAMBER Price: $7.26 |
| 35 |
16006-014 |
SPRING THROTTLE VALVE Price: $15.19 |
| 36 |
16007-024 |
SPRING SEAT,THRTL VL Price: $7.80 |
| 37 |
16008-010 |
CIRCLIP Price: $9.21 |
| 40 |
92059-072 |
PIPE-OIL This part replaces 92059-002. Price: $38.33 |
| 41 |
92005-003 |
NIPPLE Price: $4.19 |
| 42 |
92071-038 |
GROMMET PIPE Price: $4.74 |
| 43 |
92037-010 |
CLAMP,TUBE Price: $3.92 |
| 44 |
92059-072 |
PIPE-OIL This part replaces 92059-065. Price: $38.33 |
| 45 |
14038-027 |
CAP-CARBURETOR Price: $10.12 |
