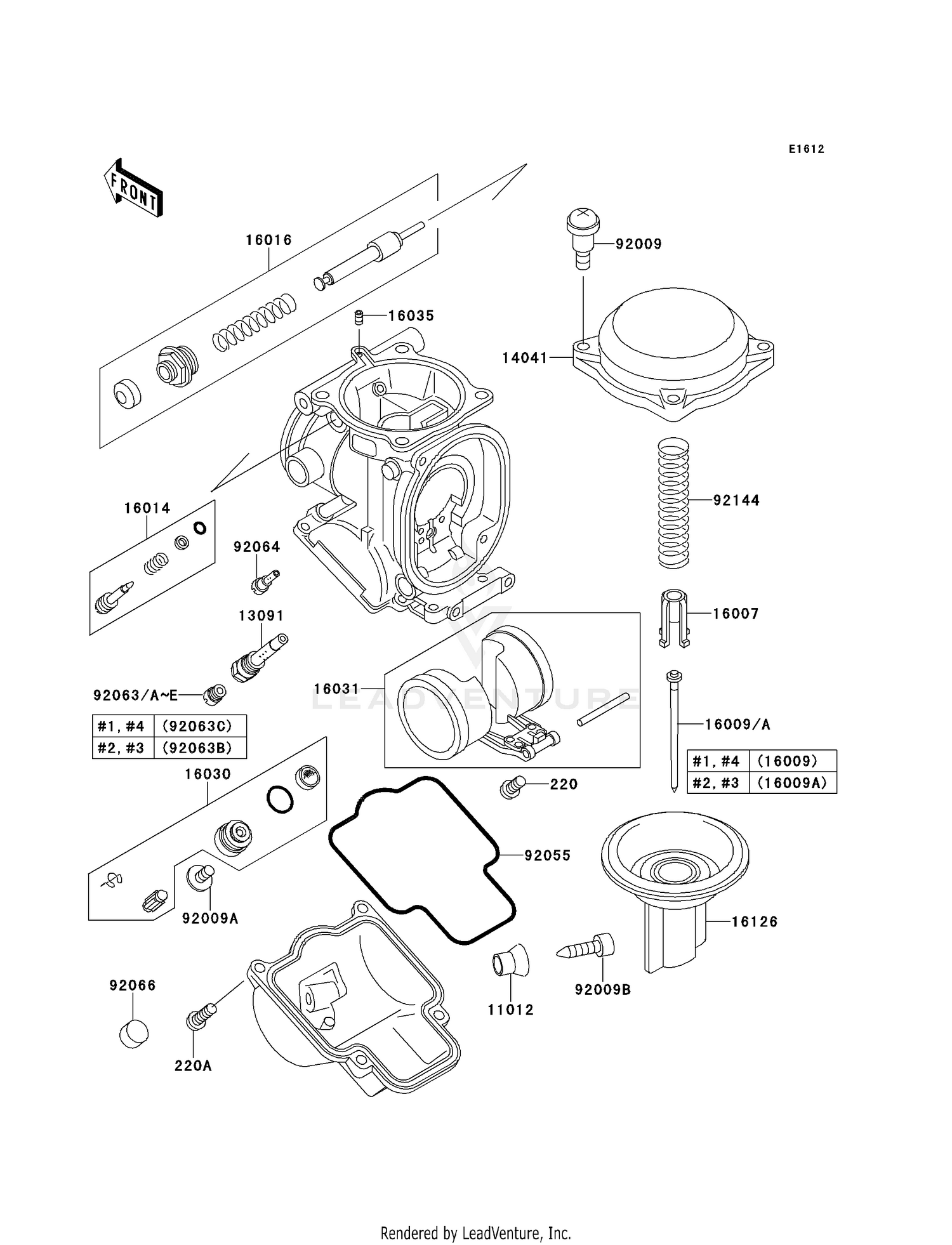

CARBURETOR PARTS

CARBURETOR PARTS

Parts (22)

RefPart NumberDescription
220 220AA0408 SCREW-PAN-CROS,4X8 This part replaces 220D0408. Price: $0.68
220A 220AA0414 SCREW-PAN-CROS This part replaces 220D0414. Price: $4.60
11012 11012-1675 CAP,DRAIN SCREW Price: $9.20
13091 13091-1698 HOLDER,NEEDLE JET Price: $39.96
14041 14041-1100 COVER-COMP,MIXING Price: $86.95
16007 16007-1117 SEAT-SPRING,VALVE Price: $25.03
16009 16009-1671 NEEDLE-JET,N96K Price: $33.17
16009A 16009-1969 NEEDLE-JET,N5AK Price: $33.17
16014 16014-1086 SCREW-PILOT AIR Price: $37.39
16016 16016-1090 PLUNGER,STARTER Price: $66.52
16030 16030-1077 VALVE-FLOAT Price: $110.73
16031 16031-1080 FLOAT Price: $59.39
16035 16035-1055 JET-AIR,LEAK Price: $15.74
16126 16126-1345 VALVE,VACUUM Price: $204.63
92009 92009-1549 SCREW,4X4.4 Price: $5.24
92009A 92009-1550 SCREW,4X8 Price: $4.38
92009B 92009-1551 SCREW,DRAIN,6X0.75 Price: $9.91
92055 92055-1426 RING-O,FLOAT CHAMBER Price: $20.99
92063B 92063-1344 JET-MAIN,#158 Price: $14.79
92063C 92063-1345 JET-MAIN,#160 Price: $14.79
92064 92064-1119 JET-PILOT,#38 Price: $19.05
92066 92066-1051 PLUG,PILOT AIR SCREW,6.9X2 Price: $5.05
