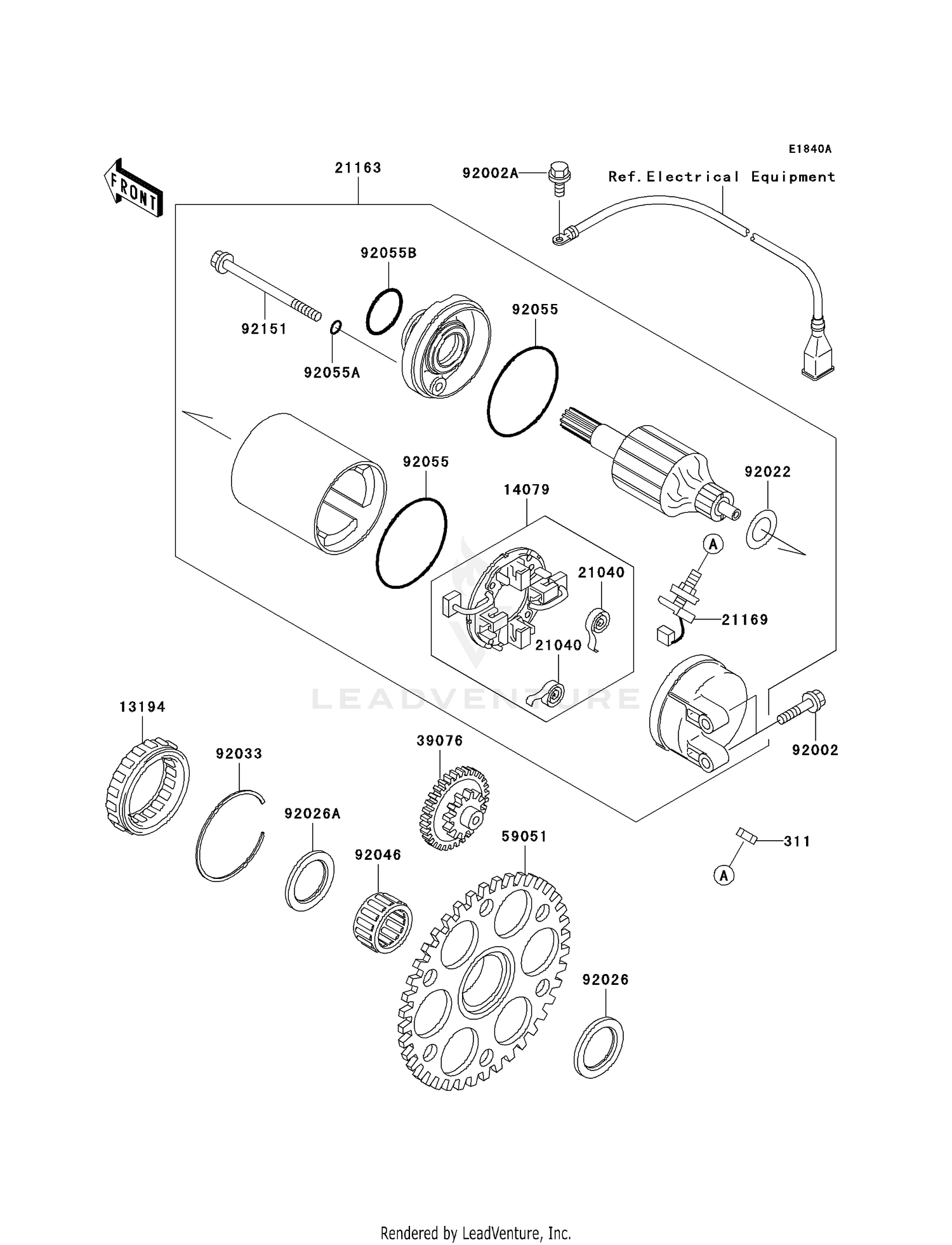

STARTER MOTOR (JH1200-A3/A4)
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 311 | 311R0600 | NUT-HEX,6MM Price: $0.70 |
| 13194 | 13194-3704 | CLUTCH-ONEWAY Price: $108.41 |
| 14079 | 14079-3725 | HOLDER-ASSY Price: $175.18 |
| 21040 | 21040-3702 | SPRING-BRUSH Price: $9.59 |
| 21163 | 21163-3719 | STARTER-ELECTRIC Price: $653.23 |
| 21169 | 21169-3701 | TERMINAL Price: $44.77 |
| 39076 | 39076-3703 | LIMITER Price: $174.46 |
| 59051 | 59051-3706 | GEAR-SPUR Price: $131.50 |
| 92002 | 92002-3714 | BOLT,6X25 Price: $5.00 |
| 92002A | 92002-3763 | BOLT,6X12 Price: $4.69 |
| 92022 | 92022-2200 | WASHER Price: $1.45 |
| 92026 | 92026-3738 | SPACER,28X38X3.0 Price: $9.53 |
| 92026A | 92026-3739 | SPACER,26.3X38X2.5 Price: $11.46 |
| 92033 | 92033-3731 | RING-SNAP Price: $6.16 |
| 92046 | 92046-3701 | BEARING-NEEDLE,KT2833 Price: $19.72 |
| 92055 | 92055-1260 | RING-O,62MM Price: $10.35 |
| 92055A | 92055-1261 | RING-O,4.5MM Price: $2.87 |
| 92055B | 92055-1262 | RING-O,24.4MM Price: $12.46 |
