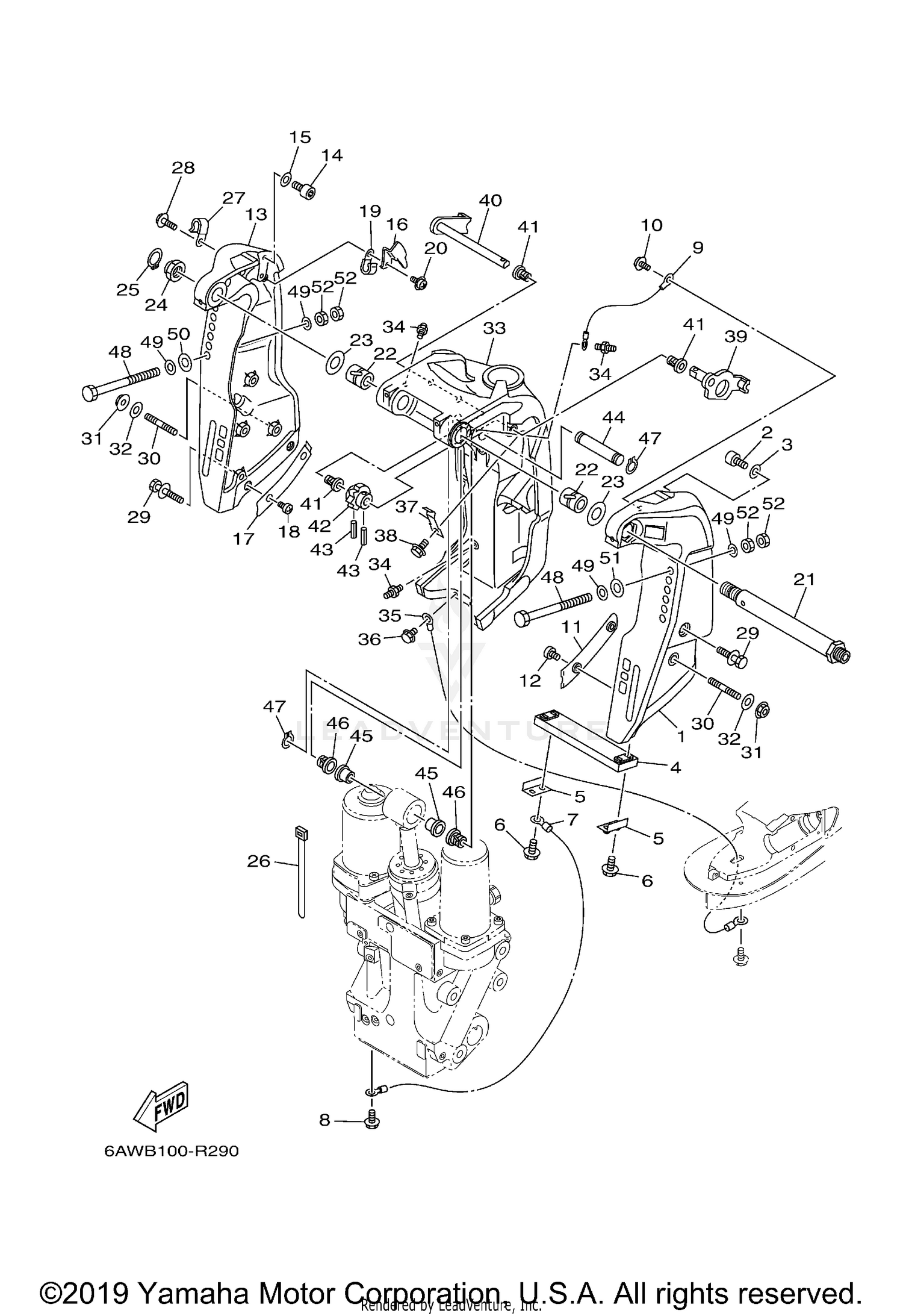

| Ref | Part Number | Description |
|---|
| 1 |
6AW-43111-00-8D |
BRACKET, CLAMP 1 Price: $831.20 |
| 2 |
91314-10020-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 3 |
90201-10049-00 |
WASHER, PLATE Price: $1.90 |
| 4 |
6AW-45251-00-00 |
ANODE Price: $32.60 |
| 5 |
6G5-44526-00-00 |
PLATE Price: $9.10 |
| 6 |
97E95-06530-00 |
BOLT, HEXAGON W/W Price: $1.10 |
| 7 |
6T4-82117-00-00 |
WIRE, LEAD This part replaces 6H1-82148-00-00. Price: $17.90 |
| 8 |
97E95-06510-00 |
BOLT, HEXAGON W/W Price: $0.80 |
| 9 |
6T4-82117-00-00 |
WIRE, LEAD This part replaces 6H1-82148-00-00. Price: $17.90 |
| 10 |
97885-06012-00 |
SCREW, PAN HEAD This part replaces 97985-06212-00. Price: $3.35 |
| 11 |
61A-43132-01-00 |
WASHER, FRICTION This part replaces 61A-43132-00-00. Price: $28.55 |
| 12 |
97985-06210-00 |
SCREW, WITH WASHER This part replaces 97885-06010-00. Price: $3.20 |
| 13 |
6AW-43112-00-8D |
BRACKET, CLAMP 2 Price: $760.85 |
| 14 |
91314-10020-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 15 |
90201-10049-00 |
WASHER, PLATE Price: $1.90 |
| 16 |
6AW-43113-00-00 |
PLATE, CLAMP BRACKET Price: $17.75 |
| 17 |
61A-43133-01-00 |
WASHER,FRICTION This part replaces 61A-43133-00-00. Price: $28.55 |
| 18 |
97985-06210-00 |
SCREW, WITH WASHER This part replaces 97885-06010-00. Price: $3.20 |
| 19 |
90465-08M83-00 |
CLAMP Price: $7.70 |
| 20 |
97885-06012-00 |
SCREW, PAN HEAD This part replaces 97985-06212-00. Price: $3.35 |
| 21 |
6R3-43131-11-00 |
BOLT, CLAMP BRACKET This part replaces 6R3-43131-10-00. Price: $311.45 |
| 22 |
90386-25003-00 |
BUSH Price: $10.40 |
| 23 |
90201-26014-00 |
WASHER, PLATE Price: $13.60 |
| 24 |
90185-22007-00 |
NUT, SELF-LOCKING Price: $23.95 |
| 25 |
93410-21089-00 |
CIRCLIP Price: $3.55 |
| 26 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 27 |
90465-08M83-00 |
CLAMP Price: $7.70 |
| 28 |
97E95-06514-00 |
BOLT, HEXAGON W/W Price: $1.25 |
| 29 |
90119-10039-00 |
BOLT, WITH WASHER Price: $7.90 |
| 30 |
90116-10047-00 |
BOLT, STUD Price: $30.10 |
| 31 |
95780-10300-00 |
NUT, FLANGE Price: $13.00 |
| 32 |
90201-10048-00 |
WASHER, PLATE Price: $2.70 |
| 33 |
6AW-43311-00-8D |
BRACKET, SWIVEL 1 Price: $1,068.25 |
| 34 |
93700-06002-00 |
NIPPLE, GREASE Price: $8.55 |
| 35 |
6E5-82147-00-00 |
WIRE, LEAD 5 Price: $10.70 |
| 36 |
97E95-06510-00 |
BOLT, HEXAGON W/W Price: $0.80 |
| 37 |
6AW-44116-00-00 |
SPRING Price: $15.65 |
| 38 |
97E95-06510-00 |
BOLT, HEXAGON W/W Price: $0.80 |
| 39 |
6AW-43181-01-00 |
LEVER, TILT STOP 1 Price: $134.75 |
| 40 |
6AW-43185-01-00 |
LEVER, TILT STOP 2 Price: $130.40 |
| 41 |
90386-10M16-00 |
BUSH Price: $5.55 |
| 42 |
6AW-43148-00-00 |
COLLAR, DISTANCE Price: $11.10 |
| 43 |
91690-30020-00 |
PIN, SPRING Price: $3.55 |
| 44 |
6AW-43126-01-00 |
PIN, UPPER SHOCK MOUNT Price: $127.55 |
| 45 |
90386-18M63-00 |
BUSH Price: $10.10 |
| 46 |
90386-18M14-00 |
BUSH Price: $10.40 |
| 47 |
93410-18M05-00 |
CIRCLIP Price: $5.65 |
| 48 |
90101-12067-00 |
BOLT (150MM) This part replaces 90101-12031-00. Price: $33.50 |
| 49 |
90201-12060-00 |
WASHER, PLATE Price: $6.60 |
| 50 |
90201-12426-00 |
WASHER, PLATE Price: $2.25 |
| 51 |
90201-13M19-00 |
WASHER, PLATE Price: $7.80 |
