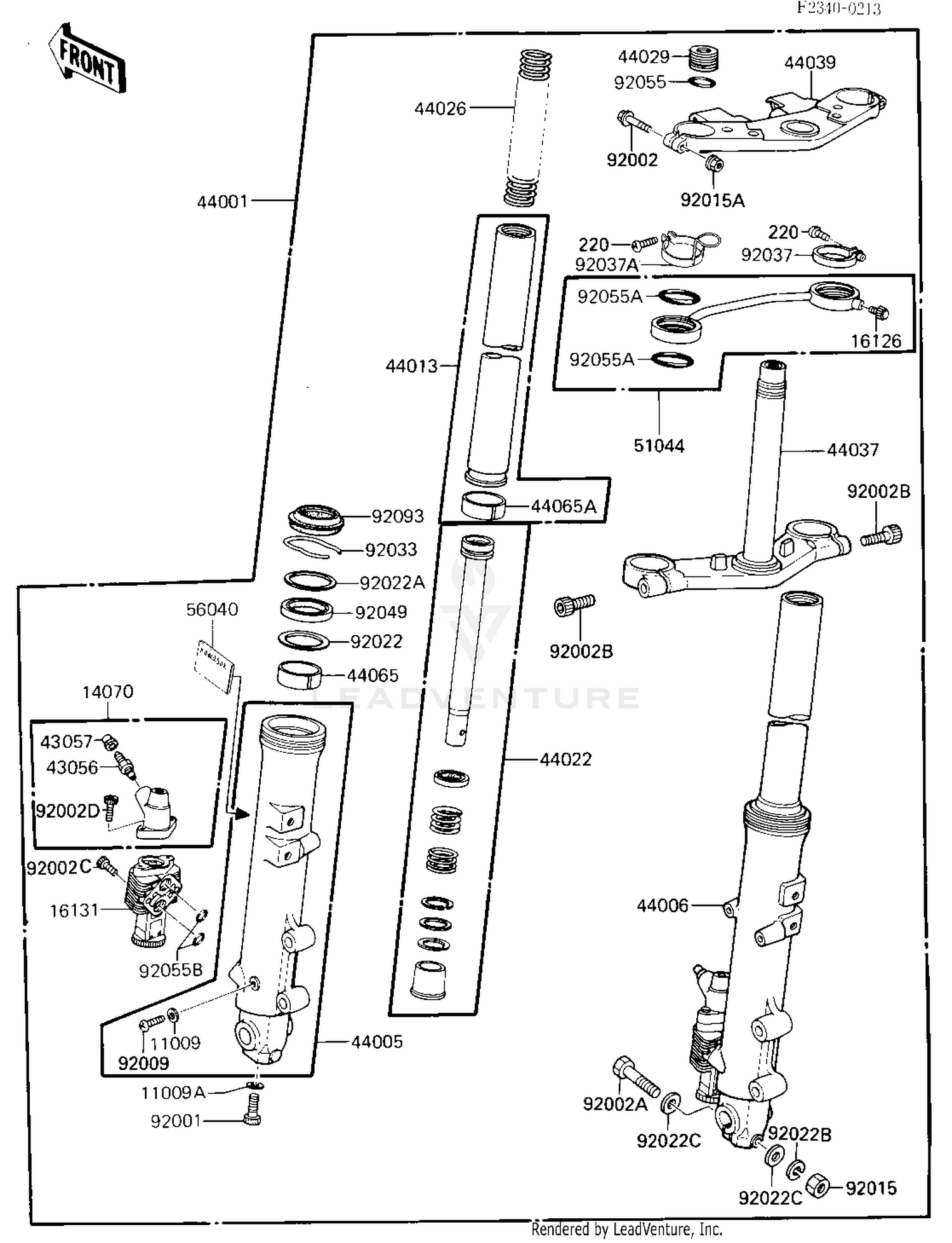

| Ref | Part Number | Description |
|---|
| 11009 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 11009A |
44045-057 |
GASKET,FORK CYLINDER Price: $4.86 |
| 14070 |
14070-1055 |
BODY-BREATHER,FORK Price: $261.63 |
| 16126 |
16126-1052 |
VALVE AIR Price: $35.06 |
| 16131 |
16131-1063 |
BODY-VALVE,FORK,ANTI- This part replaces 16131-1054. Price: $214.00 |
| 43056 |
43085-001 |
BLEEDER SET This part replaces 43056-003. Price: $24.57 |
| 43057 |
43057-003 |
CAP-BREATHER Price: $2.45 |
| 44001 |
44001-1504 |
FORK-FRONT Price: $1,351.54 |
| 44005 |
44005-1130 |
PIPE-LEFT FORK OUTER Price: $282.74 |
| 44006 |
44006-1130 |
PIPE-RIGHT FORK OUTER Price: $454.65 |
| 44013 |
44013-1208 |
PIPE-FORK INNER Price: $392.23 |
| 44022 |
44022-1157 |
CYLINDER-FORK Price: $86.45 |
| 44026 |
44026-1263 |
SPRING-FRONT FORK Price: $54.10 |
| 44029 |
44029-1035 |
SEAT-FORK SPRING Price: $24.81 |
| 44037 |
44037-1154 |
HOLDER-FORK UNDER Price: $220.11 |
| 44039 |
44039-1073 |
HOLDER-FORK UPPER Price: $317.69 |
| 44065 |
44065-1084 |
BUSHING-FRONT FORK This part replaces 44065-1051. Price: $23.16 |
| 44065A |
44065-1058 |
BUSHING-FRONT FORK Price: $35.46 |
| 51044 |
51044-1027 |
TUBE-ASSY,AIR,FORK Price: $105.16 |
| 56040 |
56040-1117 |
LABEL-WARNING,SHOCKAB This part replaces 56040-1030. Price: $5.06 |
| 92001 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 92002 |
92002-1158 |
BOLT,FLANGED,8X55 Price: $9.23 |
| 92002A |
92002-1163 |
BOLT,8X60 Price: $9.03 |
| 92002B |
92002-1164 |
BOLT,SOCKET,12X30 Price: $13.49 |
| 92002B |
92002-1552 |
BOLT,THROTTLE STOP SC Price: $16.69 |
| 92002C |
92002-1166 |
BOLT,SOCKET,6X16 Price: $7.21 |
| 92002C |
92022-1554 |
WASHER,PLAIN,8MM Price: $4.86 |
| 92002D |
92002-1289 |
BOLT,SOCKET,5X12 Price: $5.48 |
| 92009 |
220AA0406 |
SCREW-PAN CROS,4X6 This part replaces 92009-1324. Price: $1.67 |
| 92015 |
92015-1400 |
NUT,8MM Price: $5.46 |
| 92015A |
92210-0004 |
NUT,FLANGED,8MM This part replaces 92015-1408. Price: $5.38 |
| 92022 |
92022-1455 |
WASHER,FORK OUTER PIP Price: $7.69 |
| 92022A |
92022-1524 |
WASHER,FORK OUTER PIP Price: $7.33 |
| 92033 |
92033-1047 |
RING-SNAP,FORK Price: $6.46 |
| 92037 |
92037-1454 |
CLAMP,FRONT FORK Price: $14.05 |
| 92037A |
92037-1499 |
CLAMP,LH Price: $32.19 |
| 92049 |
92049-1435 |
SEAL-OIL,FORK OUTERTB This part replaces 92049-1372. Price: $23.82 |
| 92055 |
92055-1132 |
RING-O,FORK SPRING SE Price: $6.56 |
| 92055A |
92055-1164 |
RING-O,TUBE ASSY Price: $10.05 |
| 92055B |
670B2012 |
O RING,12MM This part replaces 92055-1201. Price: $3.23 |
| 92093 |
92093-1382 |
SEAL,FORK OUTER TUBE This part replaces 92093-1314. Price: $25.96 |
