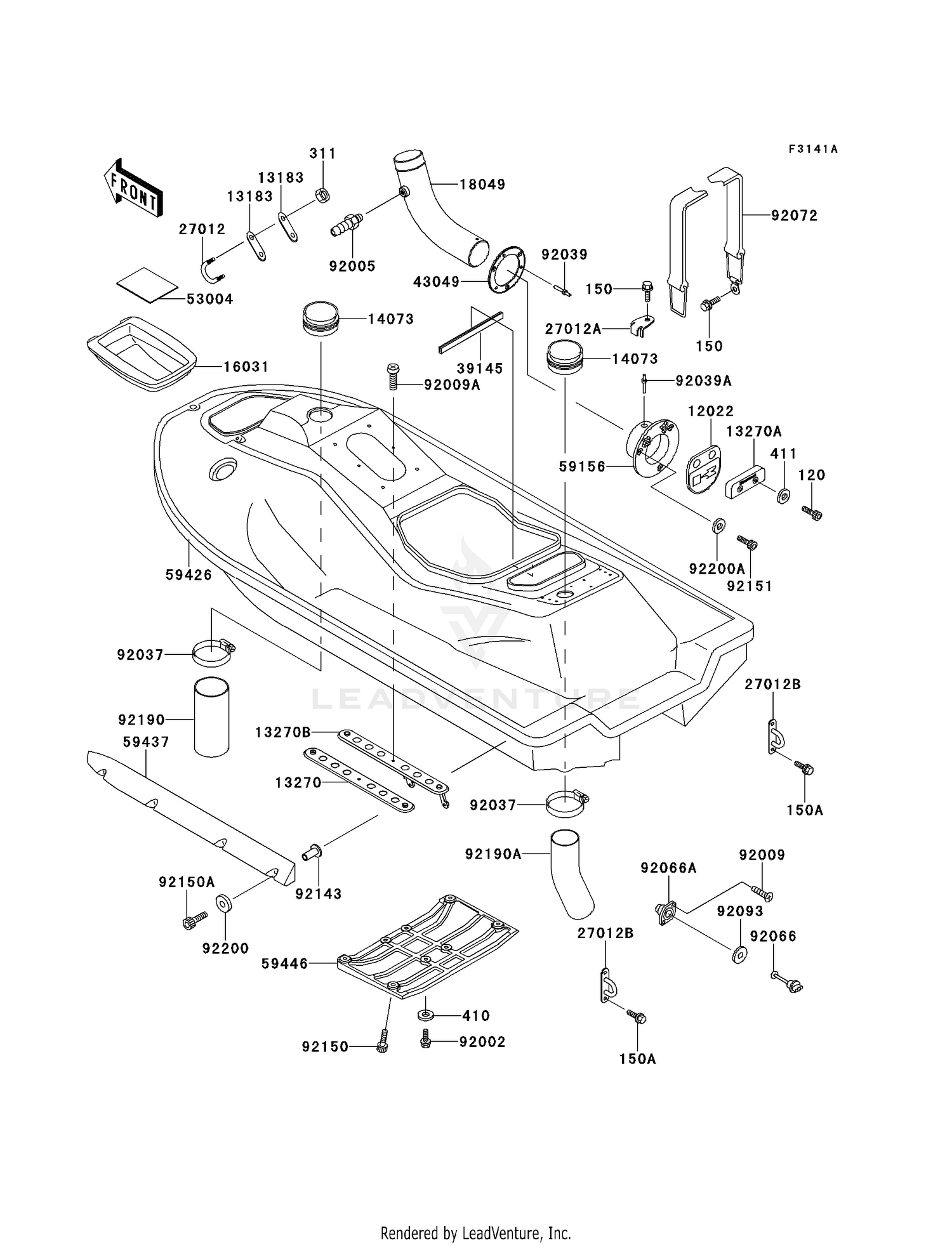

| Ref | Part Number | Description |
|---|
| 120 |
120R0616 |
BOLT-SOCKET Price: $3.65 |
| 150 |
150R0614 |
BOLT-WS,6X14 Price: $5.96 |
| 150A |
150R0618 |
BOLT-WS,6X18 Price: $4.67 |
| 311 |
311R0600 |
NUT-HEX,6MM Price: $0.70 |
| 410 |
410S0600 |
WASHER-PLAIN-SMALL,6MM Price: $0.78 |
| 12022 |
12022-3706 |
VALVE-REED Price: $31.76 |
| 13183 |
13183-3809 |
PLATE Price: $7.34 |
| 13270 |
13271-3803 |
PLATE,HANDLE POLE BRA This part replaces 13270-3776. Price: $19.16 |
| 13270A |
13270-3785 |
PLATE Price: $8.16 |
| 13270B |
13271-3805 |
PLATE,HANDLE POLE BRA This part replaces 13270-3844. Price: $33.71 |
| 14073 |
14073-3750 |
DUCT,AIR INTAKE Price: $17.99 |
| 16031 |
16031-3901 |
FLOAT,TANK This part replaces 16031-3837. Price: $115.41 |
| 18049 |
18049-3751 |
PIPE-EXHAUST Price: $68.37 |
| 27012 |
27012-3776 |
HOOK Price: $38.41 |
| 27012A |
27012-3777 |
HOOK,WATER MUFFLER Price: $6.56 |
| 27012B |
27012-3782 |
HOOK,REAR Price: $12.43 |
| 39145 |
39145-3750 |
TRIM-SEAL,L=480 Price: $16.05 |
| 43049 |
43049-3711 |
PACKING Price: $10.86 |
| 53004 |
53004-3773 |
MAT Price: $78.58 |
| 59156 |
59156-3714 |
PIPE-TAIL Price: $29.70 |
| 59437 |
59437-3708-6L |
STABILIZER,F.RED Price: $189.68 |
| 59446 |
59446-3728-23 |
COVER-JET PUMP,VIOLET Price: $115.11 |
| 92002 |
92002-3755 |
BOLT,6X20 Price: $4.69 |
| 92005 |
92005-3712 |
FITTING,HOSE Price: $10.88 |
| 92009 |
92009-3755 |
SCREW Price: $2.55 |
| 92009A |
92009-3789 |
SCREW,5X16 Price: $2.97 |
| 92037 |
92171-3716 |
CLAMP This part replaces 92037-541. Price: $10.24 |
| 92039 |
92039-3703 |
RIVET Price: $4.69 |
| 92039A |
92039-3719 |
RIVET,4.8MM Price: $6.22 |
| 92066 |
92066-3783-8U |
PLUG,RR,DRAIN,J.WHITE This part replaces 92066-3744. Price: $20.70 |
| 92066A |
92066-3749 |
PLUG, DRAIN Price: $9.53 |
| 92072 |
92072-3781 |
BAND,WATER MUFFLER Price: $14.36 |
| 92093 |
92093-3720 |
SEAL Price: $3.62 |
| 92143 |
92143-3739 |
COLLAR Price: $8.01 |
| 92150 |
92150-3775 |
BOLT,SOCKET,6X18 Price: $4.69 |
| 92150A |
92150-3847 |
BOLT,SOCKET,6X40 Price: $5.59 |
| 92151 |
92151-3709 |
BOLT,SOCKET,5X25 Price: $2.67 |
| 92190 |
92190-3962 |
TUBE Price: $31.85 |
| 92190A |
92190-3963 |
TUBE Price: $80.00 |
| 92200 |
92200-3712 |
WASHER,6.5X16X1.0 Price: $3.73 |
| 92200A |
92200-3748 |
WASHER Price: $5.96 |
