| Ref | Part Number | Description |
|---|
| 1 |
205562044 |
Socket Head Screw M6 X 20, Scotch Grip Price: $2.19 |
| 2 |
205862044 |
Socket Head Screw M6 X 20, Scotch Grip Price: $4.19 |
| 3 |
207089044 |
Hex. Screw M8 X 90 Price: $3.59 |
| 4 |
207503046 |
Hex. Flange Screw M10 X 30, Scotch Grip Price: $2.99 |
| 5 |
207562544 |
Hex. Flange Screw M6 X 25 Price: $1.69 |
| 6 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 8 |
232006414 |
Hex. Nut M10 X 1.5 Price: $1.39 |
| 9 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 11 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 12 |
250000340 |
SOCKET HEAD SCREW M8 X 25, SCOTCH GRIP - Call your local BRP dealership Price: $8.29 |
| 13 |
250000360 |
Hex. Flange Screw M6 X 1.0 X 30 Price: $2.19 |
| 14 |
250200100 |
Bonded Washer Price: $2.19 |
| 16 |
250400010 |
Rolled Pin M3 X 10 Price: $1.99 |
| 17 |
250400045 |
Spring Pin M5 X 16 Price: $4.69 |
| 18 |
250400048 |
Dowel Pin Price: $2.19 |
| 19 |
250500013 |
Hex. Countersunk Drain Plug This part replaces 250500012. Price: $8.09 |
| 20 |
293200168 |
Oil Seal This part replaces 293250175. Price: $14.99 |
| 21 |
293300122 |
O-Ring Price: $2.19 |
| 22 |
293300130 |
Tight Seal Price: $7.69 |
| 23 |
293300134 |
O-Ring Price: $2.39 |
| 25 |
293350115 |
Ball Bearing This part replaces 293350055. Price: $12.11 |
| 26 |
293350059 |
Ball Bearing Price: $30.99 |
| 27 |
293350063 |
Needle Bearing Price: $23.99 |
| 28 |
293350064 |
Needle Bearing Price: $23.49 |
| 29 |
293350074 |
Ball Bearing Price: $38.49 |
| 31 |
293370054 |
Circlip Price: $8.29 |
| 32 |
293370055 |
Circlip Price: $8.29 |
| 35 |
293710035 |
Straight Fitting Price: $9.09 |
| 36 |
414115200 |
Tie-Rap 180 mm Price: $0.11 |
| 45 |
414484400 |
O-Ring Price: $7.69 |
| 46 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 47 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 48 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 49 |
504077300 |
Spacer Price: $7.09 |
| 50 |
504078700 |
Ring Price: $21.99 |
| 51 |
504082900 |
Washer Price: $2.69 |
| 52 |
504083100 |
Reverse Shaft Price: $46.99 |
| 53 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 56 |
504152282 |
Circlip Price: $3.29 |
| 57 |
293200159 |
Oil Seal This part replaces 504152571. Price: $16.49 |
| 58 |
504152572 |
Circlip Price: $7.09 |
| 59 |
504152576 |
Circlip Price: $10.99 |
| 60 |
861805540 |
Kit Sprocket This part replaces 504152971. Price: $164.99 |
| 61 |
504152582 |
Circlip Price: $10.99 |
| 62 |
504152602 |
Adjustment Screw Price: $12.99 |
| 63 |
504152619 |
Magnetic Cap Price: $24.49 |
| 64 |
504152619 |
Magnetic Cap Price: $24.49 |
| 67 |
504152630 |
Drive Chain, 106 Links Price: $184.99 |
| 69 |
504152636 |
Magnetic Plug 1/8 - 27 NPTF Price: $11.99 |
| 71 |
504152689 |
Washer Price: $7.79 |
| 72 |
504152710 |
Double Ball Joint Price: $51.99 |
| 73 |
504152724 |
Sprocket, 29 Teeth Price: $184.99 |
| 75 |
504153431 |
Chaine Tensionner This part replaces 504152748. Price: $16.49 |
| 76 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 78 |
504153427 |
Lever This part replaces 504152788. Price: $31.99 |
| 81 |
504152841 |
Tensioner Axle Price: $16.99 |
| 82 |
504152930 |
Cap Price: $29.99 |
| 83 |
504152862 |
Washer Price: $10.99 |
| 87 |
504152896 |
Rotation Sensor Price: $38.99 |
| 89 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 92 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 94 |
504153886 |
Retaining Ring This part replaces 504152949. Price: $21.99 |
| 95 |
504152951 |
Ball Joint Price: $46.49 |
| 96 |
504153432 |
Fork Ass'y This part replaces 504152954. Price: $38.99 |
| 97 |
504152956 |
Welded Axle Fork Price: $31.99 |
| 98 |
504152960 |
Slinding Gear, 27 Teeth Price: $109.99 |
| 99 |
504152927 |
Sprocket, 21 Teeth Price: $134.99 |
| 101 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 102 |
504152979 |
Coupling Price: $75.99 |
| 103 |
504152739 |
Slider Chain Price: $67.99 |
| 104 |
504153074 |
Tube Protector Price: $14.99 |
| 105 |
504153082 |
Grip Price: $34.99 |
| 106 |
Not |
Available As Spare Part - Sprocket, 7 Teeth |
| 107 |
Not |
Available As Spare Part - Sprocket, 7 Teeth |
| 108 |
504153122 |
Chain Slider Price: $16.99 |
| 109 |
504153144 |
Chaincase Cover Ass'y Price: $369.99 |
| 114 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 116 |
504153179 |
Spring Release Price: $11.99 |
| 118 |
504153184 |
Chaincase Price: $359.99 |
| 120 |
504153187 |
Bearing Housing Price: $31.99 |
| 124 |
504154054 |
Drive Axle Ass'y This part replaces 504153083. Price: $529.99 |
| 125 |
504153265 |
AXLE_DRIVE ASSY - Call your local BRP dealership Price: $589.99 |
| 130 |
130BA0622 |
BOLT-FLANGED,6X22 Price: $1.29 |
| 132 |
219704410 |
Polyurethane Hose 10000Mm Long Price: $57.99 |
| 135 |
570048600 |
Alignement Rod Price: $16.49 |
| 136 |
581096900 |
Sprock Ass'y, 19 Teeth Price: $114.99 |
| 140 |
504153000 |
Countershaft Price: $593.49 |
| 141 |
235381646 |
Torx Screw M8 X 16, Scotch Grip Price: $2.59 |
| 142 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 143 |
504154391 |
Track 16 X 154 X 1,5 This part replaces 504152761. Price: $1,219.99 |
| 150 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 11056 |
11056-7316 |
BRACKET Price: $6.24 |

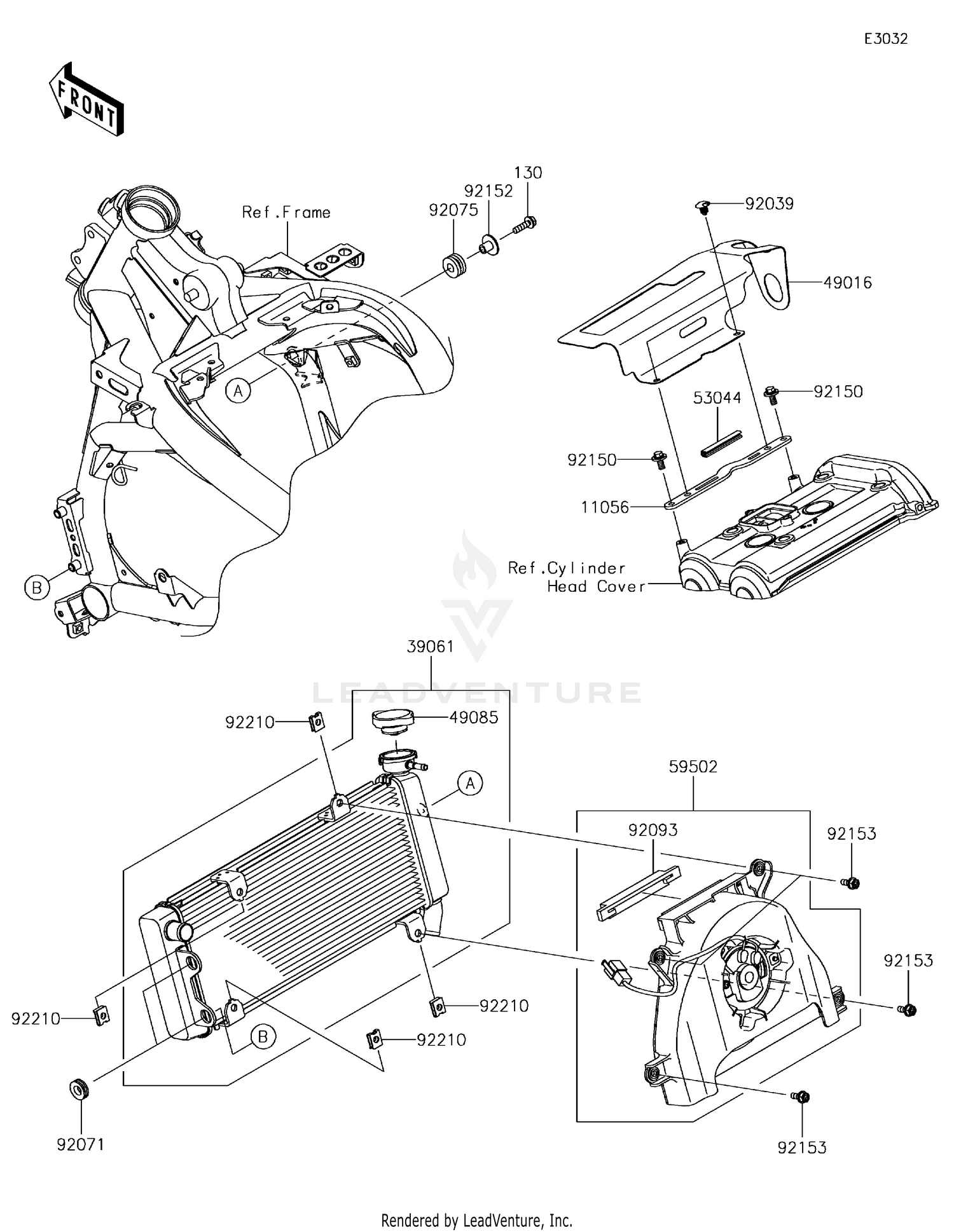

| 39061 |
39061-0712 |
RADIATOR-ASSY Price: $861.42 |
| 49016 |
49016-0632 |
COVER-SEAL Price: $26.85 |
| 49085 |
49085-0006 |
CAP-ASSY-PRESSURE Price: $50.52 |
| 53044 |
53044-0565 |
TRIM Price: $3.35 |
| 59502 |
59502-0603 |
FAN-ASSY Price: $352.61 |
| 92039 |
92039-0722 |
RIVET Price: $1.63 |
| 92071 |
92071-1115 |
GROMMET Price: $5.46 |
| 92075 |
92075-1690 |
DAMPER,10X24X12 Price: $5.00 |
| 92093 |
92093-0636 |
SEAL Price: $7.64 |
| 92150 |
92150-1689 |
BOLT,FLANGED,6X14 Price: $3.94 |
| 92152 |
92152-0910 |
COLLAR,6.5X10X13.1 Price: $1.63 |
| 92153 |
92153-0531 |
BOLT Price: $2.61 |
