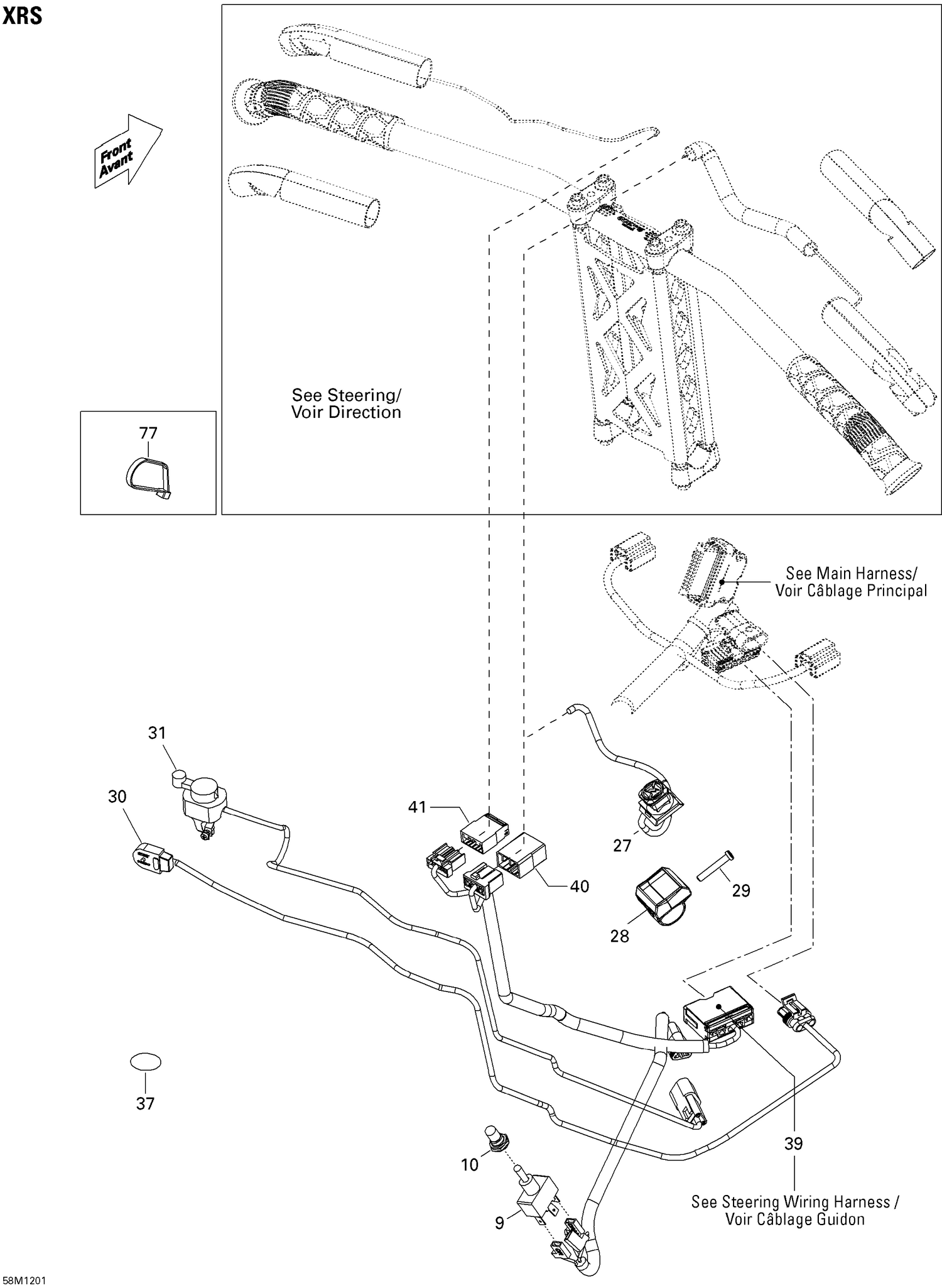

| Ref | Part Number | Description |
|---|
| 9 |
410107300 |
Switch (Heating Grip) Price: $36.99 |
| 10 |
515175281 |
Switch Cover Price: $16.49 |
| 27 |
515177362 |
Emergency Stop Switch This part replaces 515177061. Price: $88.99 |
| 28 |
515177310 |
Emergency Stop Switch Support This part replaces 515176825. Price: $9.39 |
| 29 |
250000263 |
Torx Screw #8-18 Price: $1.09 |
| 30 |
515176987 |
SWITCH - Call your local BRP dealership Price: $56.99 |
| 31 |
515177433 |
DIMMER SWITCH - Call your local BRP dealership This part replaces 515176997. Price: $54.99 |
| 37 |
518325560 |
Adhesive Patch Price: $4.69 |
| 39 |
515176984 |
STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership Price: $78.99 |
| 40 |
515175817 |
Male Terminal Housing, 8 Circuits Price: $8.99 |
| 41 |
515175662 |
Male Terminal Housing, 6 Circuits Price: $8.99 |
| 77 |
293750002 |
Tie Wrap 142 mm Price: $1.25 |
| 77 |
293750008 |
Tie Wrap 368 mm Price: $1.04 |
| 77 |
414115200 |
Tie-Rap 180 mm Price: $0.11 |
