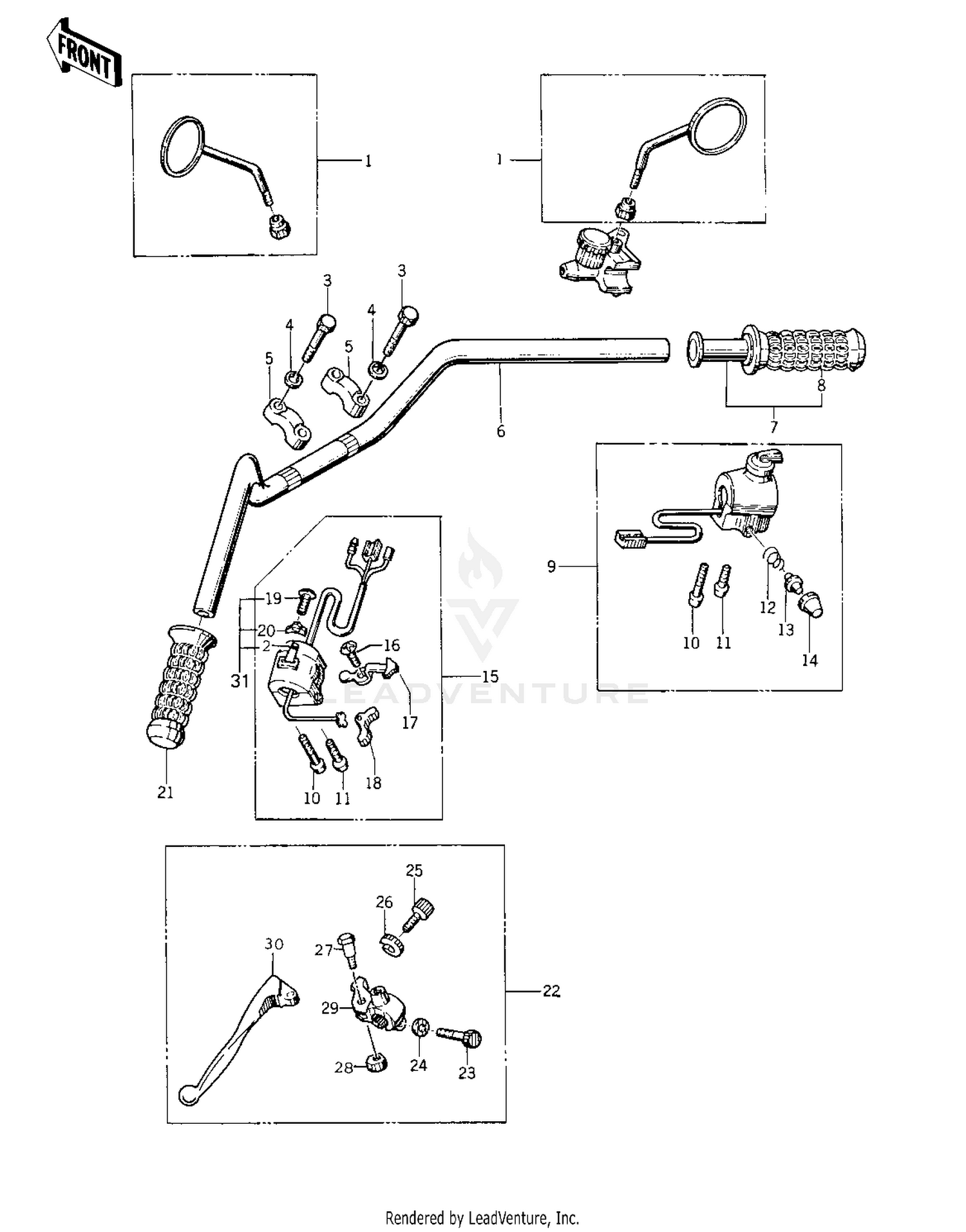

| Ref | Part Number | Description |
|---|
| 1 |
56001-5008 |
MIRROR-ASSY,LH&RH Price: $127.88 |
| 2 |
46089-014 |
SWITCH,L.H Price: $21.63 |
| 3 |
92001-1405 |
BOLT 8X38 Price: $16.50 |
| 4 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 5 |
46012-008 |
HOLDER-HANDLEBAR Price: $37.74 |
| 6 |
46003-034 |
HANDLEBAR Price: $115.35 |
| 7 |
46019-038 |
GRIP ASSY,THROTTLE Price: $118.44 |
| 8 |
46061-018 |
RUBBER,R.H GRIP Price: $14.69 |
| 9 |
46091-1039 |
HOUSING ASSY,R.H Price: $123.20 |
| 10 |
220AA0535 |
SCREW-PAN-CROS This part replaces 220B0535. Price: $3.70 |
| 11 |
220AA0530 |
SCREW-PAN-CROS This part replaces 220B0530. Price: $3.70 |
| 12 |
27010-1009 |
SWITCH ASSY,HORN BUTN Price: $9.20 |
| 13 |
27010-1009 |
SWITCH ASSY,HORN BUTN Price: $9.20 |
| 14 |
27010-1009 |
SWITCH ASSY,HORN BUTN Price: $9.20 |
| 15 |
46091-1079 |
HOUSING ASSY,CONT,L.H Price: $217.23 |
| 16 |
221B0308A |
SCREW CNTSNK HD 3X8 Price: $5.98 |
| 17 |
46043-005 |
KNOB,LIGHTING SW L.H Price: $12.53 |
| 18 |
46028-006 |
BUTTON, HORN PUSH Price: $29.74 |
| 19 |
92009-1123 |
SCREW,3X5 This part replaces 220B0305A. Price: $0.59 |
| 20 |
46044-013 |
KNOB,LIGHTING SW L.H Price: $12.37 |
| 21 |
46075-028 |
RUBBER,L.H GRIP Price: $39.98 |
| 22 |
46076-054 |
LEVER ASSY,CLUTCH This part replaces 46076-052. Price: $102.73 |
| 23 |
112BA0622 |
BOLT-UPSET This part replaces 112B0622. Price: $3.74 |
| 24 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 25 |
46055-003 |
SCREW,CABLE ADJUST,8MM Price: $16.33 |
| 25 |
92009-1022 |
SCREW,CABLE ADJUSTER Price: $8.19 |
| 26 |
46056-007 |
NUT,CABLE ADUST NUT Price: $14.26 |
| 27 |
92007-047 |
BOLT,HEX HEAD Price: $13.77 |
| 29 |
46094-017 |
HOLDER,CLUTCH LEVER Price: $40.17 |
| 30 |
46092-023 |
LEVER,CLUTCH Price: $35.96 |
