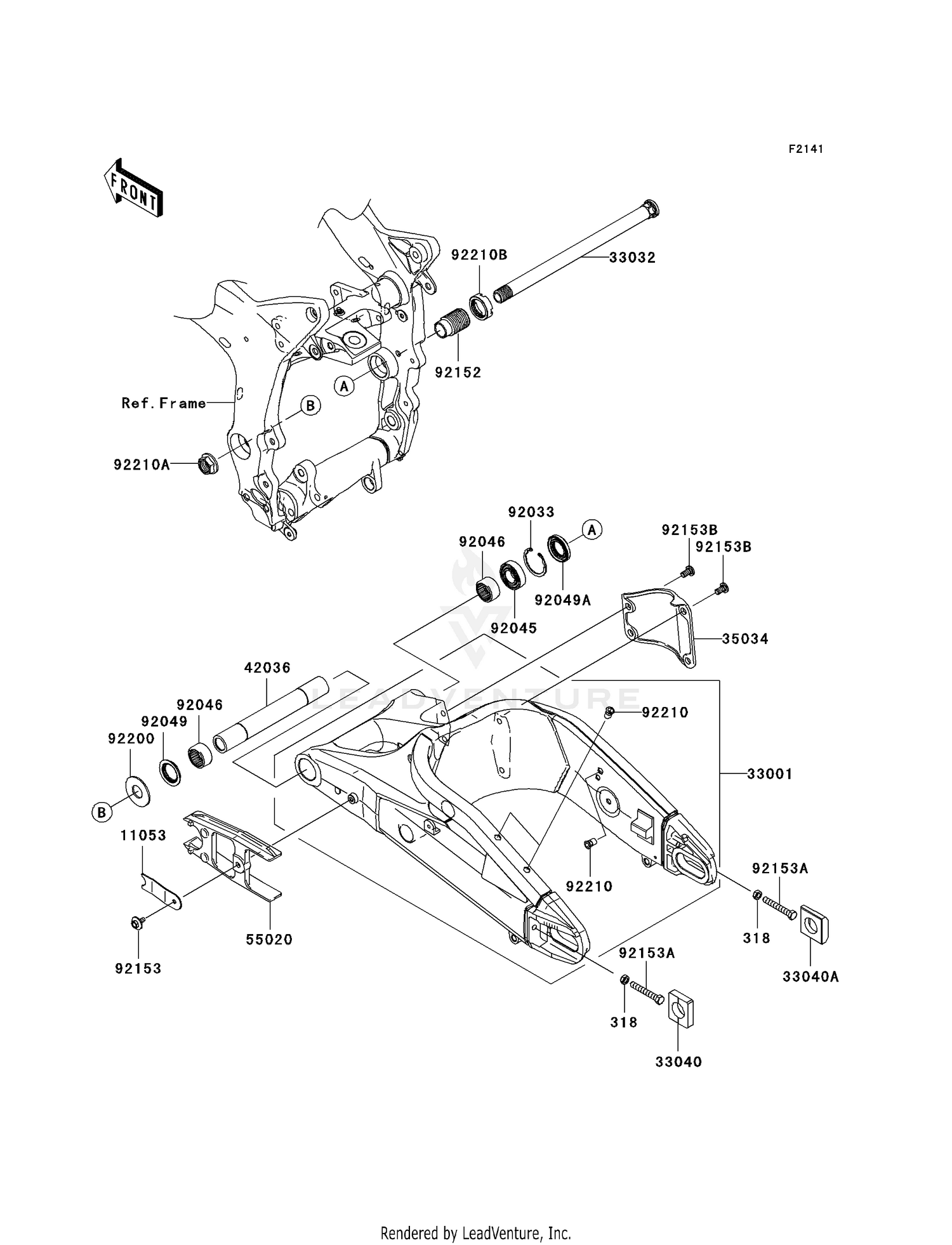

| Ref | Part Number | Description |
|---|
| 318 |
318BA0800 |
NUT-HEX-SMALL,8MM Price: $1.34 |
| 11053 |
11053-1691 |
BRACKET,CHAIN GUARD Price: $6.81 |
| 33001 |
33001-0126-18R |
ARM-COMP-SWING,BLACK Price: $1,092.41 |
| 33032 |
33032-0010 |
SHAFT-SWING ARM Price: $103.95 |
| 33040 |
33040-1114 |
ADJUSTER-CHAIN,RH Price: $19.28 |
| 33040A |
33040-1180 |
ADJUSTER-CHAIN,RH Price: $31.75 |
| 35034 |
35034-0053-18R |
REINFORCE,MUFFLER GUA Price: $54.35 |
| 42036 |
42036-1283 |
SLEEVE,SWING ARM,L=21 Price: $93.26 |
| 55020 |
55020-0111 |
GUARD,CHAIN Price: $67.82 |
| 92033 |
92033-1041 |
RING-SNAP,42MM Price: $6.16 |
| 92045 |
92045-0017 |
BEARING-BALL,6004UL11 Price: $14.39 |
| 92046 |
92046-0008 |
BEARING-NEEDLE,7E-HVS 28X34X17 Price: $21.54 |
| 92049 |
92049-1181 |
SEAL-OIL,28X34X5.7 Price: $9.28 |
| 92049A |
92049-1314 |
SEAL-OIL,MHSA25X42X6 Price: $13.75 |
| 92152 |
92152-2980 |
COLLAR,SWING ARM,L=47 This part replaces 92152-0154. Price: $37.14 |
| 92153 |
92153-1003 |
BOLT,6X16 Price: $2.88 |
| 92153A |
92153-1407 |
BOLT,8X55 Price: $2.15 |
| 92153B |
92153-1548 |
BOLT,SOCKET,8X15 Price: $3.94 |
| 92200 |
92200-1167 |
WASHER,20.3X46X2.3 Price: $12.76 |
| 92210 |
92210-0099 |
NUT,6MM Price: $5.57 |
| 92210A |
92210-0320 |
NUT,FLANGED,20MM This part replaces 92210-0106. Price: $11.93 |
