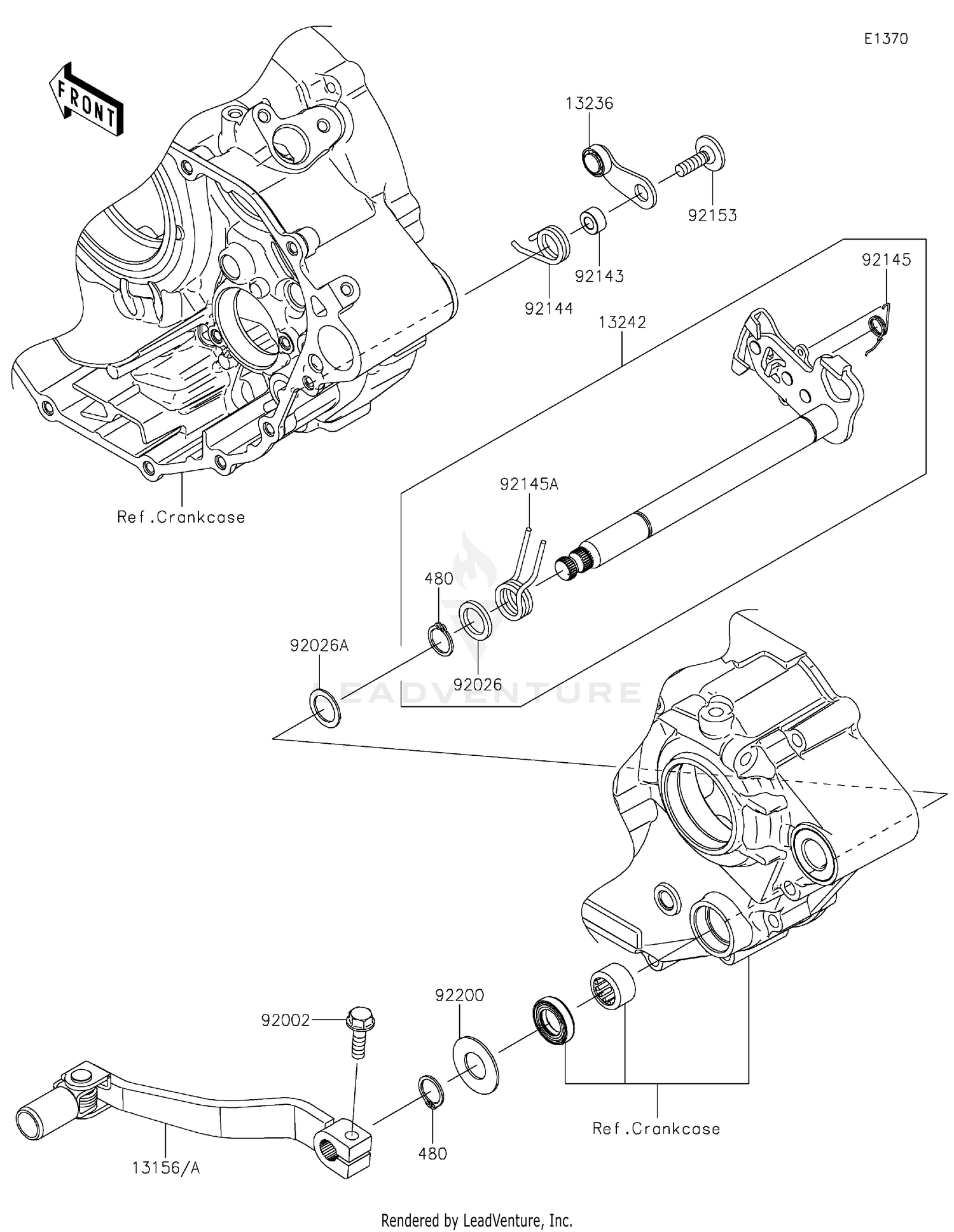

Gear Change Mechanism
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 13156 | 13156-0693 | LEVER-CHANGE,PEDAL Price: $65.27 |
| 13156A | 13156-0696 | LEVER-CHANGE,PEDAL Price: $71.39 |
| 13236 | 13236-0818 | LEVER-COMP,POSITION Price: $22.51 |
| 13242 | 13242-0158 | LEVER-ASSY-CHANGE Price: $59.37 |
| 92002 | 92002-1237 | BOLT,6X20 Price: $4.31 |
| 92026 | 92026-0107 | SPACER,14X20X2.3 Price: $5.33 |
| 92026A | 92026-1534 | SPACER,14X20X1.0 Price: $4.31 |
| 92143 | 92143-1595 | COLLAR Price: $9.51 |
| 92144 | 92144-1523 | SPRING,GEAR POSITION Price: $8.79 |
| 92145 | 92145-0414 | SPRING Price: $9.26 |
| 92145A | 92145-0415 | SPRING,RETURN Price: $11.82 |
| 92153 | 92153-1505 | BOLT,6X20 Price: $7.75 |
| 92200 | 92200-0265 | WASHER Price: $2.61 |
