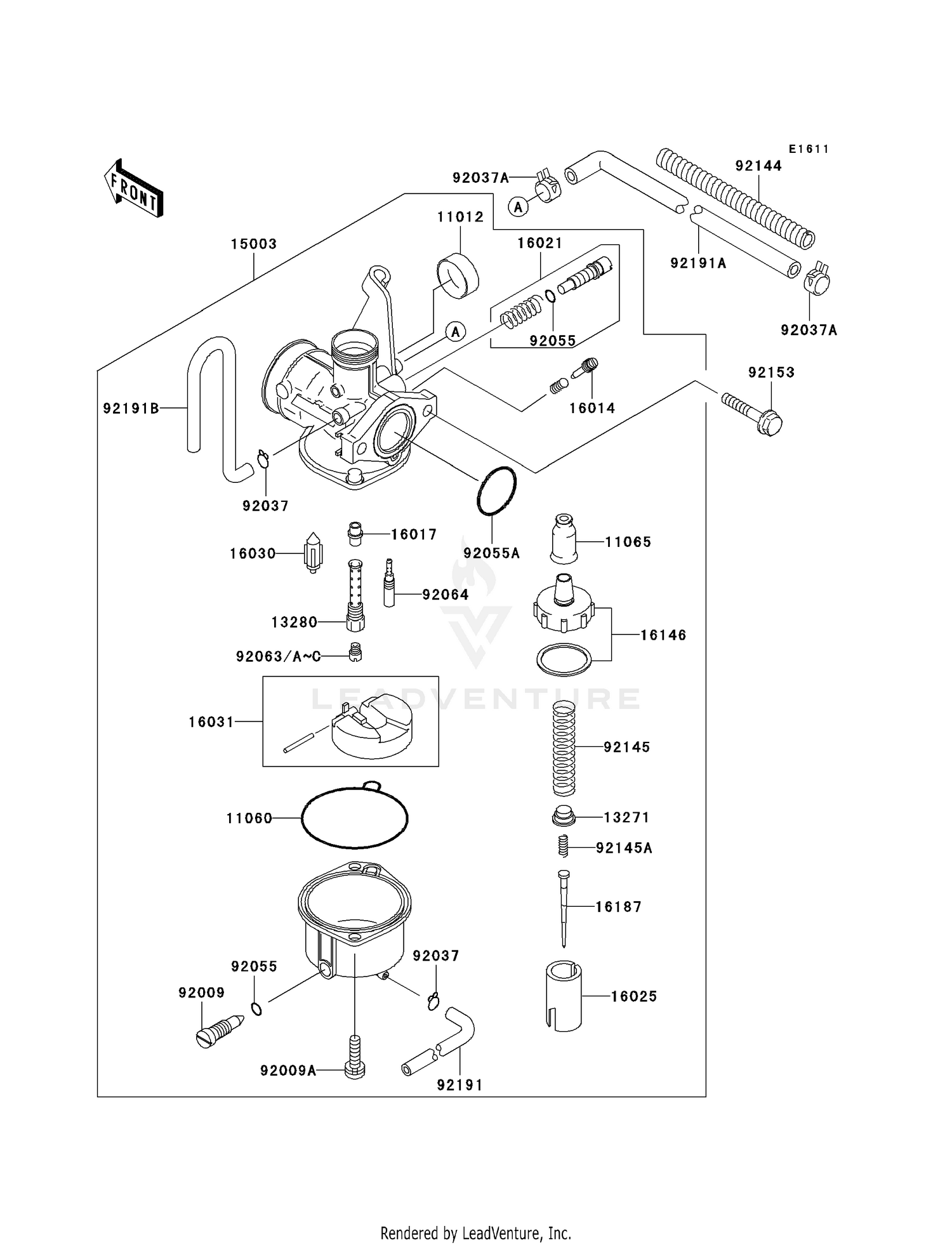

| Ref | Part Number | Description |
|---|
| 11012 |
11065-0811 |
CAP,CHOKE This part replaces 11012-1940. Price: $10.06 |
| 11060 |
11061-0874 |
GASKET,FLOAT CHAMBER This part replaces 11060-1700. Price: $17.07 |
| 11065 |
11065-1235 |
CAP,TOP COVER Price: $3.70 |
| 13271 |
13271-1668 |
PLATE Price: $7.89 |
| 13280 |
13280-1282 |
HOLDER,NEEDLE JET Price: $14.99 |
| 15003 |
15003-1678 |
CARBURETOR-ASSY Price: $129.53 |
| 16014 |
16014-1093 |
SCREW-PILOT AIR Price: $16.64 |
| 16017 |
16017-1399 |
JET-NEEDLE Price: $42.85 |
| 16021 |
16021-1203 |
SCREW-THROTTLE STOP Price: $15.87 |
| 16025 |
16025-1225 |
VALVE-THROTTLE Price: $74.62 |
| 16030 |
16030-0009 |
VALVE-FLOAT,FLOAT This part replaces 16030-0002. Price: $54.67 |
| 16031 |
16031-1107 |
FLOAT Price: $29.06 |
| 16146 |
16146-1229 |
COVER-ASSY,CARBURETOR Price: $6.16 |
| 16187 |
16187-1175 |
NEEDLE-JET,NANL Price: $27.32 |
| 92009 |
92009-1057 |
SCREW,DRAIN Price: $7.84 |
| 92009A |
92009-1750 |
SCREW Price: $4.39 |
| 92037 |
92037-1142 |
CLAMP,TUBE Price: $4.31 |
| 92037A |
92037-1601 |
CLAMP Price: $12.92 |
| 92055 |
92055-1053 |
RING-O Price: $4.69 |
| 92055A |
92055-1541 |
RING-O Price: $2.78 |
| 92063 |
92063-1393 |
JET-MAIN,#78 Price: $13.31 |
| 92064 |
92064-1204 |
JET-PILOT,#35 Price: $7.60 |
| 92144 |
92144-1994 |
SPRING Price: $4.14 |
| 92145 |
92145-1407 |
SPRING,THROTTLE VALVE Price: $7.88 |
| 92145A |
92145-1408 |
SPRING,THROTTLE VALVE Price: $1.10 |
| 92153 |
132BD0630 |
BOLT-FLANGED-SMALL,6X30 This part replaces 92153-1187. Price: $3.67 |
| 92191 |
92191-1142 |
TUBE,3.5X6.5X298 Price: $11.66 |
| 92191A |
92191-1204 |
TUBE,FUEL Price: $4.76 |
