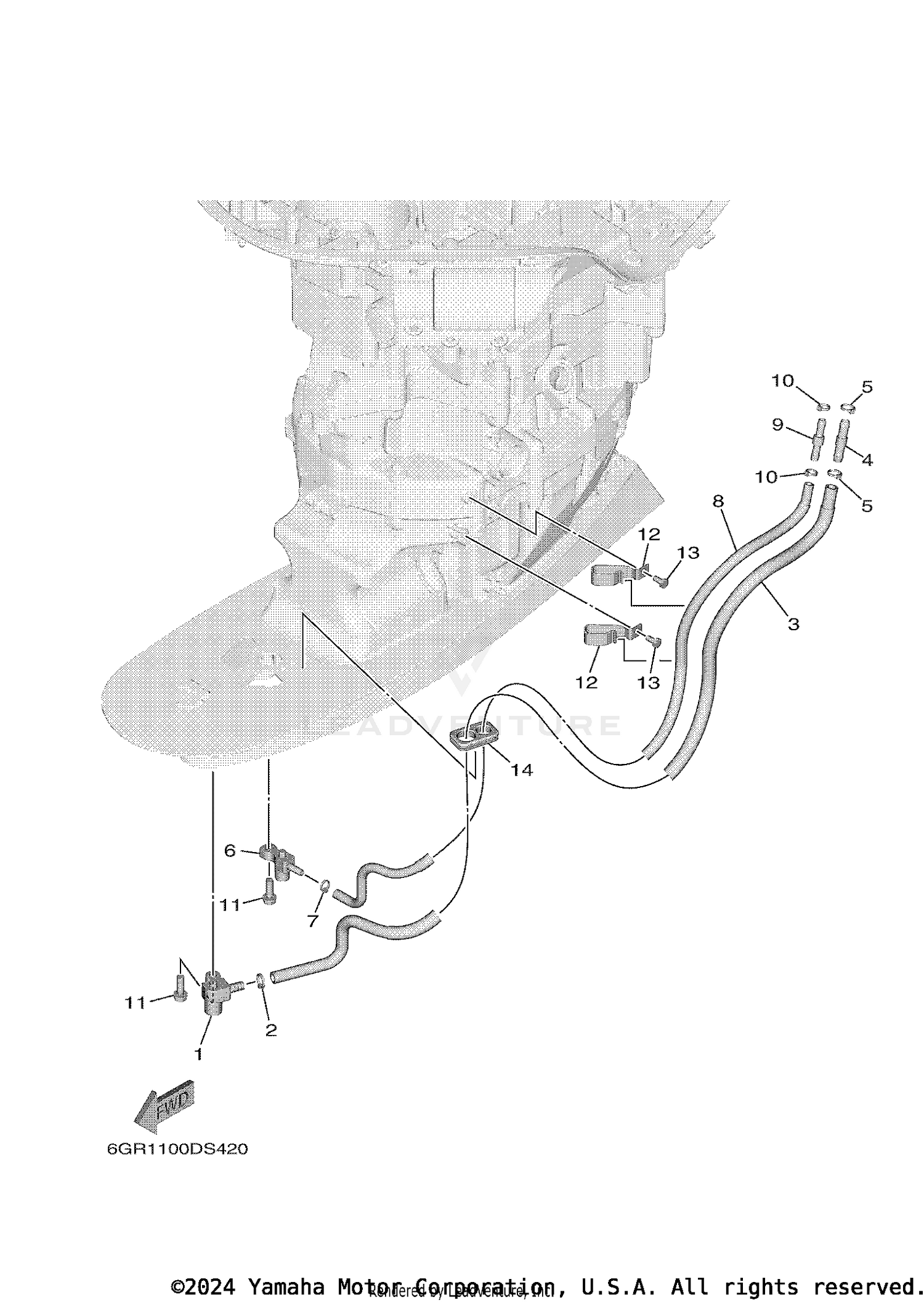

UPPER CASING 3
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6GR-45368-00-00 | JOINT, HOSE 1 Price: $69.10 |
| 2 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 3 | 6GR-4383K-00-00 | HOSE, OIL 1 Price: $28.50 |
| 4 | 6AW-42785-00-00 | PIPE Price: $5.80 |
| 5 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 6 | 6GR-45369-00-00 | JOINT, HOSE 2 Price: $73.75 |
| 7 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 8 | 6GR-2318F-00-00 | HOSE, AIR Price: $19.90 |
| 9 | 6E5-24379-00-00 | PIPE, JOINT 4 Price: $4.20 |
| 10 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 11 | 97E95-08525-00 | BOLT, HEXAGON W/W Price: $1.50 |
| 12 | 6GR-12491-00-00 | CLAMP 1 Price: $7.70 |
| 13 | 97D95-06012-00 | BOLT, HEXAGON DEEP Price: $0.70 |
