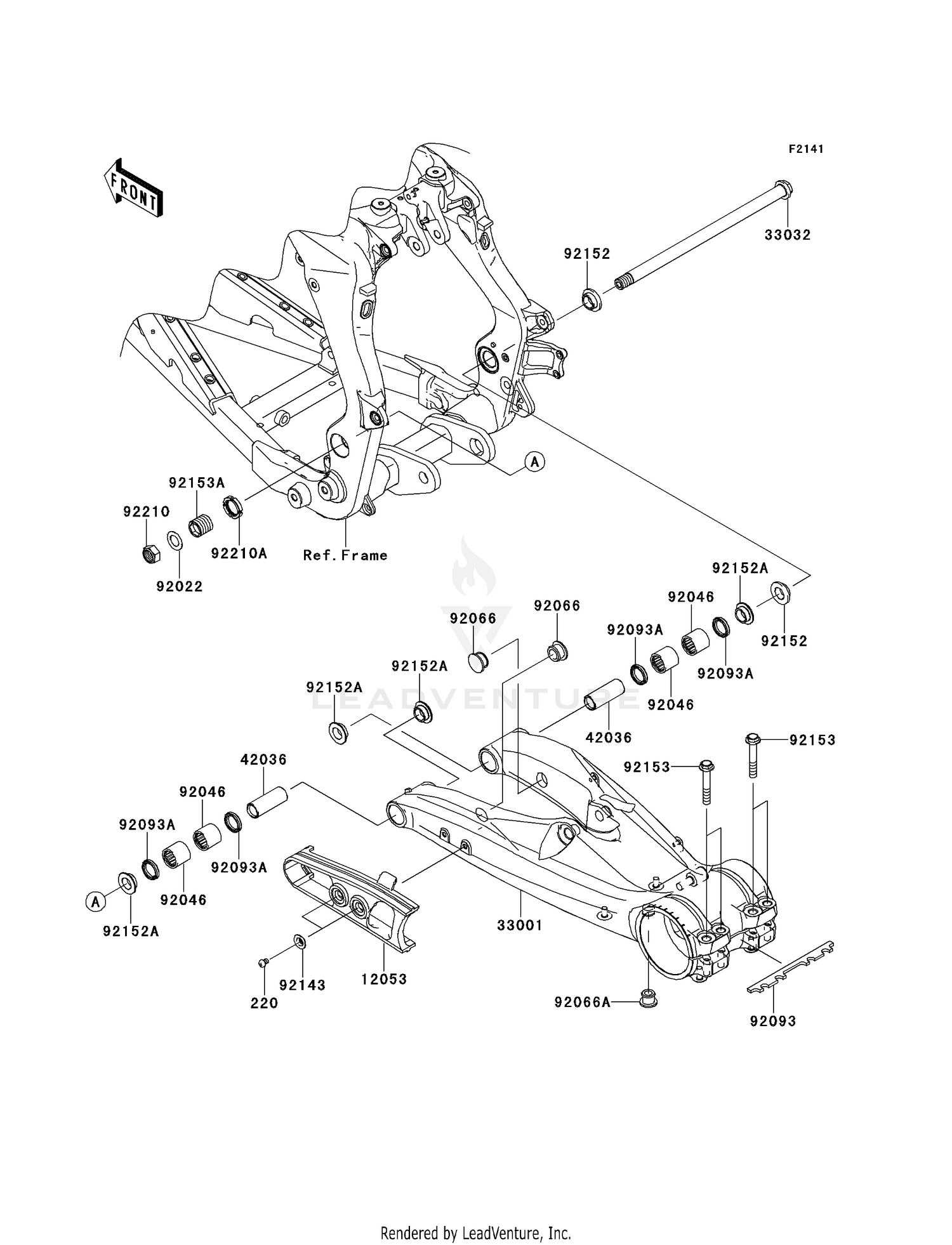

SWINGARM
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 220 | 220AA0608 | SCREW-PAN-CROS,6X8 Price: $0.59 |
| 12053 | 12053-0100 | GUIDE-CHAIN Price: $86.98 |
| 33001 | 33001-0157 | ARM-COMP-SWING Price: $677.63 |
| 33032 | 33032-0019 | SHAFT-SWING ARM Price: $50.11 |
| 42036 | 42036-0036 | SLEEVE Price: $25.00 |
| 92022 | 92022-170 | WASHER-THRUST Price: $9.28 |
| 92046 | 92046-0027 | BEARING-NEEDLE,BM2229 Price: $41.39 |
| 92066 | 92066-0074 | PLUG Price: $3.91 |
| 92066A | 92066-0077 | PLUG Price: $3.91 |
| 92093 | 92093-0062 | SEAL Price: $4.62 |
| 92093A | 92093-1435 | SEAL,SDO22X29X5 Price: $8.79 |
| 92143 | 92143-1156 | COLLAR Price: $6.22 |
| 92152 | 92152-0402 | COLLAR Price: $15.94 |
| 92152A | 92152-0431 | COLLAR Price: $17.79 |
| 92153 | 92153-1486 | BOLT,FLANGED,10X60 Price: $5.70 |
| 92153A | 92153-1600 | BOLT,PIVOT,24MM Price: $33.35 |
| 92210 | 92210-0179 | NUT,LOCK,16MM Price: $21.36 |
