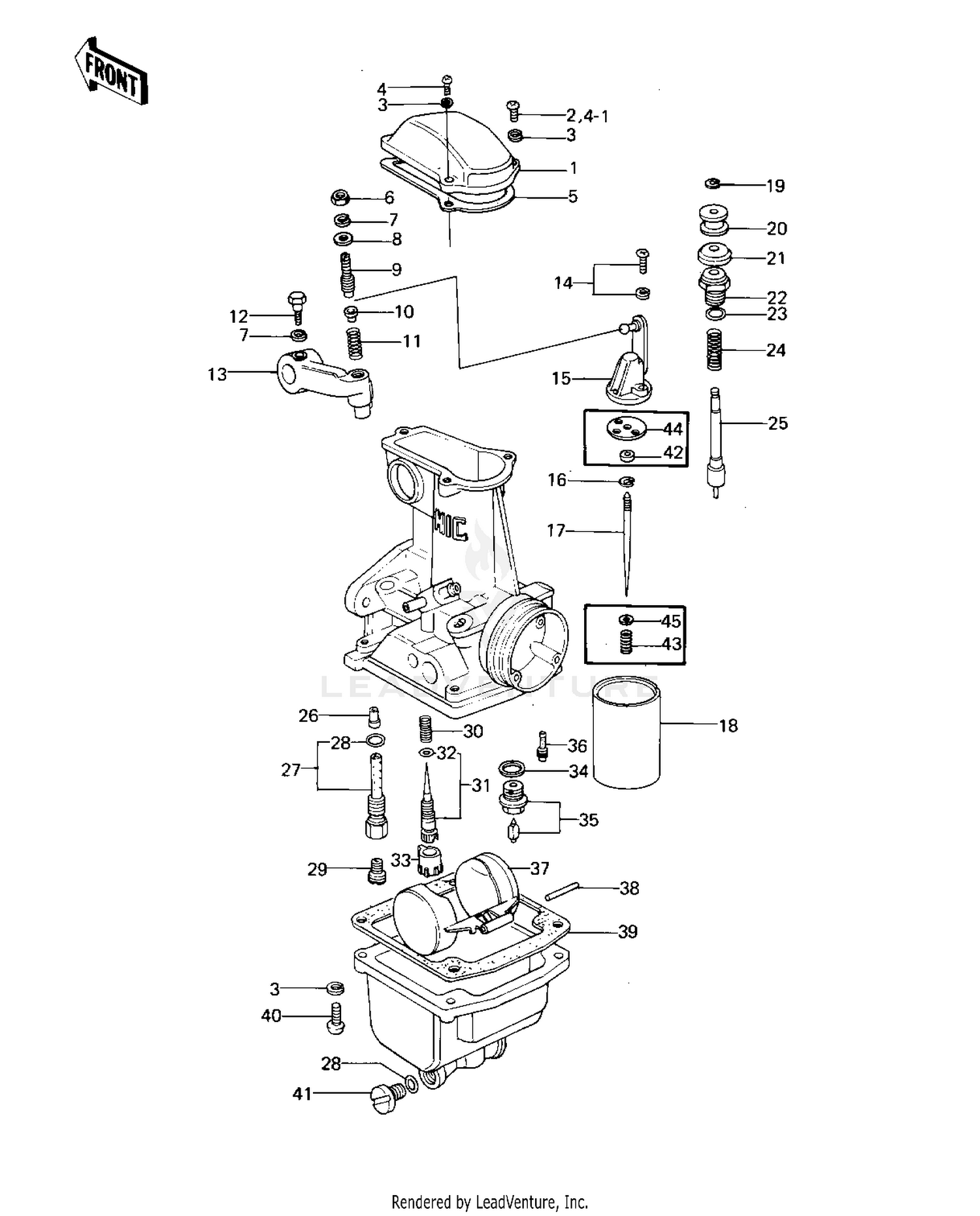

| Ref | Part Number | Description |
|---|
| 1 |
16005-027 |
TOP,MIXING CHAMBER Price: $24.02 |
| 3 |
461F0400 |
WASHER SPRING 4MM Price: $0.47 |
| 4 |
223AA0414 |
SCREW-PAN-WS-CROS,4X14 This part replaces 223B0414. Price: $1.52 |
| 5 |
16019-031 |
GASKET,CHAMBER TOP Price: $43.53 |
| 6 |
16003-013 |
NUT,5MM Price: $9.40 |
| 7 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 8 |
16039-016 |
WASHER,PLAIN Price: $8.03 |
| 9 |
16046-012 |
SCREW,SLOTTED Price: $26.55 |
| 10 |
16057-002 |
SEAT,SPRING Price: $10.53 |
| 11 |
16040-026 |
SPRING Price: $6.62 |
| 12 |
16067-006 |
BOLT,HEX HEAD,5X14 Price: $18.26 |
| 13 |
39075-1001 |
LEVER,THROTTLE Price: $33.42 |
| 14 |
16033-031 |
SCREW,PAN HEAD,3X14 Price: $8.38 |
| 16 |
16008-010 |
CIRCLIP Price: $9.21 |
| 19 |
16076-003 |
CIRCLIP Price: $8.92 |
| 20 |
16073-014 |
COLLAR Price: $10.47 |
| 21 |
16039-015 |
CAP,RUBBER,STARTER PLUNGE Price: $6.88 |
| 22 |
16012-015 |
CAP,STARTER PLUNGER Price: $17.25 |
| 23 |
670B1509 |
O RING,9MM Price: $3.65 |
| 24 |
16013-008 |
SPRING,STARTER PLUNGER Price: $6.46 |
| 25 |
16016-021 |
PLUNGER,STARTER Price: $42.89 |
| 30 |
16022-016 |
SPRING,PILOT SCREW Price: $9.10 |
| 31 |
16014-018 |
SCREW,PILOT ADJUSTING Price: $40.76 |
| 32 |
16038-024 |
O RING Price: $1.56 |
| 34 |
16029-004 |
GASKET,FLOAT VALVE SEAT Price: $3.89 |
| 35 |
16030-027 |
FLOAT VALVE ASSY Price: $129.50 |
| 37 |
16031-031 |
FLOAT Price: $172.74 |
| 38 |
16032-008 |
PIN,FLOAT This part replaces 16032-003. Price: $6.57 |
| 39 |
11009-1563 |
GASKET,FLOAT CHAMBER Price: $24.64 |
| 40 |
220AA0416 |
SCREW-PAN-CROS This part replaces 220B0416. Price: $1.78 |
| 41 |
16049-007 |
SCREW,GUIDE Price: $18.41 |
