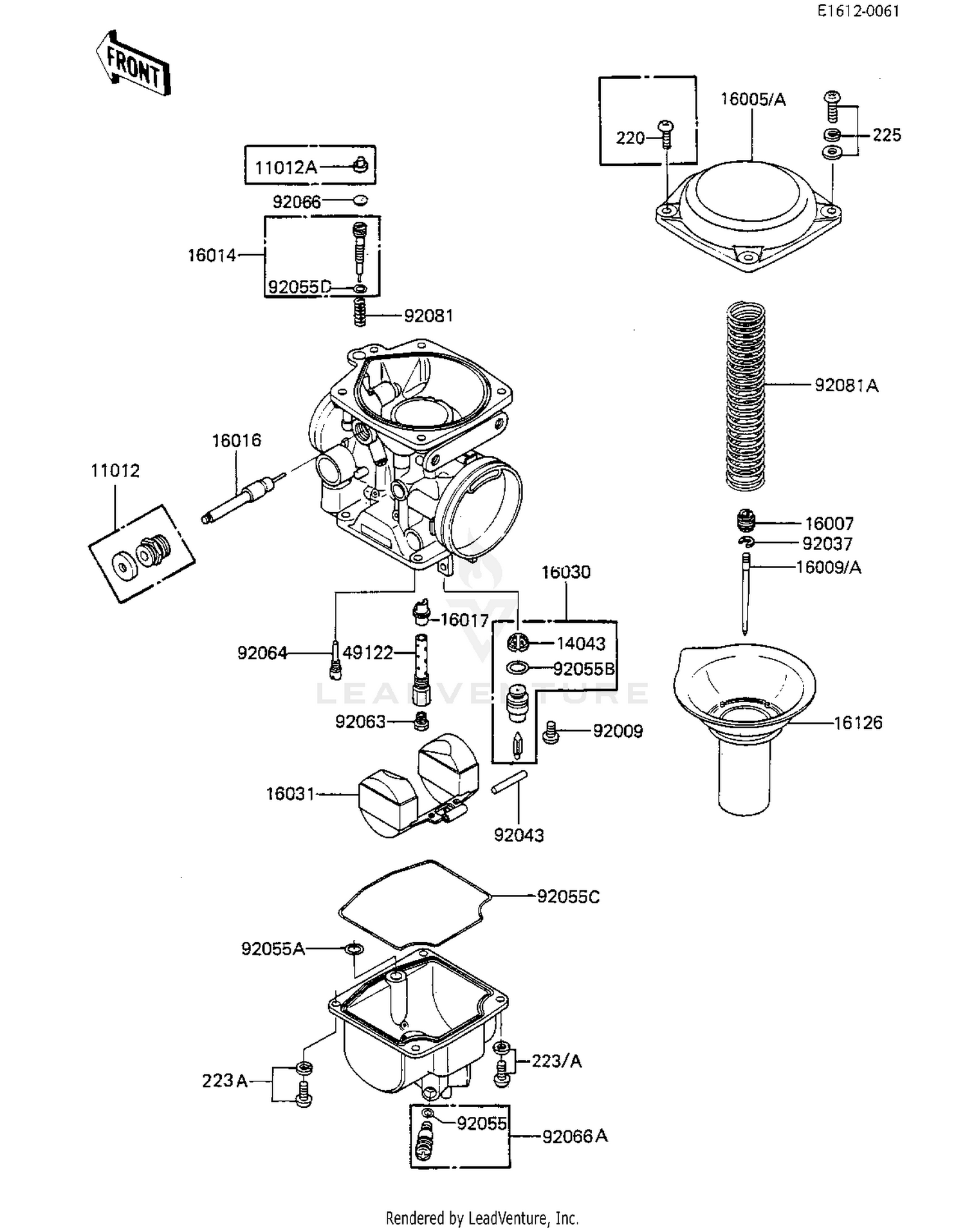

CARBURETOR PARTS
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 220 | 220AA0408 | SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 223 | 223AA0412 | SCREW-PAN-WS-CROS This part replaces 223B0412. Price: $4.60 |
| 223A | 223AB0412 | SCREW-PAN-WS-CROS This part replaces 223C0412. Price: $4.32 |
| 11012 | 11012-1243 | CAP Price: $12.47 |
| 14043 | 14043-1011 | FILTER,FLOAT VALVE Price: $16.27 |
| 16005 | 16005-1020 | TOP-CHAMBER Price: $17.26 |
| 16005A | 16005-1021 | TOP-CHAMBER,CR PLATED Price: $24.89 |
| 16007 | 16007-1051 | SEAT-SPRING Price: $10.76 |
| 16014 | 16014-1032 | SCREW-PILOT AIR Price: $24.77 |
| 16016 | 16016-1023 | PLUNGER Price: $29.02 |
| 16017 | 16017-1116 | JET-NEEDLE Price: $20.10 |
| 16030 | 16030-1024 | VALVE-FLOAT Price: $79.11 |
| 16031 | 16031-1018 | FLOAT Price: $81.94 |
| 16126 | 16126-1047 | VALVE Price: $278.51 |
| 49122 | 49122-1012 | PIPE-BLEEDER Price: $35.35 |
| 92009 | 92009-1168 | SCREW,FLOAT VALVE Price: $4.58 |
| 92037 | 92037-1303 | CLAMP Price: $4.58 |
| 92043 | 92043-1112 | PIN Price: $4.98 |
| 92055 | 92055-1071 | O RING,OVERFLOW Price: $8.67 |
| 92055A | 92055-1126 | RING-0 Price: $11.07 |
| 92055B | 92055-1127 | RING-O Price: $7.51 |
| 92055C | 92055-1128 | RING-0,FLOAT CHAMBER Price: $33.53 |
| 92055D | 92055-1134 | RING-O Price: $8.67 |
| 92063 | 92063-1134 | JET-MAIN,#120 Price: $17.56 |
| 92064 | 92064-1055 | JET-PILOT Price: $18.76 |
| 92066A | 92066-1065 | SCREW,DRAIN Price: $18.25 |
| 92081 | 92081-1441 | SPRING Price: $7.22 |
| 92081A | 92081-1461 | SPRING Price: $23.41 |
