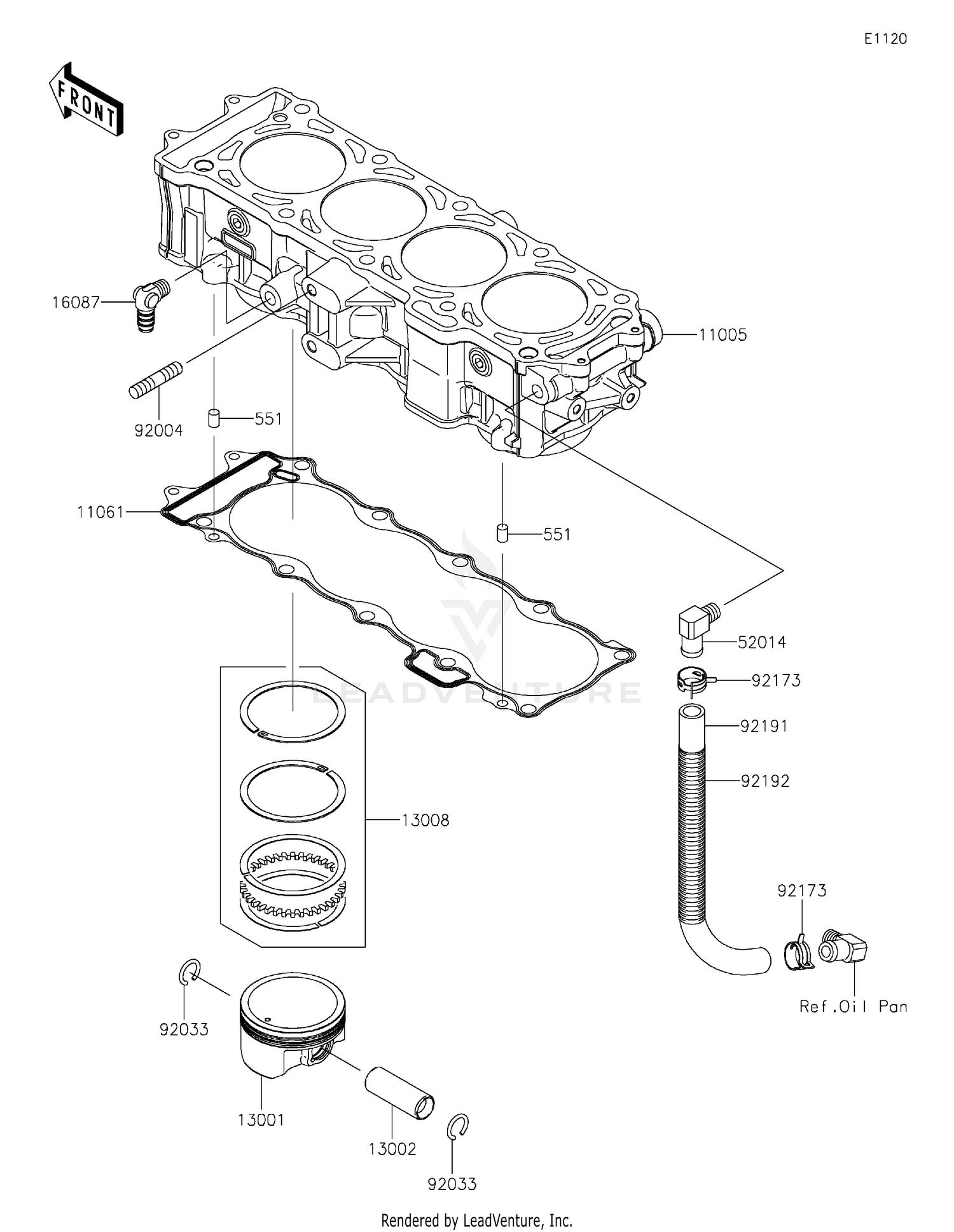

Cylinder/Piston(s)
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 551 | 551R0812 | PIN-DOWEL Price: $7.91 |
| 11005 | 11005-0630 | CYLINDER-ENGINE Price: $1,611.07 |
| 11061 | 11061-3770 | GASKET,CYLINDER BASE Price: $64.88 |
| 13001 | 13001-0787 | PISTON-ENGINE Price: $102.41 |
| 13002 | 13002-1131 | PIN-PISTON Price: $32.43 |
| 13008 | 13008-0564 | RING-SET-PISTON Price: $72.73 |
| 16087 | 16087-3714 | VALVE-CHECK Price: $112.93 |
| 52014 | 52014-3717 | ELBOW Price: $33.08 |
| 92004 | 92004-3759 | STUD,10X32 Price: $7.90 |
| 92033 | 92033-1188 | RING-SNAP Price: $3.89 |
| 92173 | 92173-1039 | CLAMP Price: $3.02 |
| 92191 | 92191-3983 | TUBE,BREATHER Price: $16.26 |
