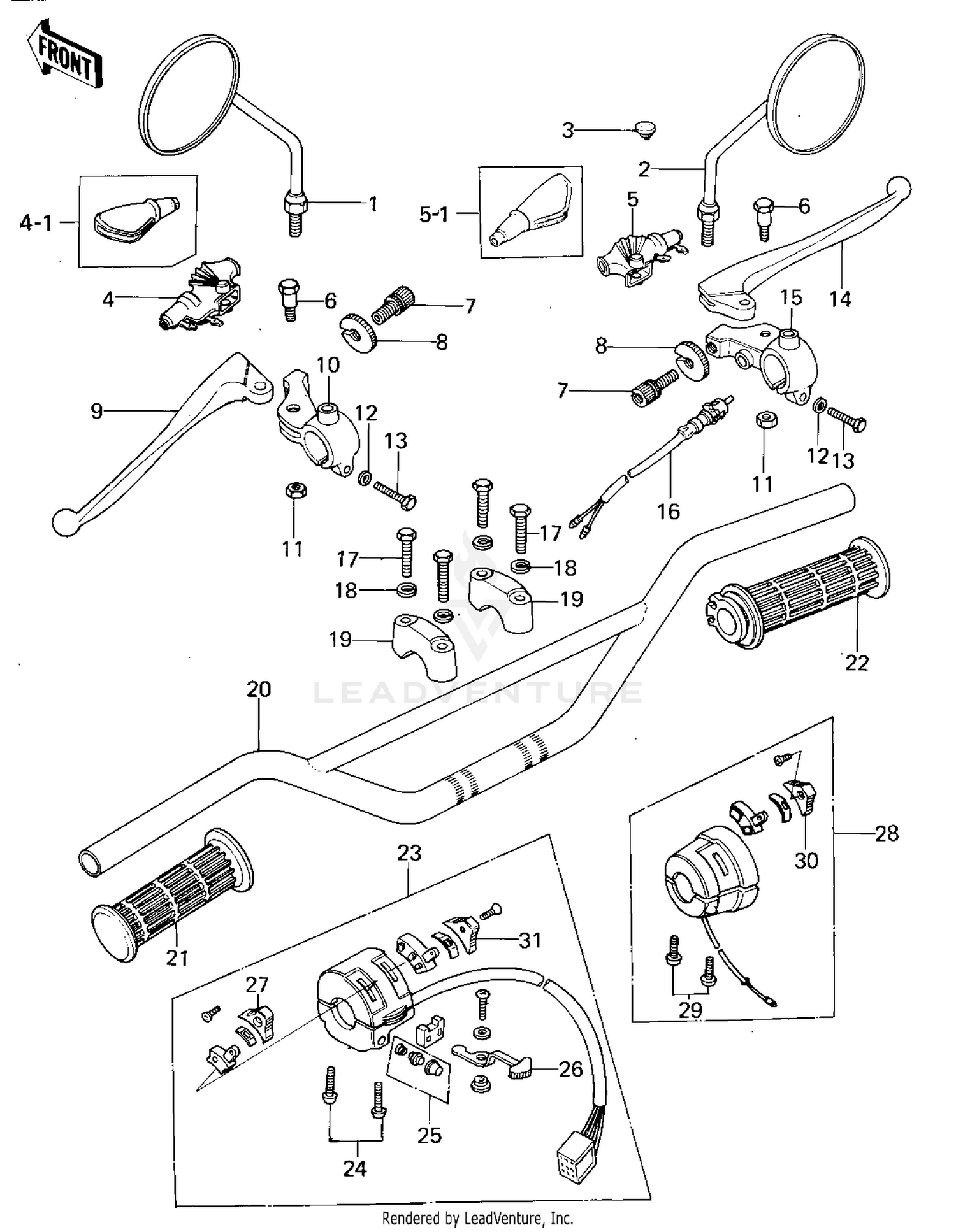

| Ref | Part Number | Description |
|---|
| 1 |
56003-009 |
REAR VIEW MIRROR,L.H Price: $67.12 |
| 3 |
92102-009 |
CAP-RR VIEW MIRROR Price: $3.16 |
| 6 |
92007-046 |
BOLT,HEX HEAD,5X22 Price: $7.62 |
| 7 |
46055-003 |
SCREW,CABLE ADJUST,8MM Price: $16.33 |
| 8 |
46058-005 |
LEVER FRONT BRAKE Price: $21.81 |
| 9 |
46092-015 |
LEVER-CLUTCH Price: $20.99 |
| 11 |
92019-014 |
NUT-LOCK,5MM Price: $4.50 |
| 12 |
411S0600 |
WASHER-PLAIN,6MM This part replaces 411D0600. Price: $2.06 |
| 13 |
112N0625 |
BOLT-UPSET This part replaces 110N0625. Price: $5.86 |
| 14 |
46058-004 |
LEVER FRONT BRAKE Price: $24.84 |
| 16 |
27021-004 |
SWITCH-FR. BRAKE LAMP Price: $35.78 |
| 17 |
92001-1405 |
BOLT 8X38 Price: $16.50 |
| 18 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 19 |
46012-014 |
HOLDER,HANDLEBAR Price: $24.98 |
| 20 |
46003-1004 |
HANDLEBAR,BRIDGE Price: $118.07 |
| 21 |
46075-1001 |
RUBBER,L.H.GRIP Price: $30.88 |
| 22 |
46019-1001 |
GRIP ASSY,THROTTLE Price: $55.72 |
| 24 |
220AA0522 |
SCREW-PAN-CROS,5X22 This part replaces 220B0522. Price: $0.75 |
| 25 |
27010-1009 |
SWITCH ASSY,HORN BUTN Price: $9.20 |
| 26 |
92077-1005 |
KNOB,SGNL LIGHT SWICH Price: $4.09 |
| 27 |
92077-1004 |
KNOB,LIGHTING SWITCH Price: $4.09 |
| 28 |
46091-1011 |
HOUSING ASSY,CONT,R.H Price: $200.17 |
| 29 |
220AA0525 |
SCREW-PAN-CROS,5X25 This part replaces 220B0525. Price: $3.67 |
| 30 |
92077-1006 |
SWITCH,ENGINE STOP Price: $8.92 |
