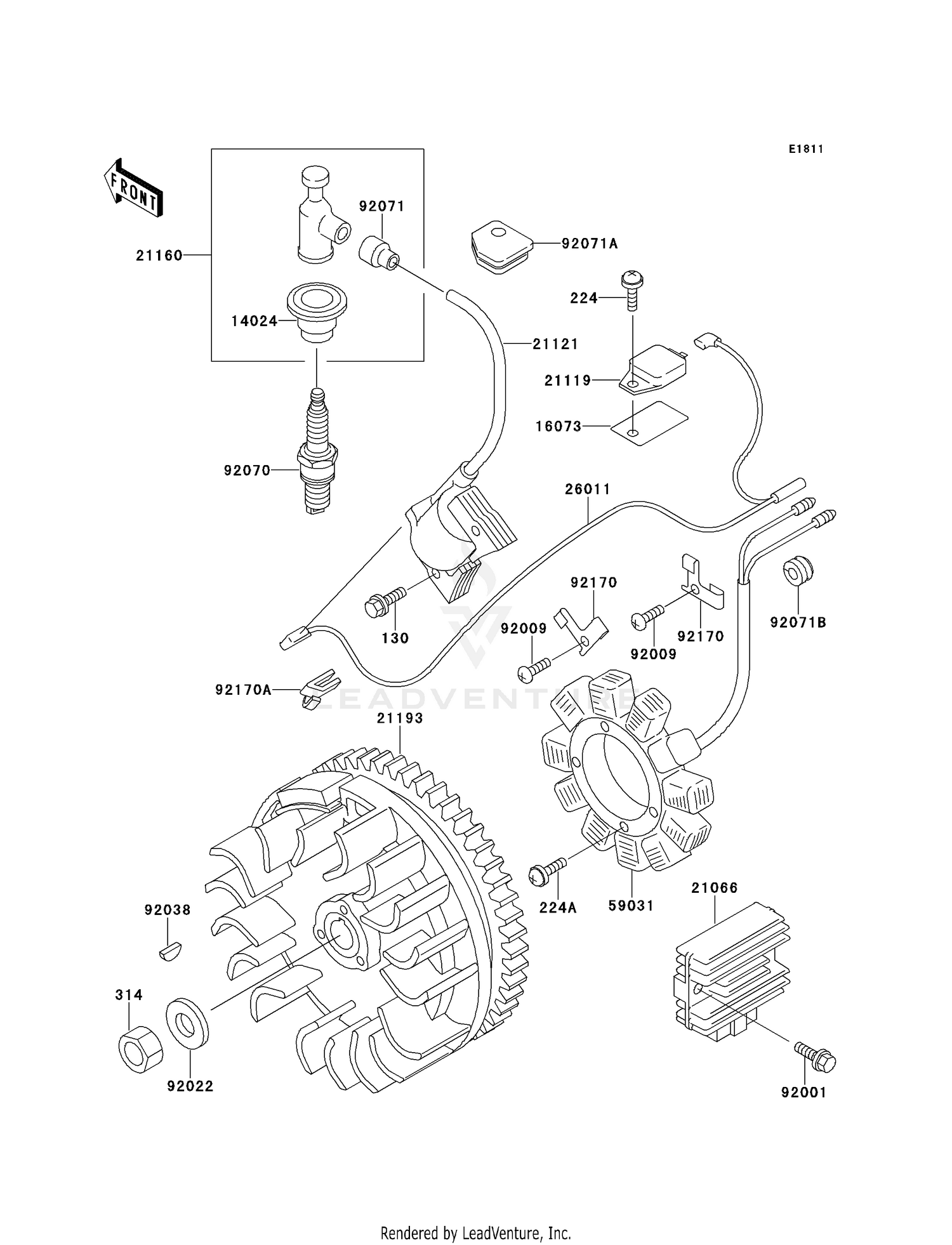

GENERATOR/IGNITION COIL

GENERATOR/IGNITION COIL

Parts (22)

RefPart NumberDescription
130 130AA0525 BOLT-FLANGED,5X25 This part replaces 130B0525. Price: $0.30
224 224AA0508 SCREW-PAN-WP-CROS,5X8 This part replaces 224B0508. Price: $0.68
224A 224AA0620 SCREW-PAN-WP-CROS,6X20 This part replaces 224B0620. Price: $0.58
314 314BA1600 NUT-HEX-FINE,16MM This part replaces 314G1600. Price: $1.94
14024 14024-2234 COVER Price: $2.83
16073 16073-2134 INSULATOR Price: $1.48
21066 21066-2004 REGULATOR VOLTAGE Price: $86.61
21119 21119-2146 IGNITER Price: $93.46
21121 21121-2067 COIL-IGNITION Price: $72.54
21160 21160-2051 CAP-ASSY-PLUG Price: $16.42
21193 21193-2105 FLYWHEEL-ASSY Price: $204.51
26011 26011-2228 WIRE-LEAD Price: $6.12
59031 59031-2097 COIL-CHARGING Price: $92.72
92001 92001-1352 BOLT,FLANGED,6X22 Price: $4.31
92009 92009-2308 SCREW Price: $0.43
92022 92022-2205 WASHER Price: $2.49
92038 92038-2094 KEY Price: $2.07
92070 4006 SPK PLG BPR5ES SOLID This part replaces 92070-2077. Price: $4.40
92071 92071-2008 DAMPER Price: $1.14
92071A 92071-2112 GROMMET Price: $2.78
92071B 92071-2125 GROMMET Price: $1.52
92170 92170-2016 CLAMP Price: $2.49
