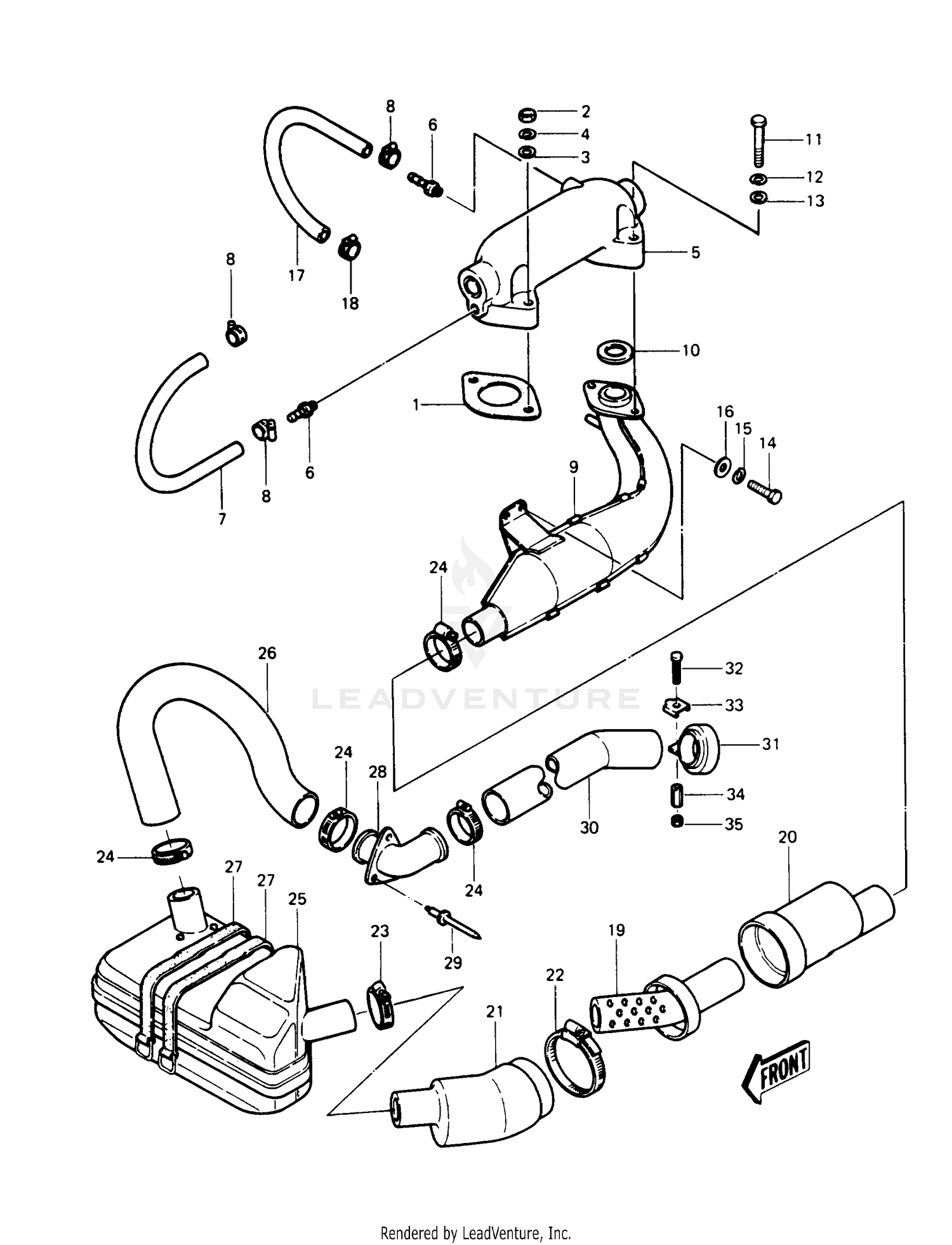

| Ref | Part Number | Description |
|---|
| 1 |
11060-3710 |
GASKET,EXHAUST This part replaces 18067-502. Price: $38.61 |
| 2 |
311M0800 |
NUT,8 M/M Price: $0.92 |
| 3 |
410S0800 |
WASHER-PLAIN-SMALL,8MM Price: $2.58 |
| 4 |
461S0800 |
WASHER-SPRING,8MM Price: $0.65 |
| 5 |
18049-3006-YR |
PIPE-EXHAUST Price: $222.30 |
| 6 |
92005-3712 |
FITTING,HOSE This part replaces 92005-3001. Price: $10.88 |
| 7 |
92059-3763 |
TUBE This part replaces 92059-3021. Price: $27.52 |
| 8 |
92173-1401 |
CLAMP This part replaces 92037-504. Price: $13.67 |
| 10 |
11009-3784 |
GASKET,EXHAUST This part replaces 18067-509. Price: $12.70 |
| 11 |
110R0845 |
BOLT,8X45 Price: $6.84 |
| 12 |
461S0800 |
WASHER-SPRING,8MM Price: $0.65 |
| 13 |
410S0800 |
WASHER-PLAIN-SMALL,8MM Price: $2.58 |
| 14 |
110R0820 |
BOLT,8X20 Price: $5.04 |
| 15 |
461S0800 |
WASHER-SPRING,8MM Price: $0.65 |
| 16 |
92022-3744 |
WASHER,8.4X23X2.5 Price: $4.18 |
| 17 |
92059-523 |
HOSE This part replaces 92059-502. Price: $10.51 |
| 18 |
92173-1401 |
CLAMP This part replaces 92037-504. Price: $13.67 |
| 19 |
59151-528 |
PIPE-RESNTR. CONNECTR Price: $116.78 |
| 20 |
92059-542 |
TUBE Price: $130.82 |
| 21 |
92059-543 |
TUBE Price: $130.82 |
| 22 |
92171-3716 |
CLAMP This part replaces 92037-541. Price: $10.24 |
| 23 |
92037-509 |
CLAMP Price: $5.58 |
| 24 |
92037-509 |
CLAMP Price: $5.58 |
| 25 |
49070-3714 |
MUFFLER-COMP,WATERBOX This part replaces 18001-3006. Price: $123.68 |
| 26 |
92059-528 |
HOSE Price: $121.19 |
| 27 |
92072-511 |
BAND Price: $28.99 |
| 28 |
59156-506 |
PIPE,TAIL Price: $145.44 |
| 29 |
92039-3701 |
RIVET Price: $1.67 |
| 30 |
92059-549 |
HOSE,TAIL Price: $86.78 |
| 31 |
92037-545 |
CLAMP Price: $15.94 |
| 32 |
92009-3747 |
SCREW,6X45 This part replaces 220R0645. Price: $3.43 |
| 33 |
92095-513 |
WASHER Price: $2.64 |
| 34 |
92015-532 |
NUT,6M/M Price: $33.70 |
| 35 |
311R0600 |
NUT-HEX,6MM Price: $0.70 |
