| Ref | Part Number | Description |
|---|
| 10a |
505071781 |
Ski Bushing Price: $16.18 |
| 12 |
505071812 |
Retainer 17mm long Price: $6.09 |
| 16 |
505072133 |
Retainer 23mm Long Price: $6.89 |
| 18 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 200 |
250000703 |
Hex. Screw M10 X 130 Price: $10.99 |
| 210 |
505073691 |
Ski Axle Price: $14.49 |
| 300 |
505073708 |
SKI-LEG MACHINED - Call your local BRP dealership Price: $209.99 |
| 300 |
505073711 |
Black - RH Ski Leg 10 Price: $239.99 |
| 300 |
505074016 |
SKI-LEG MACHINED - Call your local BRP dealership Price: $209.99 |
| 300 |
505074017 |
SKILEG MACHINED - Call your local BRP dealership Price: $209.99 |
| 300 |
505074020 |
Bare - LH Ski Leg 10 Price: $239.99 |
| 300 |
505074021 |
Bare - RH Ski Leg 10 Price: $239.99 |
| 320 |
505072690 |
Leg Bushing Price: $12.49 |
| 330 |
505073779 |
Leg Stopper Price: $16.99 |
| 420 |
505072208 |
Bushing Price: $3.28 |
| 430 |
505072209 |
Sleeve Price: $17.84 |
| 440 |
505072634 |
Wear Plate Price: $6.39 |
| 445 |
505072448 |
O-Ring Price: $2.39 |
| 450 |
250001024 |
Screw Hex. M10 X 70 This part replaces 250000291. Price: $2.19 |
| 455 |
250001024 |
Screw Hex. M10 X 70 This part replaces 250000291. Price: $2.19 |
| 470 |
505073723 |
Wear Plate Price: $6.29 |
| 480 |
505073844 |
Plate Price: $2.39 |
| 500 |
505073724 |
LH Upper Arm 42" Price: $154.99 |
| 500 |
505073728 |
RH Upper Arm 42" Price: $154.99 |
| 520 |
505072250 |
Bushing Price: $3.28 |
| 530 |
505072143 |
Sleeve Price: $9.00 |
| 540 |
250001023 |
Screw Hex. M10 X 60 This part replaces 250000290. Price: $2.19 |
| 545 |
250100165 |
Hex. Flange Elastic Nut M10 Price: $0.87 |
| 550 |
250001023 |
Screw Hex. M10 X 60 This part replaces 250000290. Price: $2.19 |
| 555 |
250100165 |
Hex. Flange Elastic Nut M10 Price: $0.87 |
| 660 |
503189564 |
Washer Price: $0.76 |
| 670 |
505072392 |
Washer Price: $4.89 |
| 680 |
250100165 |
Hex. Flange Elastic Nut M10 Price: $0.87 |
| 685 |
250100165 |
Hex. Flange Elastic Nut M10 Price: $0.87 |
| 690 |
505072448 |
O-Ring Price: $2.39 |
| 800 |
505074719 |
Stabiliser This part replaces 505073819. Price: $67.99 |
| 810 |
505072064 |
Bushing Price: $2.32 |
| 830 |
505073731 |
Stabilisator Lever Price: $18.49 |
| 840 |
207663056 |
Hex. Flange Screw M6 X 1.0 X 30 Price: $4.49 |
| 850 |
233261466 |
Hex. Flange Elastic Nut M6 Price: $2.09 |
| 860 |
505072204 |
Sway Bar Double Joint Link Price: $21.99 |
| 870 |
207663056 |
Hex. Flange Screw M6 X 1.0 X 30 Price: $4.49 |
| 880 |
233261466 |
Hex. Flange Elastic Nut M6 Price: $2.09 |
| 1000c |
505074046 |
Spring Price: $66.99 |
| 1000e |
503194270 |
Spring Stopper Price: $19.99 |
| 1010 |
250000824 |
Hex. Flange Screw M8 X 58 Price: $2.19 |
| 1020 |
250000824 |
Hex. Flange Screw M8 X 58 Price: $2.19 |
| 1200 |
505074009 |
Ball Joint Price: $54.99 |
| 1230 |
503192491 |
Washer Price: $4.69 |
| 1240 |
232521464 |
Hex Elastic Nut M12 X 1.25 Price: $2.19 |
| 1300 |
293370070 |
Circlip Price: $9.19 |
| 1400 |
505072913 |
Upper Ball Joint Price: $72.99 |
| 1410 |
293370098 |
Snap Ring Price: $3.29 |
| 1910 |
503192496 |
Washer Price: $0.79 |
| 1920 |
233201464 |
Hex. Flange Elastic M10 x 1.5 Price: $7.69 |
| 1930 |
505072594 |
Ski Stopper Price: $18.49 |
| 1940 |
233281466 |
Elastic Flange Nut M8 Price: $1.09 |
| 1950 |
505073892 |
Spacer Price: $2.39 |

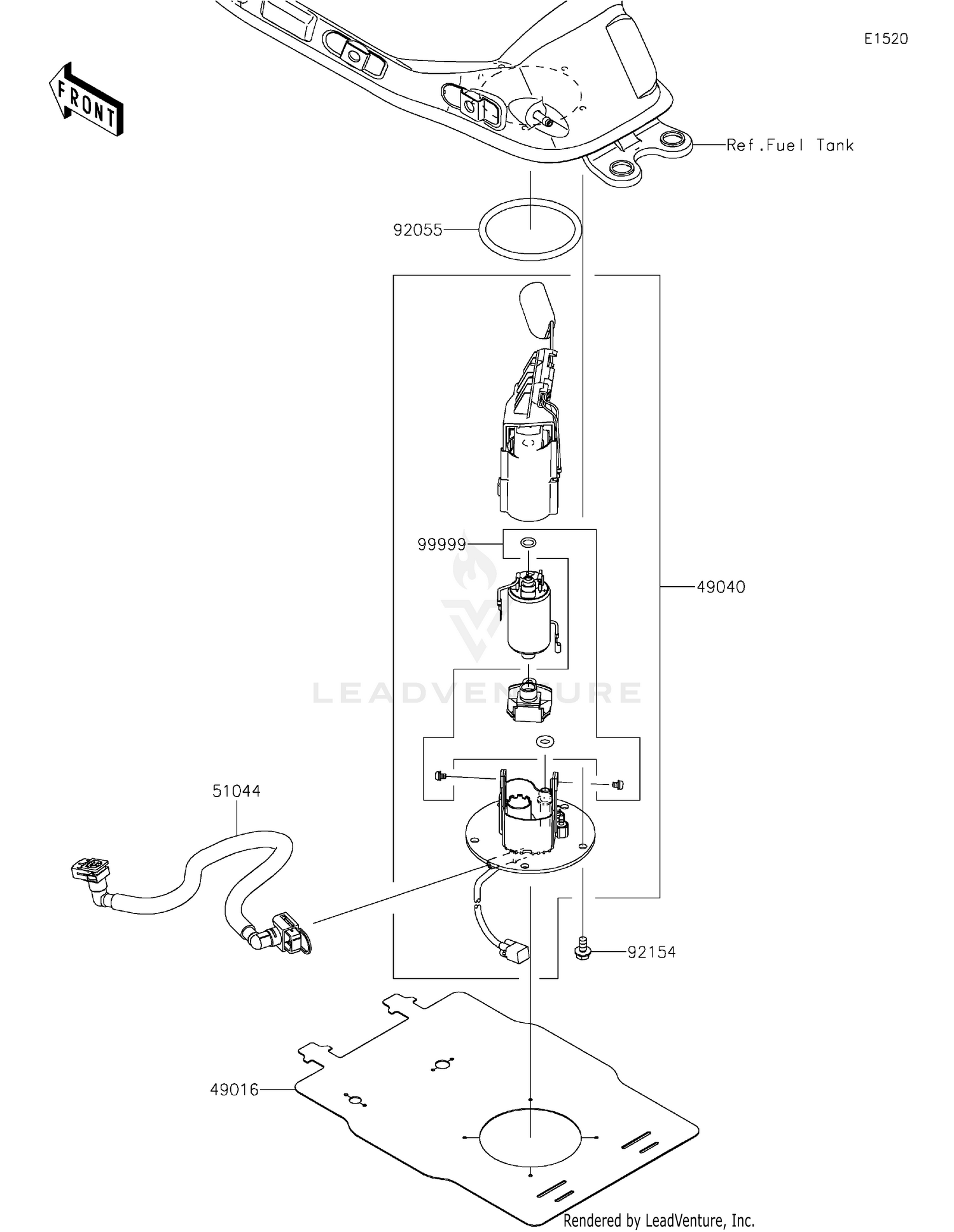

| 49016 |
49016-0641 |
COVER-SEAL Price: $22.95 |
| 49040 |
49040-0754 |
PUMP-FUEL Price: $495.55 |
| 51044 |
51044-0847 |
TUBE-ASSY,FUEL Price: $57.19 |
| 92055 |
92055-0728 |
RING-O,74.6X5.7 Price: $28.66 |
| 92154 |
92154-2335 |
BOLT,FLANGED,6X12 Price: $1.78 |
