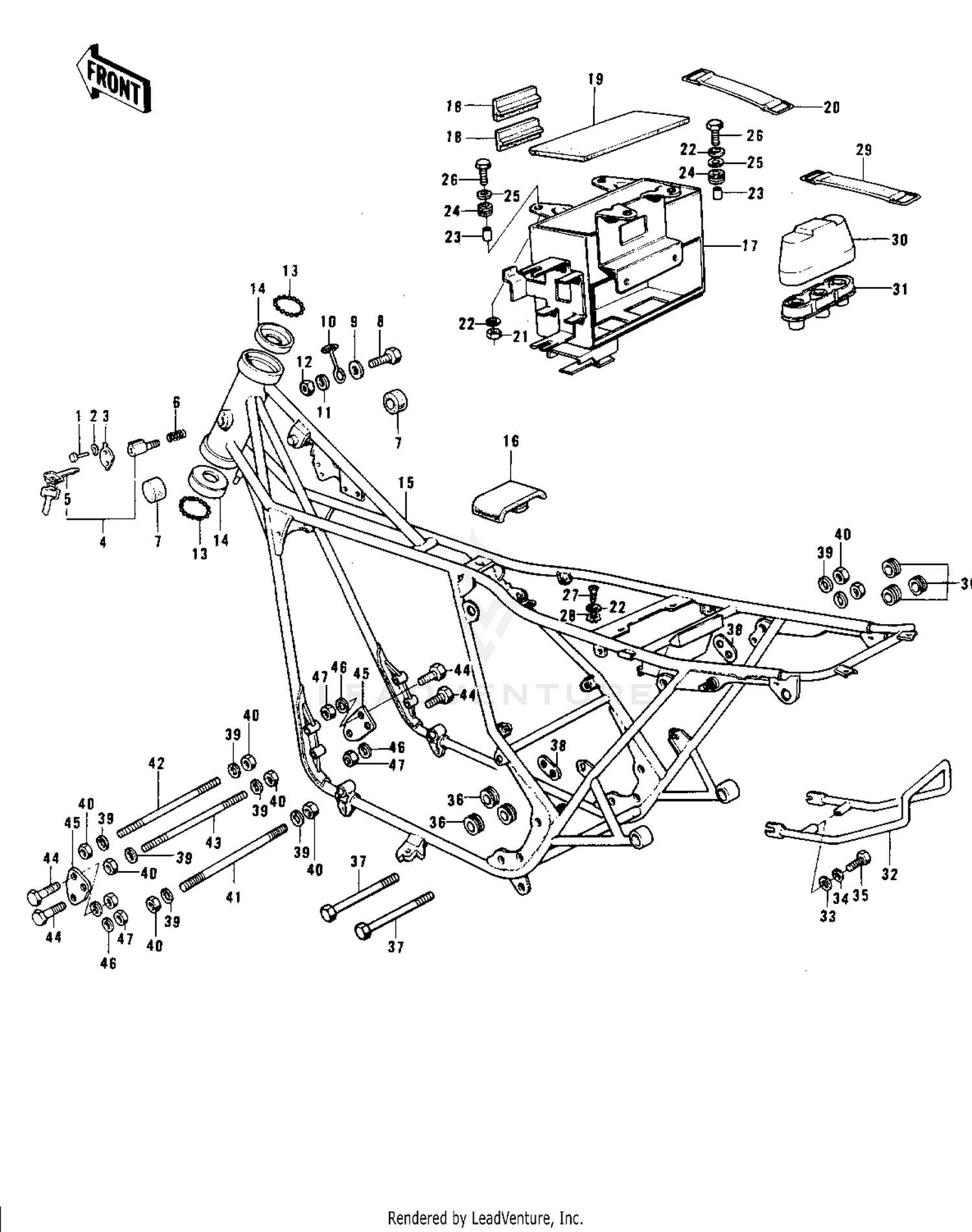

| Ref | Part Number | Description |
|---|
| 1 |
92008-007 |
SCREW,3.51MM Price: $4.11 |
| 2 |
92097-003 |
WASHER,WAVE Price: $4.50 |
| 3 |
11012-1134 |
CAP,STEERING LOCK Price: $6.87 |
| 4 |
27016-042 |
LOCK ASSY,STEERING This part replaces 27016-038. Price: $45.68 |
| 5 |
27008-055-01 |
KEY SET,#901 Price: $24.89 |
| 5 |
27008-055-10 |
KEY SET,#910 Price: $28.83 |
| 6 |
27032-001 |
SPRING-STEERING LOCK Price: $5.25 |
| 7 |
92075-101 |
DAMPER,FUEL TANK Price: $6.22 |
| 8 |
115BA0816 |
BOLT-SMALL-UPSET This part replaces 110N0816. Price: $0.70 |
| 9 |
410S0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410D0800. Price: $2.58 |
| 10 |
92037-139 |
CLAMP,CABLE Price: $3.96 |
| 11 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 12 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 13 |
600A0800 |
BALL-STEEL,1/4 Price: $0.62 |
| 14 |
92048-0036 |
RACE,STEERING STEM BEARING This part replaces 92048-006. Price: $11.61 |
| 15 |
32002-129 |
FRAME Price: $866.78 |
| 16 |
92075-214 |
DAMPER RUBBER,FL TANK Price: $35.60 |
| 17 |
32097-031 |
CASE,BATTERY Price: $82.17 |
| 18 |
32103-003 |
SEAT RECTIFIER RUBBER Price: $8.41 |
| 19 |
32103-006 |
MAT BATTERY Price: $5.56 |
| 20 |
92072-045 |
BAND,L=90 Price: $14.90 |
| 21 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 22 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 23 |
92027-129 |
COLLAR,6.8X10X8.5 Price: $5.00 |
| 24 |
92075-076 |
DAMPER RUBBER Price: $4.78 |
| 25 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 26 |
112BA0622 |
BOLT-UPSET This part replaces 112B0622. Price: $3.74 |
| 27 |
220AA0614 |
SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48 |
| 28 |
464H0600 |
WASHER LOCK 6MM Price: $0.68 |
| 29 |
92072-053 |
BAND,L=82 Price: $12.35 |
| 30 |
32132-003 |
COVER-SPARK PLUG Price: $6.23 |
| 31 |
32132-002 |
HOLDER-SPARK PLUG COV Price: $3.01 |
| 32 |
35032-028 |
STAY,REAR FENDER Price: $90.56 |
| 33 |
411AA0800 |
WASHER-PLAIN,8MM This part replaces 411B0800. Price: $0.96 |
| 34 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 35 |
115BA0820 |
BOLT-SMALL-UPSET,8X20 This part replaces 115G0820. Price: $5.52 |
| 36 |
92071-056 |
GROMMET Price: $4.26 |
| 37 |
92001-1602 |
BOLT,FLANGED,10X110 Price: $11.07 |
| 38 |
32030-023 |
PLATE-ENGINE MOUNT Price: $12.57 |
| 39 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 40 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 41 |
92003-182 |
BOLT,10X237 Price: $10.92 |
| 42 |
92003-181 |
BOLT,10X225 Price: $12.57 |
| 43 |
92003-209 |
BOLT,10X252 Price: $12.81 |
| 44 |
92001-1182 |
BOLT,10X45 Price: $10.86 |
| 44 |
92001-1581 |
BOLT,FLANGED,8X60 Price: $5.14 |
| 45 |
32030-030 |
PLATE,ENGINE MOUNT,FR Price: $12.66 |
| 46 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
