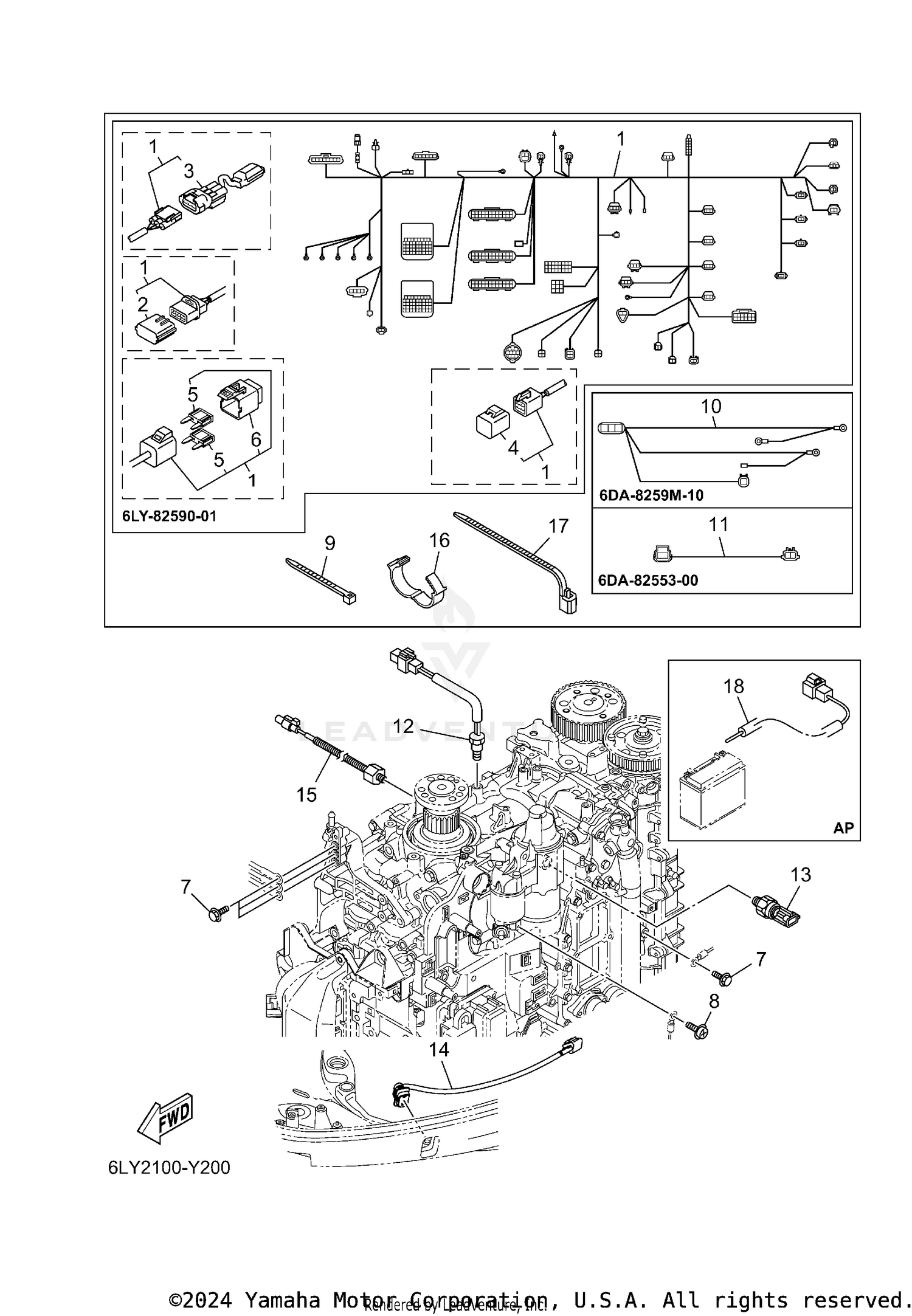

ELECTRICAL 4
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6LY-82590-01-00 | WIRE HARNESS ASSY Price: Call Us |
| 2 | 6AW-82582-00-00 | CAP 1 Price: $8.70 |
| 4 | 6Y8-82582-11-00 | CAP 1 (4 PIN) Price: $7.00 |
| 5 | 67F-82151-20-00 | FUSE (5A) Price: $6.05 |
| 6 | 69J-8215B-00-00 | CAP (BROWN) Price: $13.25 |
| 7 | 97E95-06516-00 | BOLT, HEXAGON W/W Price: $4.20 |
| 8 | 97985-04308-00 | SCREW, WITH WASHER Price: $1.55 |
| 9 | 90465-11M59-00 | CLAMP Price: $7.10 |
| 10 | 6DA-8259M-10-00 | WIRE HARNESS ASSY 2 Price: $110.40 |
| 11 | 6DA-82553-00-00 | EXTENSION, WIRE LEAD Price: $26.45 |
| 12 | 6CB-85790-00-00 | THERMOSENSOR ASSY Price: $76.85 |
| 13 | 6AW-83651-01-00 | SENDER, OIL PRESSURE Price: $363.10 |
| 14 | 6FM-82563-01-00 | TRIM & TILT SWITCH ASSY Price: $86.10 |
| 15 | 6CJ-85780-02-00 | SENSOR, KNOCK This part replaces 6CJ-85780-01-00. Price: $355.85 |
| 16 | 90464-26001-00 | CLAMP Price: $2.34 |
| 17 | 90464-15195-00 | CLAMP Price: $4.41 |
