| Ref | Part Number | Description |
|---|
| A |
293750001 |
Tie Wrap 94 mm Price: $1.03 |
| B |
293750001 |
Tie Wrap 94 mm Price: $1.03 |
| C |
293750001 |
Tie Wrap 94 mm Price: $1.03 |
| D |
293750001 |
Tie Wrap 94 mm Price: $1.03 |
| E |
293750001 |
Tie Wrap 94 mm Price: $1.03 |
| F |
293750001 |
Tie Wrap 94 mm Price: $1.03 |
| G |
414115200 |
Tie-Rap 180 mm Price: $0.11 |
| 1 |
512061233 |
Fuel Injector This part replaces 512060649. Price: $339.99 |
| 2 |
420430930 |
Gasket Price: $4.99 |
| 3 |
420441187 |
Torx Flange Screw M10 X 90 -SW 13/T50 Price: $19.99 |
| 4 |
234001410 |
Flat Washer 10 mm Price: $1.29 |
| 5 |
420924724 |
Hose Nipple This part replaces 420924720. Price: $15.49 |
| 6 |
420889201 |
Throttle Body This part replaces 420889197. Price: $1,282.49 |
| 7 |
293650158 |
Gemi Clamp Price: $8.79 |
| 13 |
512060478 |
Rear Support, PTO Price: $32.99 |
| 14 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248. Price: $0.98 |
| 15 |
234281474 |
Conical Spring Washer M8 Price: $1.49 |
| 16 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip Price: $1.99 |
| 17 |
512060712 |
FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699. Price: $82.99 |
| 18 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip Price: $1.99 |
| 19 |
234281474 |
Conical Spring Washer M8 Price: $1.49 |
| 20 |
512060559 |
Rear Support, MAG Price: $32.99 |
| 21 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip Price: $1.69 |
| 22 |
234281474 |
Conical Spring Washer M8 Price: $1.49 |
| 23 |
512060469 |
Front Support, MAG Price: $32.99 |
| 24 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip Price: $1.99 |
| 25 |
234281474 |
Conical Spring Washer M8 Price: $1.49 |
| 26 |
512060729 |
Rubber Mount Price: $67.99 |
| 27 |
512061507 |
Vibration Damper This part replaces 512060387. Price: $44.99 |
| 28 |
512060448 |
Rubber Mount Price: $52.99 |
| 29 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip Price: $1.99 |
| 30 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 31 |
207683044 |
Hex. Flange Screw M8 X 30 Price: $1.69 |
| 32 |
503183200 |
Yellow, Washer Price: $3.29 |
| 33 |
234281474 |
Conical Spring Washer M8 Price: $1.49 |
| 34 |
250000796 |
Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000570. Price: $2.19 |
| 35a |
512060627 |
Stopper Price: $10.99 |
| 35b |
XXX |
Not Available As Spare Parts Price: Call Us |
| 36 |
512060576 |
Stopper Support Price: $31.99 |
| 37 |
207562544 |
Hex. Flange Screw M6 X 25 Price: $1.69 |
| 38 |
512060740 |
Formed Hose, Output Price: $32.99 |
| 39 |
219704408 |
Tubing 16 Mm 1000Mm Long Price: $7.69 |
| 40 |
293650214 |
Norma Spring Clamp Price: $15.99 |
| 41 |
293650046 |
Oetiker Clamp Price: $2.99 |
| 42 |
512060298 |
Solenoid Support Price: $14.49 |
| 43 |
207652044 |
Hex.Flange Screw M5 X 20 Price: $1.99 |
| 44 |
250000528 |
Torx Screw M5 X 20 Price: $2.19 |
| 45 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. Price: $4.29 |
| 46 |
512060611 |
Throttle Cable Price: $114.99 |
| 47 |
414274500 |
Circlip Price: $0.92 |
| 48 |
219704399 |
Was 409901700 Tubing (9 mm) Price: $86.99 |
| 49 |
512060313 |
Protector Price: $10.99 |
| 50 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 52 |
414440800 |
Socket Set Screw M8 X 10 Price: $4.19 |
| 53 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 54 |
512060860 |
Lower Housing This part replaces 512060430. Price: $17.49 |
| 55 |
512061252 |
Throttle Handle Ass'y This part replaces 512060616. Price: $129.99 |
| 56 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 57 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 58 |
732601143 |
Flange Screw Price: $4.19 |
| 59 |
512060953 |
Ignition Coil This part replaces 512060711. Price: $134.99 |
| 60 |
512061126 |
Ignition Cable, 177mm long This part replaces 512060094. Price: $29.99 |
| 61 |
710000992 |
Clip Price: $4.39 |
| 62 |
250000253 |
Hex. Flange Screw M6 X 1.0 X 30 Price: $2.29 |
| 63 |
293100003 |
Nut Welded, M6 Price: $9.29 |
| 64 |
512060888 |
Ignition Coils Support This part replaces 512060696. Price: $11.99 |
| 65 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 Price: $1.49 |
| 66 |
512060780 |
Calibrated Module This part replaces 512060786. Price: $749.99 |
| 67 |
512060858 |
Calibrated Module Support This part replaces 512060297. Price: $14.49 |
| 68 |
250200040 |
Flat Washer Price: $1.99 |
| 69 |
250000297 |
Truss Head Torx Screw K50 X 20 Price: $2.19 |
| 70 |
219704709 |
NEEDS DESCRIPTION This part replaces 219704409. Price: $11.63 |
| 71 |
414814100 |
Male Connector Price: $2.19 |
| 72 |
415130430 |
Spark Plug NGK PZFR6F This part replaces 415129432. Price: $29.99 |
| 74 |
512060339 |
NOISE SHIELD - Call your local BRP dealership Price: $17.99 |
| 75 |
512060634 |
Noise Shield Price: $18.49 |
| 76 |
512060343 |
Interior Noise Foam Price: $21.99 |
| 77 |
512060344 |
Upper Exterior Noise Foam Price: $10.99 |
| 78 |
512060362 |
LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership Price: $13.49 |
| 79 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 80 |
512060574 |
Heat Shield Price: $7.99 |
| 81 |
512060575 |
Heat Shield Price: $8.79 |
| 82 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 83 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 84 |
250000528 |
Torx Screw M5 X 20 Price: $2.19 |
| 85 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. Price: $4.29 |
| 86 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 87 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 88 |
518325560 |
Adhesive Patch Price: $4.69 |

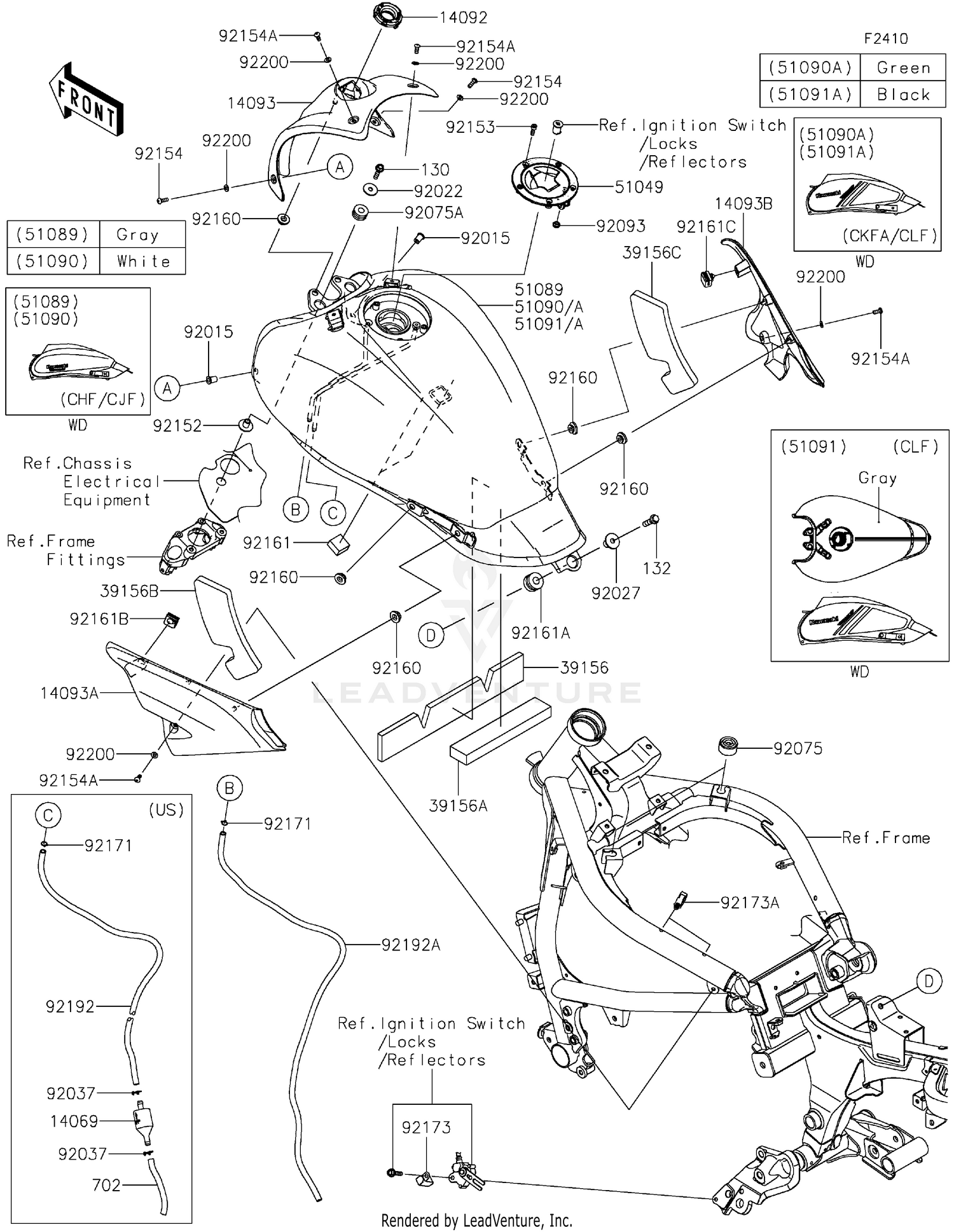

| 14092 |
14092-1033 |
COVER,IGNITION SW. Price: $5.01 |
| 14093 |
14093-0105-18T |
COVER,TANK,FR,F.S.BLACK Price: $152.82 |
| 14093A |
14093-0106 |
COVER,TANK,LH Price: $78.55 |
| 14093B |
14093-0107 |
COVER,TANK,RH Price: $76.06 |
| 39156 |
39156-1833 |
PAD,53X334X10 Price: $47.83 |
| 39156A |
39156-1893 |
PAD,38X200X20 Price: $42.11 |
| 39156B |
39156-1929 |
PAD,TANK COVER,LH Price: $11.08 |
| 39156C |
39156-1930 |
PAD,TANK COVER,RH Price: $11.08 |
| 51049 |
51049-0749 |
CAP-TANK,FUEL This part replaces 51049-0714. Price: $136.31 |
| 51090 |
51090-5165-54X |
TANK-COMP-FUEL,P.B.WHITE Price: $1,081.89 |
| 92015 |
92015-1757 |
NUT,WELL,5MM Price: $7.29 |
| 92022 |
92022-228 |
WASHER,7X24X1.6 Price: $3.92 |
| 92027 |
92027-1780 |
COLLAR,L=19.3 Price: $6.57 |
| 92075 |
92075-015 |
DAMPER Price: $5.00 |
| 92075A |
92075-1690 |
DAMPER,10X24X12 Price: $5.00 |
| 92093 |
92093-1030 |
SEAL,FUEL TANK CAP Price: $7.77 |
| 92152 |
92152-0910 |
COLLAR,6.5X10X13.1 Price: $1.63 |
| 92153 |
92153-1616 |
BOLT,SOCKET,5X16 Price: $1.34 |
| 92154 |
92154-1470 |
BOLT,SOCKET,5X16 Price: $1.48 |
| 92154A |
92154-1471 |
BOLT,SOCKET,5X12 Price: $1.48 |
| 92160 |
92160-1613 |
DAMPER Price: $3.74 |
| 92161 |
92161-0792 |
DAMPER,T=13 Price: $3.71 |
| 92161A |
92161-1494 |
DAMPER,12X28X17 Price: $3.02 |
| 92161B |
92161-1679 |
DAMPER,TANK COVER,LH Price: $2.26 |
| 92161C |
92161-1744 |
DAMPER,TANK COVER,RH Price: $2.75 |
| 92173 |
92173-0833 |
CLAMP Price: $3.74 |
| 92173A |
92173-0868 |
CLAMP,HOLDER CLIP Price: $3.02 |
