| Ref | Part Number | Description |
|---|
| 1 |
502007836 |
LH Lower Bottom Pan Price: $224.99 |
| 2 |
502007837 |
RH Lower Bottom Pan Price: $199.99 |
| 3 |
502007255 |
Heat Isolation Plate Price: $5.79 |
| 4 |
293150211 |
Rivet Price: $2.29 |
| 5 |
293150104 |
Pop Rivet 3/16" Price: $1.09 |
| 6 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. Price: $1.19 |
| 7 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. Price: $2.19 |
| 13 |
502007688 |
Support Price: $18.49 |
| 14 |
207667056 |
Hex. Flange Screw M6 X 70 Price: $4.49 |
| 15 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 16 |
502007140 |
Front Grille Price: $89.99 |
| 17 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. Price: $2.19 |
| 18 |
250000722 |
Torx Screw M6 X 20 Price: $1.69 |
| 20 |
502007133 |
Insulator Price: $31.99 |
| 21 |
502007132 |
Insulator Price: $31.99 |
| 23 |
502007009 |
Insulator Price: $19.49 |
| 24 |
250000722 |
Torx Screw M6 X 20 Price: $1.69 |
| 26 |
502007088 |
Insulator Price: $69.99 |
| 27 |
502007131 |
Insulator Price: $31.99 |
| 28 |
502007185 |
Insulator Price: $29.99 |
| 29 |
250000722 |
Torx Screw M6 X 20 Price: $1.69 |
| 30 |
502007684 |
Clear Anod. Bumper Price: $124.99 |
| 31 |
293730041 |
Full Moon Dart 8 mm Price: $2.29 |
| 32 |
502007535 |
LH Bottom Pan Fastener Price: $38.99 |
| 33 |
502007536 |
RH Bottom Pan Fastener Price: $38.99 |
| 34 |
605636003 |
Clinch Nut M6 Hexsert Price: $4.29 |
| 35 |
207664044 |
Hex. Flange Screw M6 X 40 Price: $2.19 |
| 36 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 37 |
502006927 |
Bumper Support Price: $32.99 |
| 38 |
207662044 |
Hex. Flange Screw M6 X 20 Price: $2.09 |
| 39 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 40 |
518328879 |
Oil Plate Price: $13.49 |
| 41 |
605636003 |
Clinch Nut M6 Hexsert Price: $4.29 |
| 42 |
250000722 |
Torx Screw M6 X 20 Price: $1.69 |
| 43 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip Price: $0.98 |
| 44 |
234082410 |
Flat Washer 8 mm Price: $1.49 |
| 45 |
250000722 |
Torx Screw M6 X 20 Price: $1.69 |

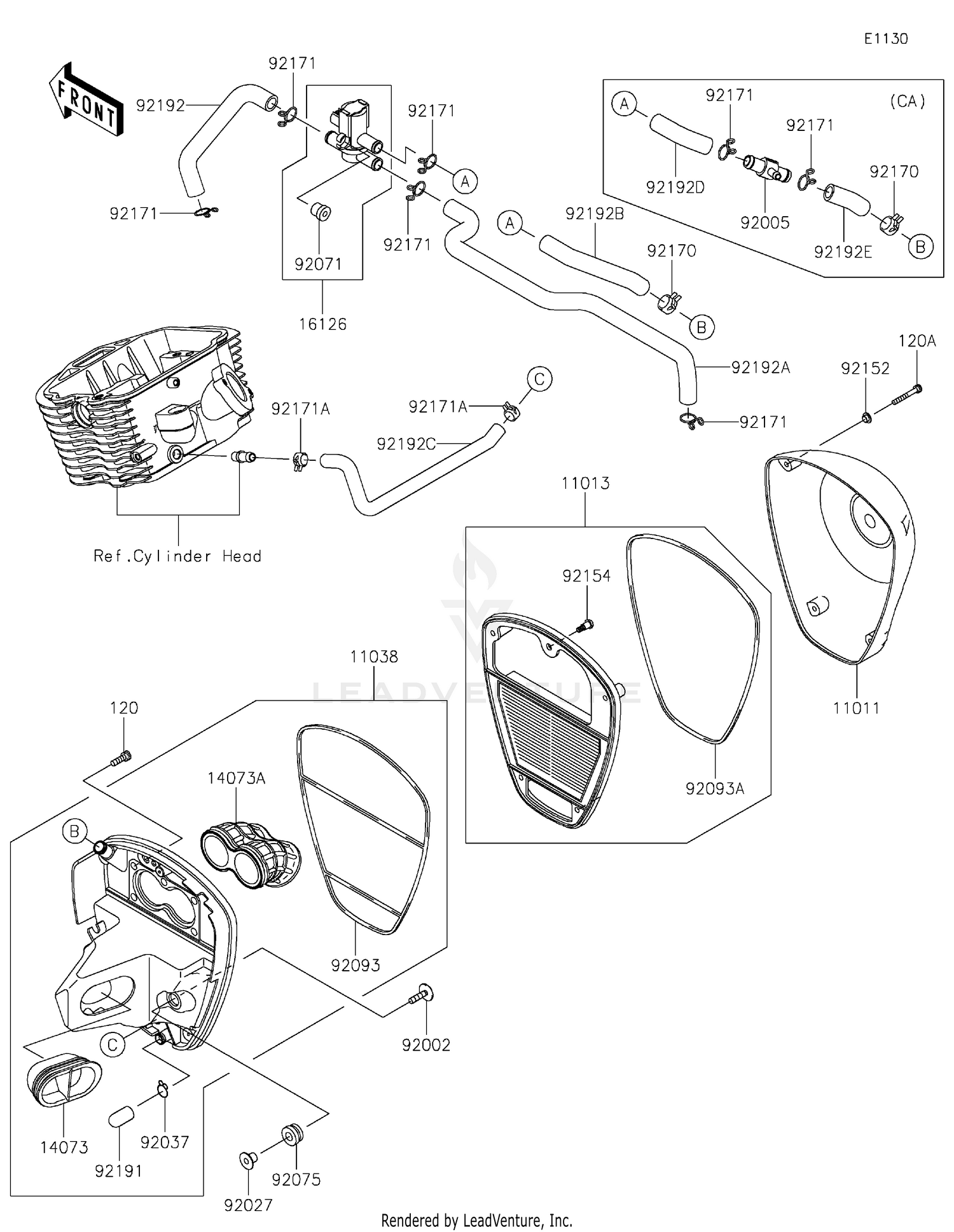

| 120 |
120CA0618 |
BOLT-SOCKET,6X18 Price: $3.07 |
| 120A |
120CC0535 |
BOLT-SOCKET,5X35 Price: $1.69 |
| 11011 |
11011-0080 |
CASE-AIR FILTER Price: $116.10 |
| 11013 |
11013-0015 |
ELEMENT-AIR FILTER Price: $46.64 |
| 11038 |
11038-0015 |
CASE-ASSY-AIR FILTER Price: $120.37 |
| 14073 |
14073-0103 |
DUCT,INTAKE Price: $17.78 |
| 14073A |
14073-0104 |
DUCT,THROTTLE BODY Price: $29.16 |
| 16126 |
16126-0022 |
VALVE Price: $212.44 |
| 92002 |
92002-1135 |
BOLT,6X25 Price: $4.31 |
| 92027 |
92027-1062 |
COLLAR,L=12 Price: $7.34 |
| 92037 |
92037-1900 |
CLAMP,14.5MM Price: $4.87 |
| 92071 |
92071-0026 |
GROMMET Price: $3.87 |
| 92075 |
92075-1123 |
DAMPER,RUBBER Price: $5.00 |
| 92093 |
92093-0054 |
SEAL Price: $6.33 |
| 92093A |
92093-0057 |
SEAL Price: $13.48 |
| 92152 |
92152-0451 |
COLLAR Price: $3.90 |
| 92154 |
92172-0091 |
SCREW,5X16.5 This part replaces 92154-0120. Price: $1.92 |
| 92170 |
92170-1989 |
CLAMP Price: $3.86 |
| 92171A |
92171-1441 |
CLAMP Price: $4.56 |
| 92191 |
92191-1704 |
TUBE Price: $7.56 |
| 92192 |
92192-0266 |
TUBE,ASV-FR HEAD Price: $10.21 |
| 92192A |
92192-0267 |
TUBE,ASV-RR HEAD Price: $20.04 |
| 92192C |
92192-0269 |
TUBE,BLOWBY Price: $11.82 |
