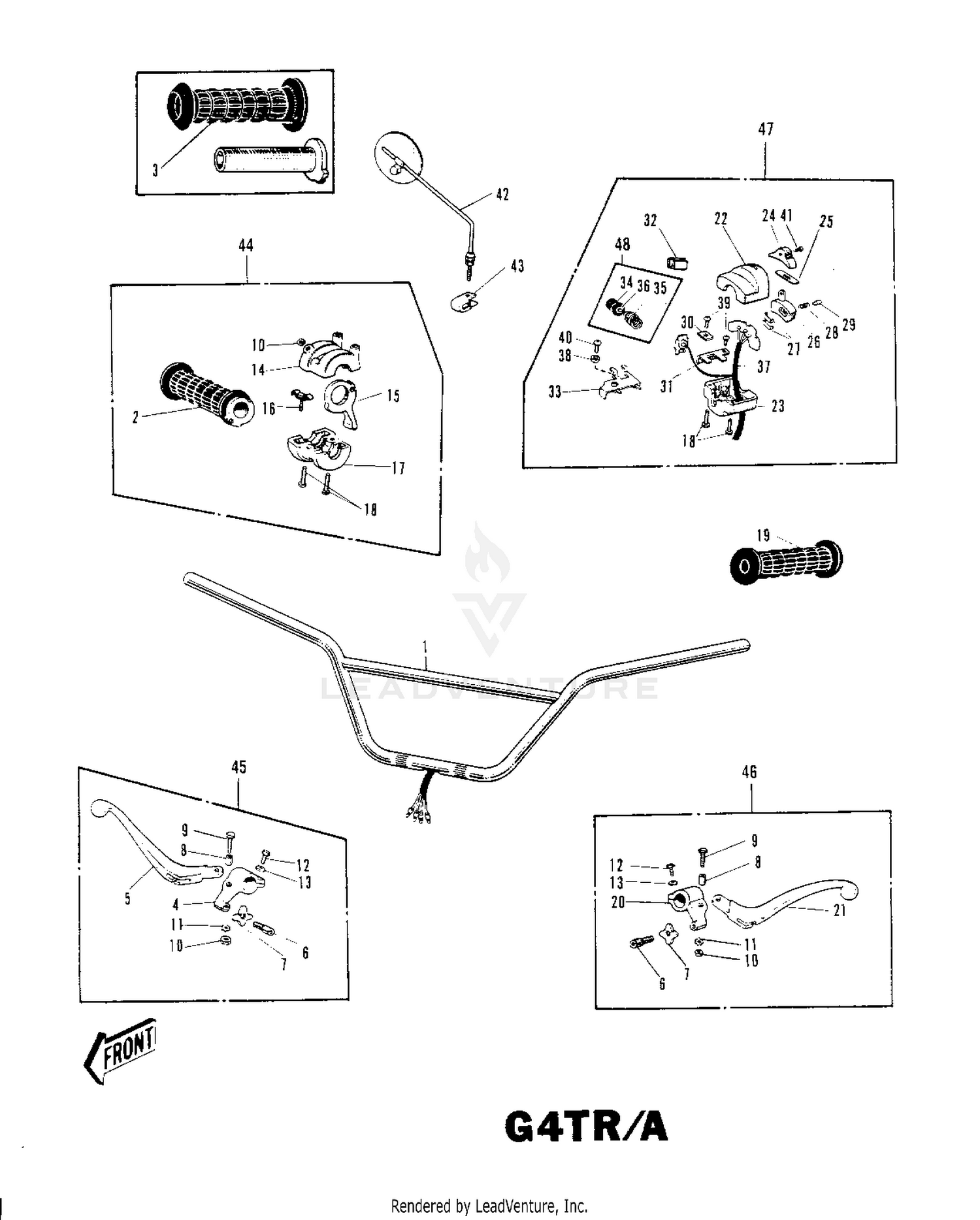

| Ref | Part Number | Description |
|---|
| 1 |
46004-004 |
HANDLEBAR Price: $104.46 |
| 2 |
46019-013 |
GRIP ASSY-THROTTLE Price: $21.26 |
| 3 |
46061-012 |
RUBBER-R.H GRIP Price: $35.79 |
| 4 |
46060-006 |
HOLDER-FR BRAKE LEVER Price: $34.55 |
| 5 |
46058-004 |
LEVER FRONT BRAKE Price: $24.84 |
| 6 |
46055-009 |
SCREW,CABLE ADJUST Price: $19.07 |
| 7 |
92210-1131 |
NUT,CABLE ADJUST LOCK This part replaces 46056-001. Price: $5.55 |
| 8 |
46059-011 |
COLLAR LEVER Price: $8.03 |
| 9 |
92007-020 |
BOLT HEX HEAD 5X20 Price: $6.37 |
| 10 |
312AA0500 |
NUT-HEX,5MM This part replaces 312B0500. Price: $0.47 |
| 11 |
464EA0500 |
WASHER-TOOTHED This part replaces 464H0500. Price: $1.01 |
| 12 |
110N0622 |
BOLT, HEX HEAD 6X22 Price: $4.56 |
| 13 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 14 |
46041-005 |
CASE-R.H.UPPER Price: $80.99 |
| 15 |
46096-006 |
LEVER-STARTER Price: $36.18 |
| 16 |
46024-002 |
SPRING THROTTLE GRIP Price: $0.81 |
| 17 |
46023-005 |
CASE-R.H LOWER Price: $18.64 |
| 18 |
220AA0522 |
SCREW-PAN-CROS,5X22 This part replaces 220B0522. Price: $0.75 |
| 19 |
46075-017 |
RUBBER-L.H GRIP Price: $33.73 |
| 20 |
46094-010 |
HOLDER,CLUTCH LEVER Price: $42.97 |
| 21 |
46092-015 |
LEVER-CLUTCH Price: $20.99 |
| 22 |
46086-013 |
CASE L.H SWITCH UPPER Price: $12.76 |
| 23 |
46077-015 |
CASE L.H SWITCH LOWER Price: $13.52 |
| 24 |
46044-011 |
KNOB-L.H SWITCH Price: $8.72 |
| 25 |
46031-003 |
SPRING L.H SW KNOB Price: $1.92 |
| 26 |
46089-003 |
SWITCH L.H Price: $4.03 |
| 27 |
46080-002 |
PLATE L.H SW CONTACT Price: $1.76 |
| 28 |
46031-004 |
SPRING L.H SWITCH Price: $1.84 |
| 29 |
46079-002 |
CONTACT L.H SWITCH Price: $1.76 |
| 30 |
46085-013 |
HOLDER L.H SW UPPER A Price: $1.76 |
| 31 |
46085-014 |
HOLDER L.H SW LOWER B Price: $1.73 |
| 32 |
46081-001 |
CAP L.H UPPER CASE Price: $0.71 |
| 33 |
46085-015 |
HOLDER L.H SW LOWER Price: $1.35 |
| 34 |
27010-1009 |
SWITCH ASSY,HORN BUTN Price: $9.20 |
| 35 |
27010-1009 |
SWITCH ASSY,HORN BUTN Price: $9.20 |
| 36 |
27010-1009 |
SWITCH ASSY,HORN BUTN Price: $9.20 |
| 37 |
46082-016 |
WIRING HARNESS COMP Price: $12.08 |
| 38 |
92095-010 |
WASHER Price: $3.64 |
| 39 |
92009-1123 |
SCREW,3X5 This part replaces 220B0305A. Price: $0.59 |
| 40 |
220AA0308 |
SCREW-PAN-CROS,3X8 This part replaces 220B0308. Price: $0.59 |
| 41 |
221B0308A |
SCREW CNTSNK HD 3X8 Price: $5.98 |
| 42 |
56001-005 |
REAR VIEW MIRROR Price: $12.32 |
| 43 |
56006-001 |
BRACKET Price: $18.51 |
| 44 |
46018-019 |
CASE ASSY-R.H Price: $99.79 |
| 45 |
46021-009 |
LEVER ASSY FRNT BRAKE Price: $36.68 |
| 46 |
46076-013 |
LEVER ASSY CLUTCH Price: $22.76 |
| 47 |
46091-003 |
CASE ASSY L.H Price: $37.58 |
