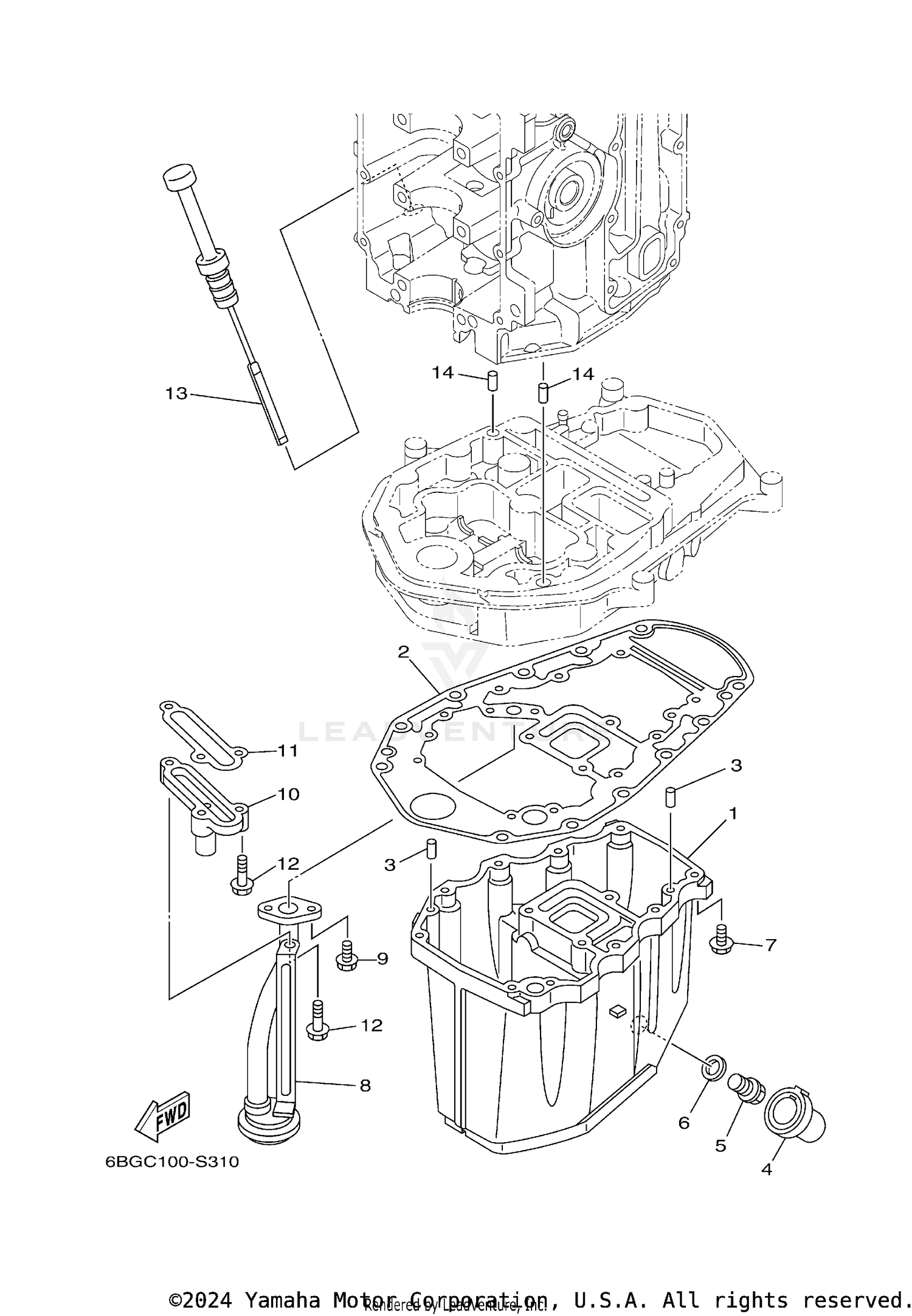

OIL PAN
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6BG-15311-10-CA | OIL PAN Price: $348.15 |
| 2 | 69W-15312-01-00 | GASKET, OIL PAN Price: $47.30 |
| 3 | 93606-12019-00 | PIN, DOWEL Price: $4.60 |
| 5 | 90340-14M06-00 | PLUG, STRAIGHT SCREW Price: $14.20 |
| 6 | 90430-14M09-00 | GASKET Price: $2.55 |
| 7 | 97E75-06525-00 | BOLT, HEXAGON W/W Price: $1.15 |
| 8 | 62Y-13411-00-00 | STRAINER, OIL Price: $71.70 |
| 9 | 97513-06516-00 | BOLT, WITH WASHER Price: $1.95 |
| 10 | 6BG-11576-00-94 | BODY, RELIEF Price: $33.30 |
| 11 | 62Y-13475-00-00 | GASKET Price: $6.75 |
| 12 | 97513-06525-00 | BOLT, WITH WASHER Price: $2.20 |
| 13 | 6BG-15362-00-00 | PLUG, OIL LEVEL Price: $27.30 |
