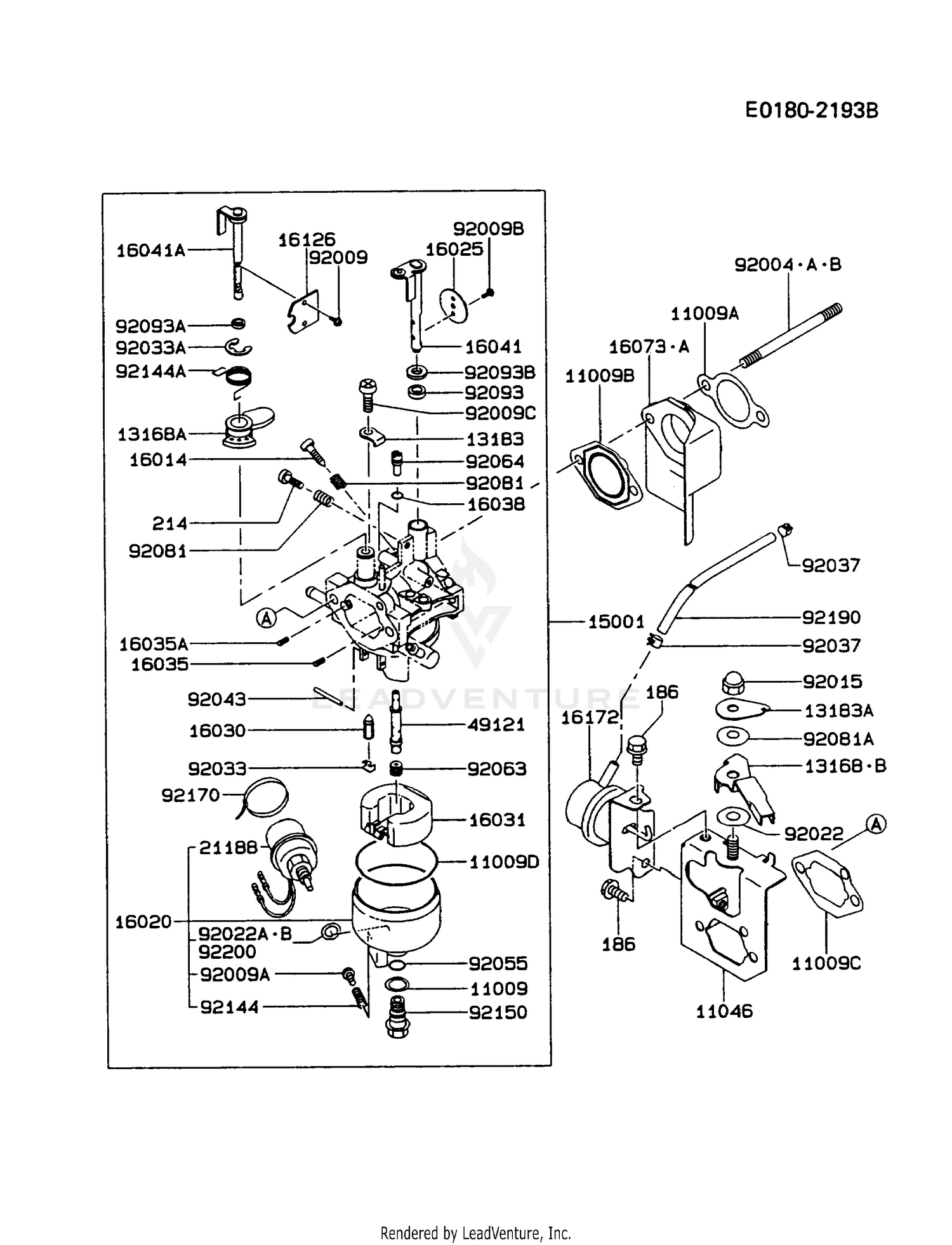

CARBURETOR
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 11009 | 11009-2769 | GASKET Price: $0.84 |
| 11009A | 11009-2939 | GASKET This part replaces 11009-2825. Price: $1.66 |
| 11009B | 11009-2827 | GASKET-CARBURETOR Price: $3.58 |
| 11009C | 11060-2334 | GASKET,AIR FILTER This part replaces 11009-2867. Price: $1.79 |
| 11009D | 11009-2024 | GASKET Price: $4.15 |
| 11046 | 11046-2125 | BRACKET Price: $8.24 |
| 13168A | 13168-2325 | LEVER,CHOCK Price: $8.25 |
| 13168B | 13168-2345 | LEVER Price: $2.01 |
| 13183 | 13183-2252 | PLATE Price: $3.50 |
| 13183A | 13183-2323 | PLATE Price: $1.19 |
| 15001 | 15001-2985 | CARBURETOR-ASSY Price: $210.74 |
| 16014 | 16014-2010 | SCREW-ADJUSTER Price: $5.47 |
| 16020 | 16020-2144 | CHAMBER-FLOAT This part replaces 16020-2105. Price: $143.47 |
| 16025 | 16025-2126 | VALVE-THROTTLE,#170 Price: $5.93 |
| 16030 | 16030-2073 | VALVE-NEEDLE SPRING Price: $23.20 |
| 16031 | 16031-2066 | FLOAT Price: $27.00 |
| 16035 | 16035-2061 | JET-AIR #1.2 Price: $7.52 |
| 16035A | 16035-2058 | JET-AIR #1.6 Price: $6.87 |
| 16038 | 16038-024 | O RING Price: $1.56 |
| 16041 | 16041-2189 | SHAFT-CARBURETOR,THROTTLE Price: $17.02 |
| 16041A | 16041-2202 | SHAFT-CARBURETOR,THOT Price: $21.32 |
| 16073A | 16073-2154 | INSULATOR Price: $5.07 |
| 16126 | 16126-2177 | VALVE,CHOKE Price: $3.88 |
| 16172 | 16172-2051 | ACTUATOR Price: $63.00 |
| 21188 | 21188-2003 | SOLENOID Price: $74.08 |
| 49121 | 49121-2119 | NOZZLE-MAIN,#27A Price: $24.13 |
| 92004A | 92004-2130 | STUD,6X82 Price: $3.83 |
| 92009 | 92009-2081 | SCREW Price: $1.72 |
| 92009A | 92009-2025 | SCREW,DRAIN Price: $2.24 |
| 92009B | 92009-2080 | SCREW Price: $1.96 |
| 92009C | 92009-2244 | SCREW Price: $1.75 |
| 92015 | 92015-2272 | NUT Price: $2.28 |
| 92022 | 92022-2103 | WASHER Price: $1.09 |
| 92022A | 92022-2231 | WASHER Price: $1.40 |
