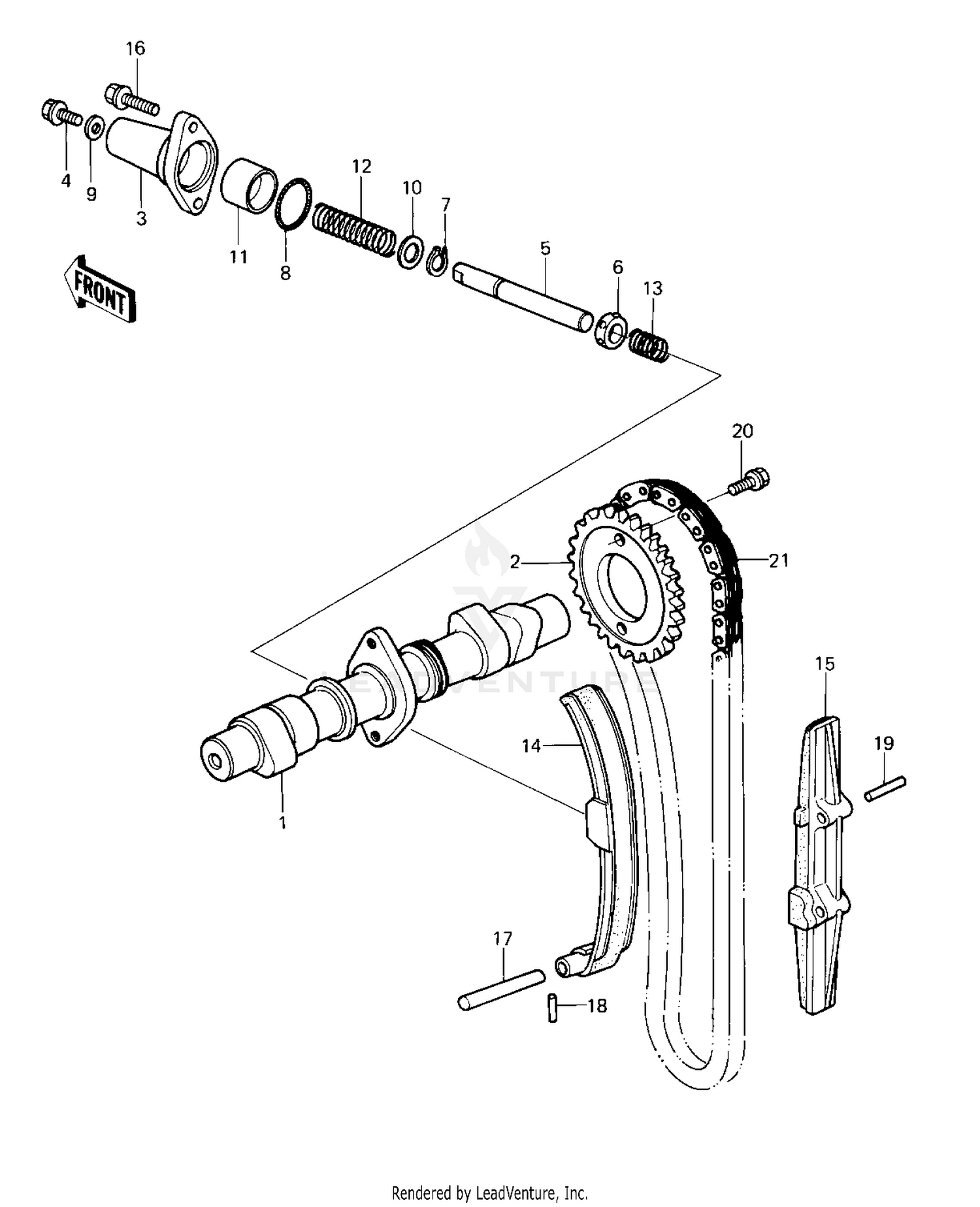

| Ref | Part Number | Description |
|---|
| 1 |
12044-5001 |
CAMSHAFT,VALVE Price: $161.59 |
| 2 |
12046-1022 |
SPROCKET,CAM,46T Price: $51.21 |
| 3 |
12049-1017 |
TENSIONER,CAM CHAIN This part replaces 12049-1010. Price: $26.03 |
| 4 |
130N0614 |
BOLT-FLANGED,6X14 Price: $4.58 |
| 5 |
13116-1022 |
ROD,PUSH,TENSIONER Price: $15.75 |
| 6 |
14020-1002 |
RETAINER Price: $17.55 |
| 7 |
480J1000 |
CIRCLIP-TYPE-C,10MM Price: $0.65 |
| 8 |
670D2021 |
O RING,21MM Price: $6.85 |
| 9 |
92022-077 |
WASHER,6.1X12X1 Price: $3.99 |
| 10 |
92022-1181 |
WASHER,10.2X14.5X1.0 Price: $3.92 |
| 11 |
92027-1240 |
COLLAR,TENSIONER Price: $15.92 |
| 12 |
92081-1206 |
SPRING,TENSIONER Price: $5.56 |
| 13 |
92081-1207 |
SPRING,TENSIONER Price: $5.17 |
| 14 |
12053-1041 |
GUIDE,CHAIN,FRONT Price: $84.41 |
| 15 |
12053-1042 |
GUIDE,CHAIN,REAR Price: $49.59 |
| 16 |
130CA0620 |
BOLT-FLANGED,6X20 This part replaces 130G0620. Price: $1.70 |
| 17 |
39115-1001 |
SHAFT,CHAIN GUIDE Price: $4.36 |
| 18 |
551A0325 |
PIN,DOWEL,3X25 Price: $3.42 |
| 19 |
551A0532 |
PIN,DOWEL,5X32 Price: $3.38 |
| 20 |
92003-208 |
BOLT,FLANGED,6X11 Price: $4.31 |
