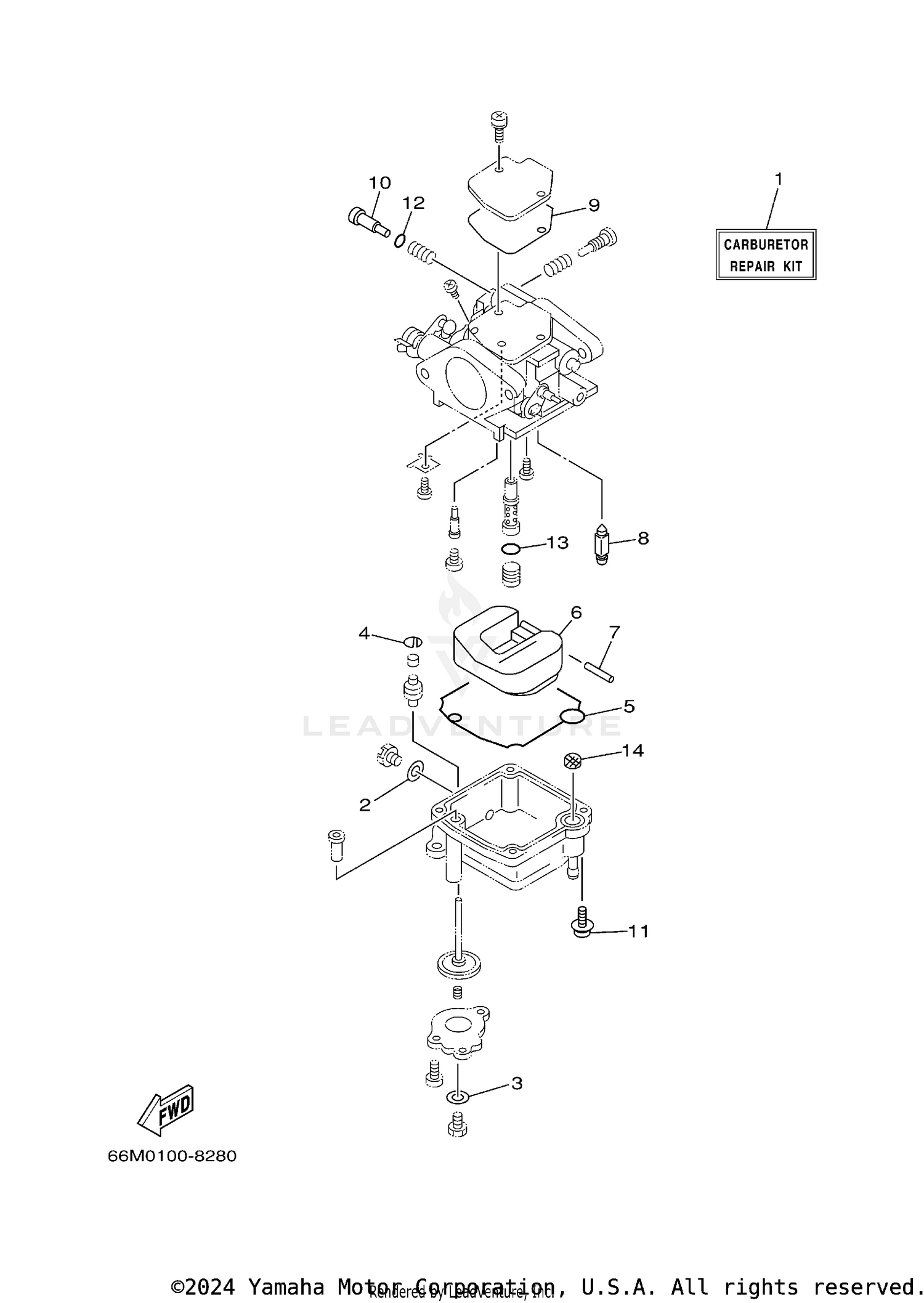

REPAIR KIT 2
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 66M-W0093-01-00 | CARBURETOR REPAIR KIT Price: $66.60 |
| 2 | 66M-14398-00-00 | GASKET Price: $11.05 |
| 3 | 6L2-14398-00-00 | GASKET Price: $6.40 |
| 4 | 66M-14377-00-00 | STOPPER Price: $10.35 |
| 5 | 66M-14384-00-00 | GASKET, FLOAT CHAMBER Price: $12.85 |
| 6 | 6L2-14385-00-00 | FLOAT Price: $39.65 |
| 7 | 6E5-14386-01-00 | PIN, FLOAT Price: $5.65 |
| 8 | 6L2-14392-00-00 | VALVE, NEEDLE Price: $28.10 |
| 9 | 62Y-14399-00-00 | GASKET Price: $16.05 |
| 10 | 12V-14105-00-00 | PILOT SCREW SET This part replaces 5H0-14323-00-00. Price: $15.49 |
| 11 | 97980-04112-00 | SCREW, WITH WASHER Price: $3.20 |
| 12 | 5H0-14397-00-00 | O-RING This part replaces 62Y-14397-00-00. Price: $7.49 |
| 13 | 6F5-14397-00-00 | O-RING Price: $2.50 |
