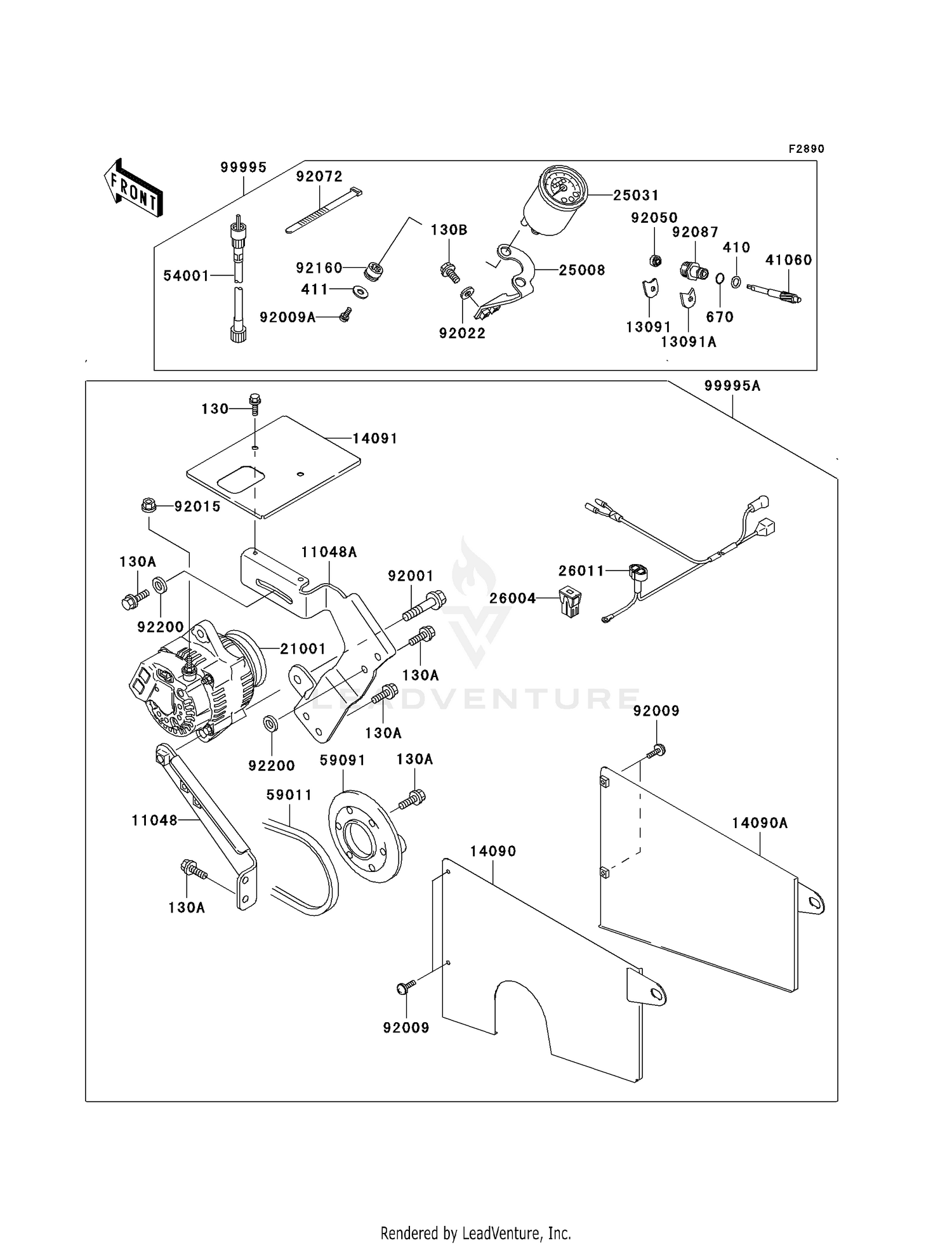

OPTIONAL PARTS

OPTIONAL PARTS

Parts (33)

RefPart NumberDescription
130 130AB0608 BOLT-FLANGED This part replaces 130C0608. Price: $3.51
130A 130BA0820 BOLT-FLANGED,8X20 This part replaces 130H0820. Price: $4.14
130B 130BB0614 BOLT-FLANGED,6X14 This part replaces 130J0614. Price: $2.49
410 410AA0600 WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31
411 411AA0800 WASHER-PLAIN,8MM This part replaces 411B0800. Price: $0.96
670 670D1510 O RING,10MM Price: $4.69
11048 11048-1243 BRACKET,ENGINE,LWR Price: $186.25
11048A 11048-1244 BRACKET,GENERATOR Price: $384.12
13091 13091-1008 HOLDER,TACHOMETER2.3T Price: $4.26
13091A 13091-1009 HOLDER,TACHOMETR,3.2T Price: $4.26
14090 14090-1260 COVER,ENCLOSURE,LH This part replaces 14090-1354. Price: $56.95
14090A 14090-1261 COVER,ENCLOSURE,RH This part replaces 14090-1355. Price: $56.95
14091 14091-1377 COVER,GENERATOR Price: $49.82
21001 21001-1129 GENERATOR Price: $818.88
25008 25008-1228 BRACKET-METER Price: $40.27
25031 25031-1190 METER-ASSY,MPH Price: $229.73
26004 26004-0036 FUSE-ASSY,50A This part replaces 26004-1096. Price: $4.83
26011 26011-1758 WIRE-LEAD,GENERATOR Price: $97.28
41060 41060-1148 GEAR-METER SCREW Price: $59.59
54001 54001-1248 CABLE-SPEEDMETER Price: $35.15
59011 59011-2056 BELT,FAN Price: $21.20
59091 59091-2053 PULLEY Price: $58.46
92001 92001-1522 BOLT,BLACK,10X47 Price: $6.22
92009 92009-1694 SCREW,6X16 This part replaces 92009-1621. Price: $3.92
92009A 92009-3740 SCREW,5X12 Price: $4.18
92015 92015-1367 NUT,FLANGED,6MM Price: $3.69
92022 92022-1093 WASHER,6.5X16X1.0 Price: $2.08
92050 92050-075 OIL SEAL Price: $11.39
92072 92072-1293 BAND,L=140 Price: $7.11
92087 92087-010 GUIDE,TACHOMETER GEAR Price: $24.19
92160 92160-1461 DAMPER Price: $7.49
92200 92200-1055 WASHER,8.5X20X2.3 Price: $3.94
99995 99999-7503 KIT.,SPEEDOMETER This part replaces 99995-1480. Price: $313.71
