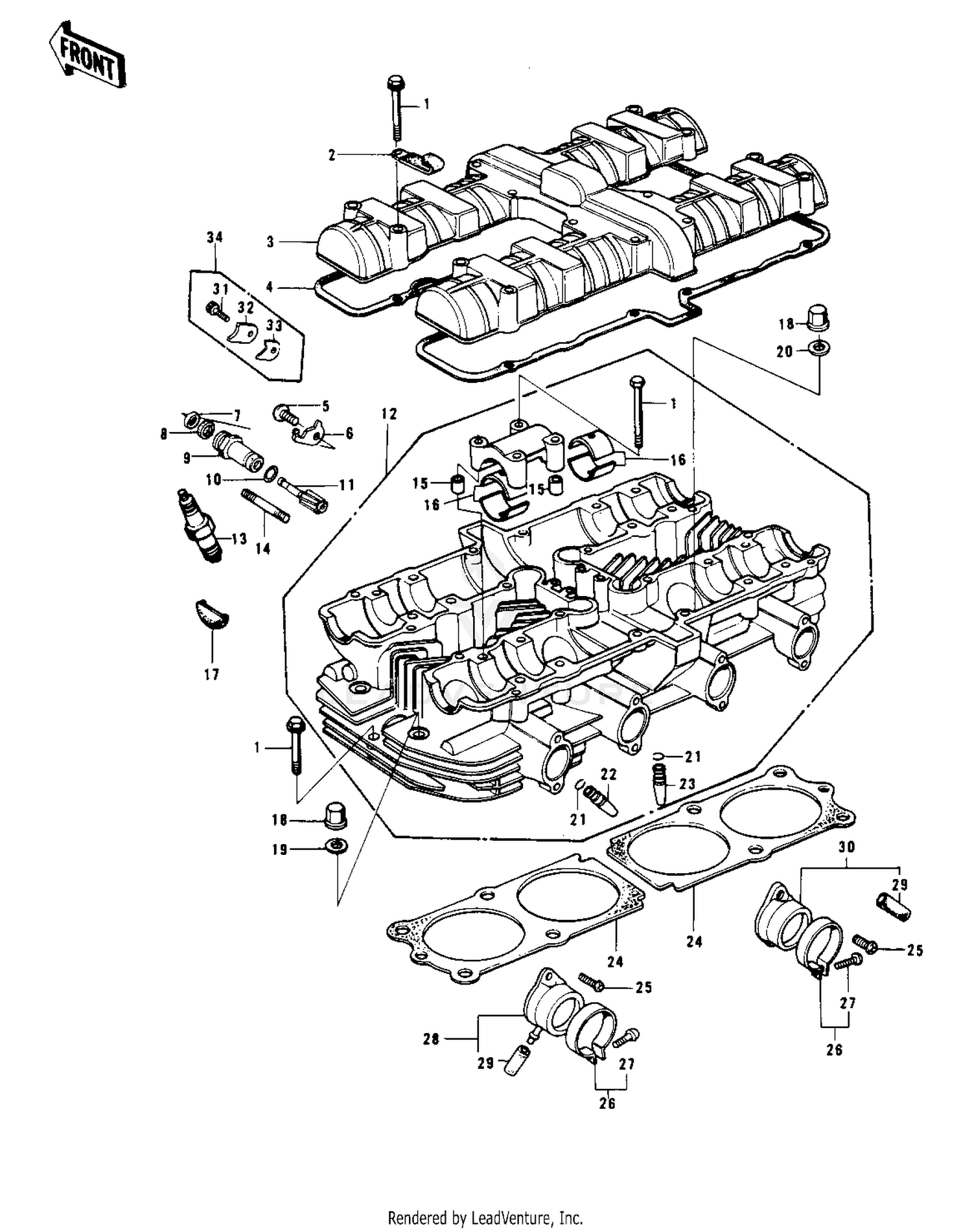

| Ref | Part Number | Description |
|---|
| 1 |
92003-092 |
BOLT,HEX HEAD,6X45 Price: $7.58 |
| 2 |
21126-008 |
CLAMP,WIRING HARNESS Price: $4.73 |
| 3 |
11022-012-2H |
COVER,CYLINDER HEAD Price: $301.97 |
| 4 |
11060-1605 |
GASKET,CYL HEAD COVER This part replaces 11023-006. Price: $151.05 |
| 5 |
220AA0610 |
SCREW-PAN-CROS,6X10 This part replaces 220B0610. Price: $3.23 |
| 6 |
13169-015 |
PLATE,STOPPER Price: $0.70 |
| 7 |
92065-103 |
GASKET,TACHOMETER GER Price: $4.07 |
| 8 |
92050-075 |
OIL SEAL Price: $11.39 |
| 9 |
92087-010 |
GUIDE,TACHOMETER GEAR Price: $24.19 |
| 10 |
92055-1149 |
RING-O,10MM Price: $6.57 |
| 11 |
13223-011 |
GEAR,TACHOMETER,10T Price: $94.86 |
| 12 |
11002-1011-2H |
CYLINDER HEAD,BARREL Price: $891.34 |
| 13 |
92070-3501-A |
PLUG-SPARK-BR8ES-NGK This part replaces B8ES. Price: $2.50 |
| 14 |
92004-1069 |
STUD,8X30 Price: $7.51 |
| 15 |
92042-007 |
PIN,DOWEL,6.3X8X14 Price: $5.70 |
| 16 |
13034-030 |
BUSHING,CAMSHAFT Price: $22.16 |
| 17 |
92066-0946 |
PLUG,CAMSHAFT,14X7 This part replaces 92066-017. Price: $25.35 |
| 18 |
92015-076 |
NUT,CYLINDER HEAD Price: $13.08 |
| 19 |
92022-215 |
WASHER,PLAIN,10MM Price: $9.64 |
| 20 |
411AA1000 |
WASHER-PLAIN,10MM This part replaces 411B1000. Price: $0.96 |
| 21 |
92036-023 |
RING-SNAP,VALVE GUIDE Price: $0.48 |
| 22 |
12013-009 |
GUIDE-VALVE,INTAKE Price: $27.29 |
| 23 |
49002-1002 |
GUIDE-VALVE,EXHAUST Price: $24.01 |
| 24 |
11004-1258 |
GASKET-HEAD,CYLINDER This part replaces 11004-076. Price: $167.57 |
| 25 |
220B0618 |
SCREW-PAN-CROS,6X18 Price: $3.35 |
| 26 |
92037-077 |
CLAMP,HOLDER Price: $12.00 |
| 27 |
92011-037 |
SCREW,PAN HEAD Price: $5.71 |
| 28 |
16065-029 |
HOLDER,CARBURETOR,L.H Price: $100.50 |
| 29 |
92068-006 |
PLUG,12X25 Price: $4.26 |
| 30 |
16065-028 |
HOLDER-R.H CARBRETOR Price: $100.50 |
| 31 |
120CA0614 |
BOLT-SOCKET,6X14 This part replaces 120P0614. Price: $4.10 |
| 32 |
13091-1008 |
HOLDER,TACHOMETER2.3T Price: $4.26 |
| 33 |
13091-1009 |
HOLDER,TACHOMETR,3.2T Price: $4.26 |
| 34 |
13091-5001 |
HOLDER SET,TACHOMETER Price: $4.42 |
