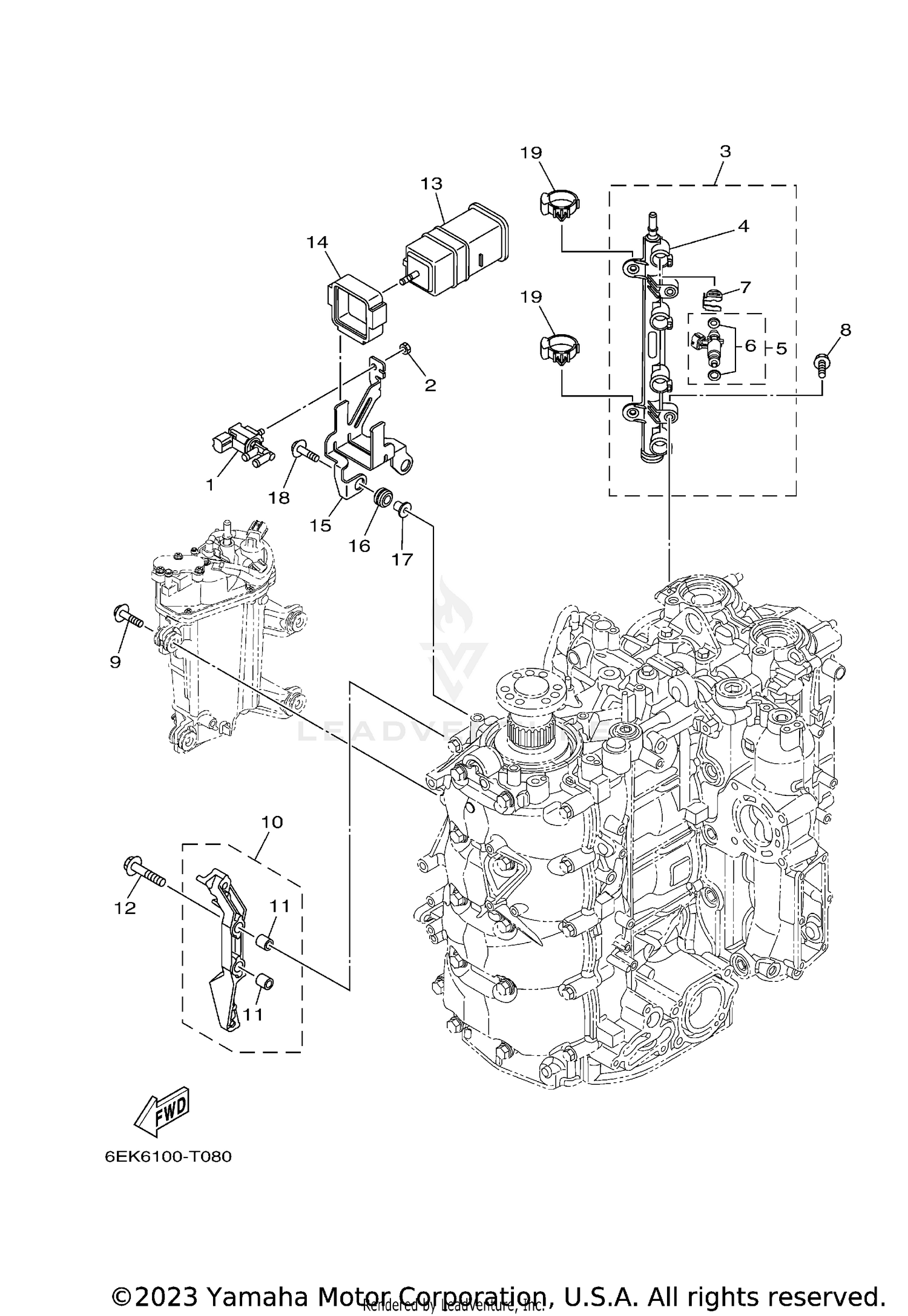

INTAKE 2
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6C5-86120-00-00 | SOLENOID VALVE ASSY Price: $157.80 |
| 2 | 95380-06600-00 | NUT, HEXAGON Price: $4.80 |
| 3 | 6EK-13160-01-00 | DELIVERY PIPE ASSY 1 Price: $307.40 |
| 5 | 6EK-13761-01-00 | INJECTOR Price: $182.65 |
| 6 | 6AW-1410B-00-00 | PACKING KIT Price: $20.10 |
| 7 | 6AW-13577-10-00 | CLIP Price: $14.75 |
| 8 | 90105-06M08-00 | BOLT, FLANGE Price: $2.30 |
| 9 | 90119-06299-00 | BOLT, WITH WASHER Price: $2.40 |
| 10 | 6EK-14291-00-00 | BRACKET 1 Price: $57.45 |
| 11 | 99590-10114-00 | PIN, DOWEL Price: $5.55 |
| 12 | 90105-08M87-00 | BOLT, FLANGE Price: $1.75 |
| 13 | 6P2-24170-00-00 | CANISTER ASSY Price: $103.30 |
| 14 | 6FP-2419E-01-00 | COVER, CANISTER Price: $8.60 |
| 15 | 6EK-2134X-10-00 | BRACKET, CANISTER Price: $29.55 |
| 16 | 90480-10M23-00 | GROMMET Price: $9.65 |
| 17 | 90387-06289-00 | COLLAR Price: $3.18 |
| 18 | 90119-06309-00 | BOLT, WITH WASHER Price: $1.65 |
