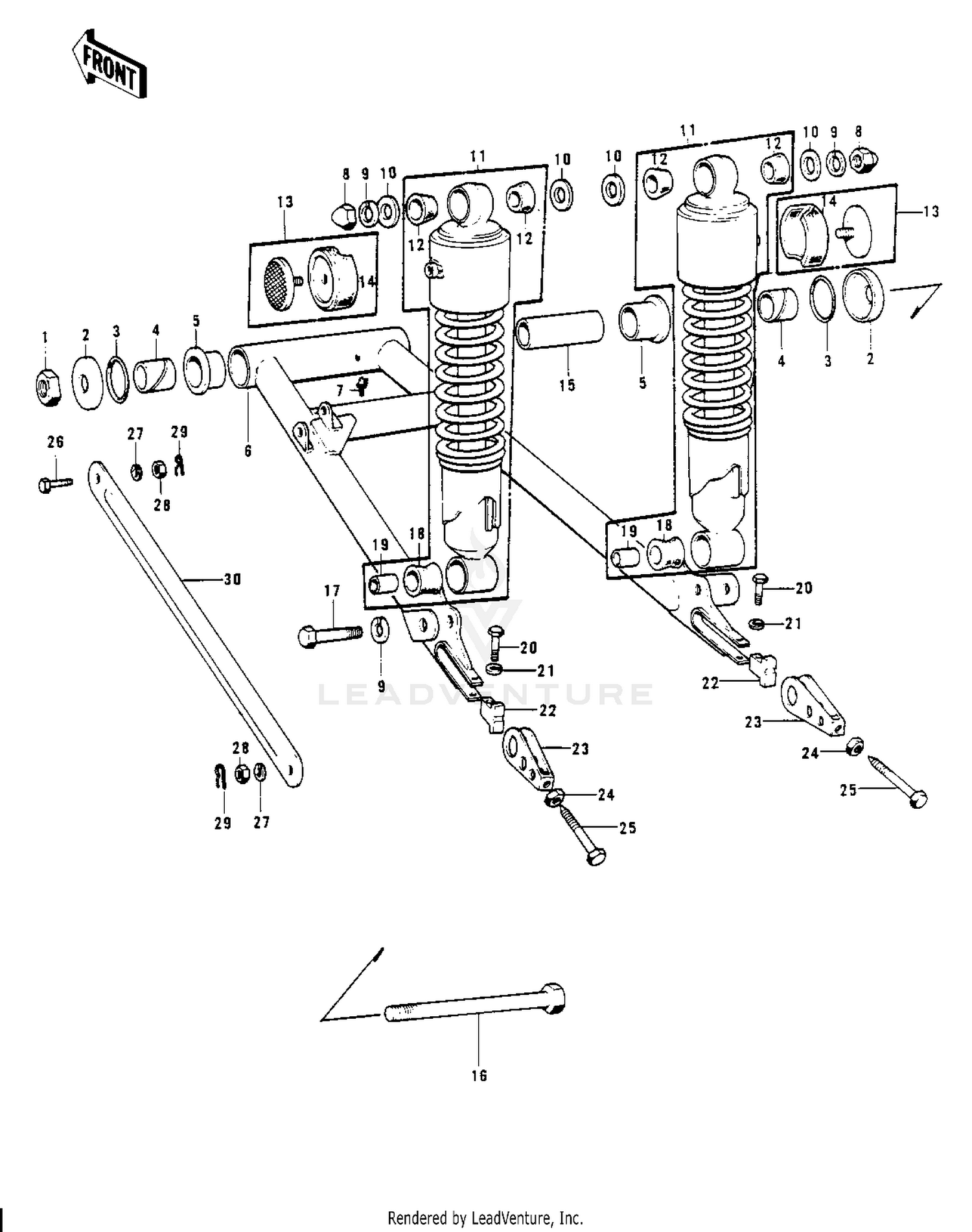

| Ref | Part Number | Description |
|---|
| 1 |
92019-011 |
NUT-LOCK,14MM Price: $10.86 |
| 2 |
33035-007 |
CAP,SWING ARM Price: $18.10 |
| 4 |
33034-013 |
SLEEVE-SWING ARM,SHRT Price: $27.85 |
| 5 |
33033-009 |
BUSHING-SWING ARM Price: $99.19 |
| 6 |
33001-1089 |
ARM-COMP-SWING Price: $337.06 |
| 7 |
92005-002 |
GREASE NIPPLE Price: $8.07 |
| 8 |
92020-003 |
NUT,CAP,10MM Price: $6.52 |
| 9 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 10 |
92022-246 |
WASHER,10.5X26X2.3 Price: $3.39 |
| 11 |
45014-110 |
SHOCK ABSBR RR Price: $856.49 |
| 12 |
45017-001 |
BUSH SHCK ABS RUBBER Price: $12.15 |
| 13 |
28001-030 |
REFLECTOR,REFLEX,REAR Price: $24.26 |
| 14 |
28016-003 |
DAMPER RUBBER,REFLEX Price: $9.18 |
| 15 |
33034-012 |
SLEEVE-SWING ARM,LONG Price: $12.38 |
| 16 |
33032-037 |
SHAFT-SWING ARM PIVOT Price: $48.24 |
| 17 |
112N1035 |
BOLT-UPSET This part replaces 113N1035. Price: $9.83 |
| 18 |
45017-018 |
BUSHING,SHCK ABS RUB Price: $9.48 |
| 19 |
45016-003 |
BUSH SHCK ABS PVT SFT Price: $15.92 |
| 20 |
92001-1577 |
BOLT,FLANGED,8X35 Price: $5.00 |
| 21 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 22 |
33044-002 |
STOPPER,CHAIN ADJUST Price: $25.59 |
| 23 |
33040-056 |
ADJUSTER,CHAIN Price: $29.47 |
| 24 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 312B0800. Price: $0.59 |
| 25 |
92002-1076 |
BOLT,8X50 This part replaces 92001-1399. Price: $9.48 |
| 26 |
92151-1876 |
BOLT,10X29 This part replaces 92003-096. Price: $10.72 |
| 27 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 28 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 29 |
554DA0800 |
PIN-SNAP This part replaces 554A0800. Price: $1.36 |
