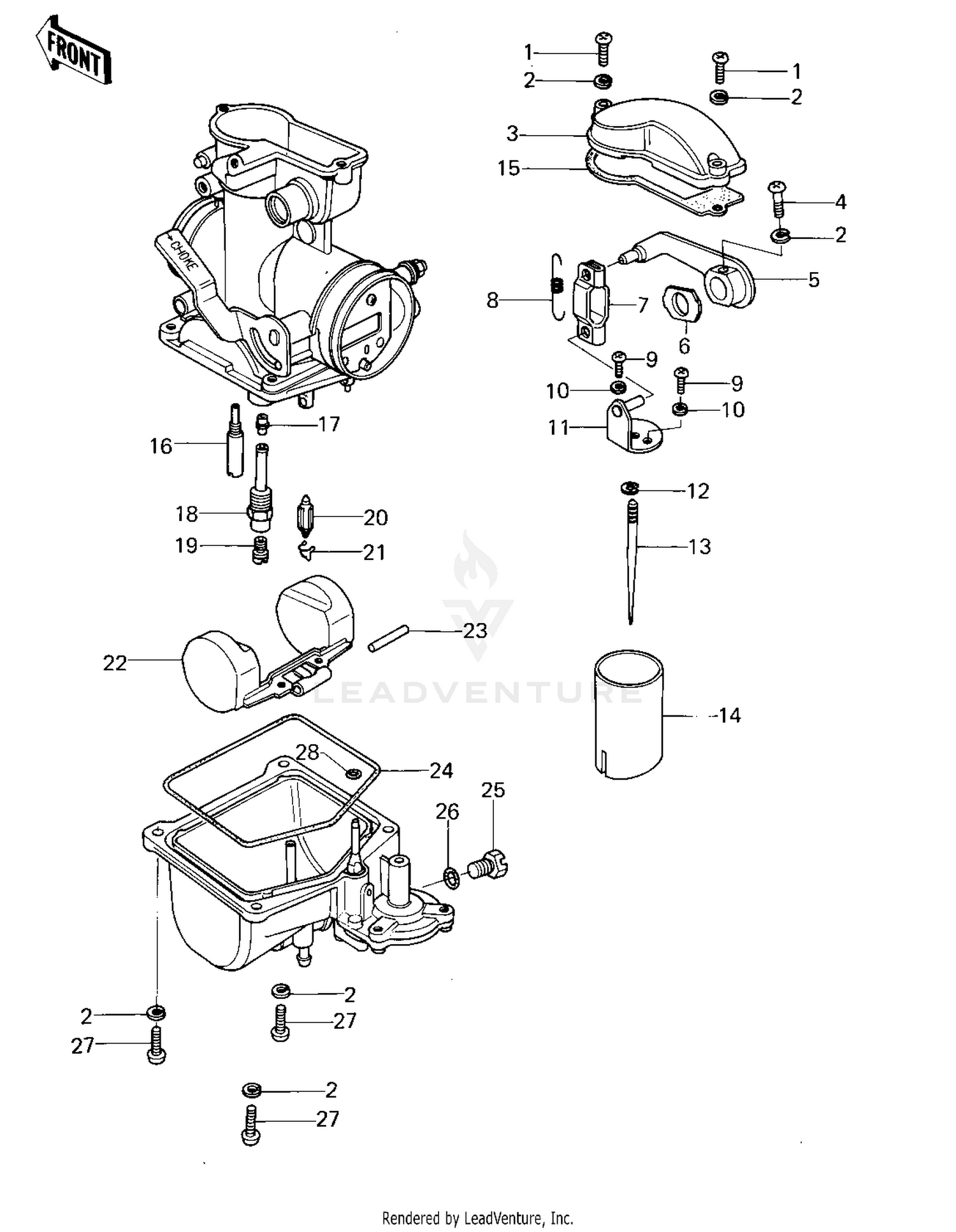

| Ref | Part Number | Description |
|---|
| 1 |
220AA0412 |
SCREW-PAN-CROS,4X12 This part replaces 220B0412. Price: $0.21 |
| 3 |
16005-1004 |
TOP,MIXING CHAMBER Price: $31.14 |
| 4 |
92009-1030 |
SCREW,4M/M Price: $4.03 |
| 5 |
13168-1016 |
LEVER,LINK Price: $17.49 |
| 6 |
92027-1080 |
COLLAR Price: $2.23 |
| 7 |
21083-1002 |
ARM,LINK Price: $8.76 |
| 8 |
92081-1057 |
SPRING,TENTION Price: $13.70 |
| 9 |
220AA0308 |
SCREW-PAN-CROS,3X8 This part replaces 220B0308. Price: $0.59 |
| 10 |
461DA0300 |
WASHER-SPRING This part replaces 461F0300. Price: $0.47 |
| 11 |
13169-1094 |
PLATE,VALVE Price: $7.33 |
| 12 |
92037-1039 |
CIRCLIP,JET NEEDLE Price: $4.58 |
| 15 |
11009-1047 |
GASKET,TOP CHAMBER Price: $8.79 |
| 17 |
16017-1010 |
NEEDLE JET Price: $36.26 |
| 20 |
16030-1007 |
VALVE-FLOAT Price: $47.99 |
| 21 |
16044-007 |
CLAMP,FLOAT VALVE Price: $7.91 |
| 22 |
16031-1001 |
FLOAT Price: $64.24 |
| 23 |
92043-1002 |
FLOAT PIN Price: $6.25 |
| 24 |
16019-024 |
O RING,FLOAT BALL Price: $25.28 |
| 25 |
92009-1003 |
SCREW,DRAIN Price: $14.13 |
| 26 |
92055-1003 |
O RING,DRAIN SCREW Price: $6.02 |
