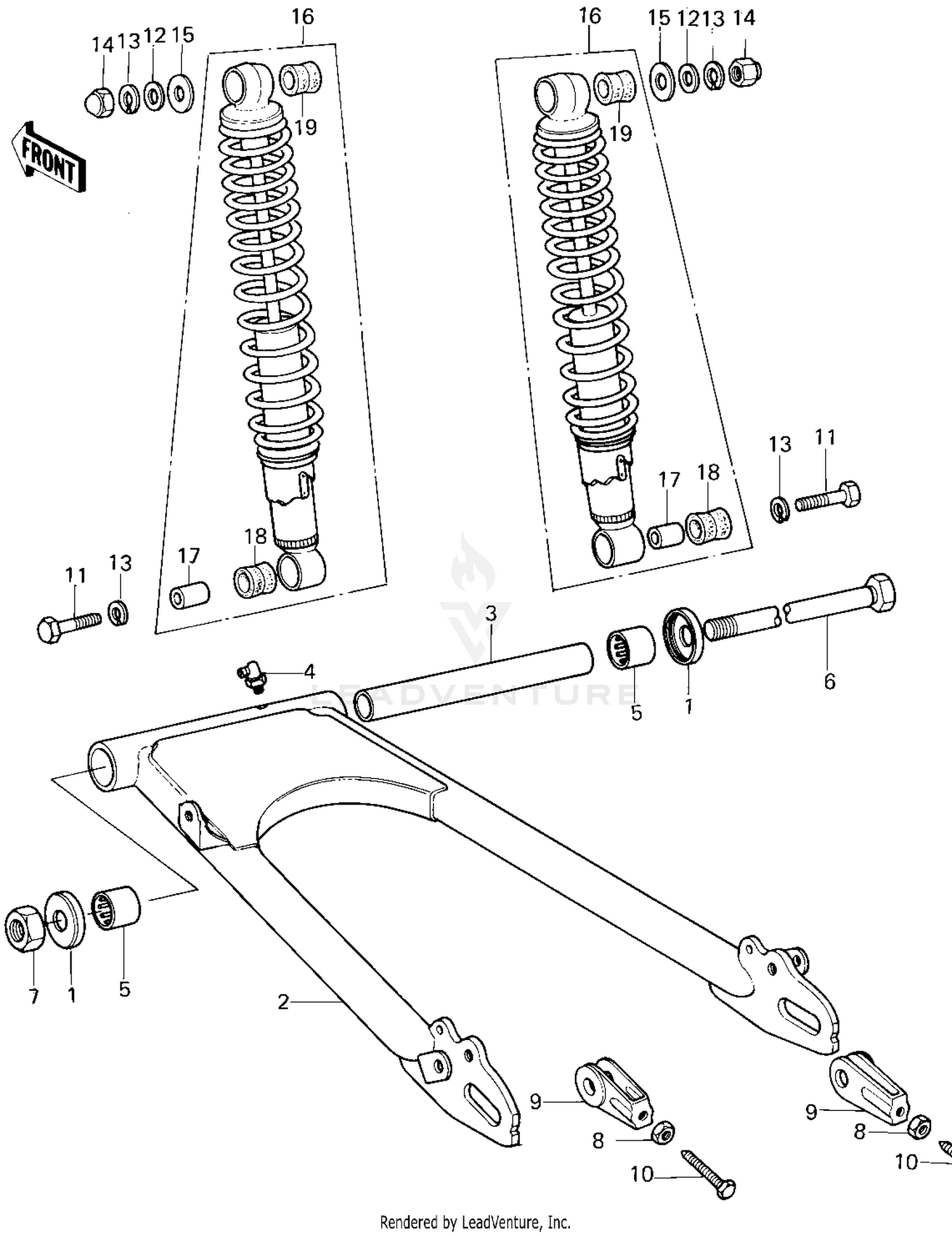

| Ref | Part Number | Description |
|---|
| 1 |
11012-1029 |
CAP,SWING ARM Price: $20.99 |
| 2 |
33001-1107 |
ARM-COMP-SWING Price: $227.75 |
| 3 |
42036-1017 |
SLEEVE,SWING ARM Price: $85.19 |
| 4 |
92005-002 |
GREASE NIPPLE Price: $8.07 |
| 5 |
92046-1115 |
BEARING-NEEDLE,HK2216 Price: $20.02 |
| 6 |
33032-1011 |
SHAFT,SWING ARM PIVOT Price: $46.40 |
| 7 |
92019-011 |
NUT-LOCK,14MM Price: $10.86 |
| 8 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 312B0800. Price: $0.59 |
| 9 |
33040-1004 |
ADJUSTER-CHAIN This part replaces 33040-043. Price: $28.47 |
| 10 |
92002-1076 |
BOLT,8X50 This part replaces 92001-1399. Price: $9.48 |
| 11 |
112N1035 |
BOLT-UPSET This part replaces 113N1035. Price: $9.83 |
| 12 |
411AA1000 |
WASHER-PLAIN,10MM This part replaces 411B1000. Price: $0.96 |
| 13 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 14 |
92020-003 |
NUT,CAP,10MM Price: $6.52 |
| 15 |
92022-044 |
WASHER,10.5X26X2.3 Price: $3.92 |
| 16 |
45014-1039 |
SHOCK ABSBR RR Price: $217.12 |
| 17 |
45016-008 |
COLLAR,SHOCKABSORBER Price: $9.91 |
| 18 |
45017-012 |
DAMPER,SHOCKABSORBER Price: $14.90 |
