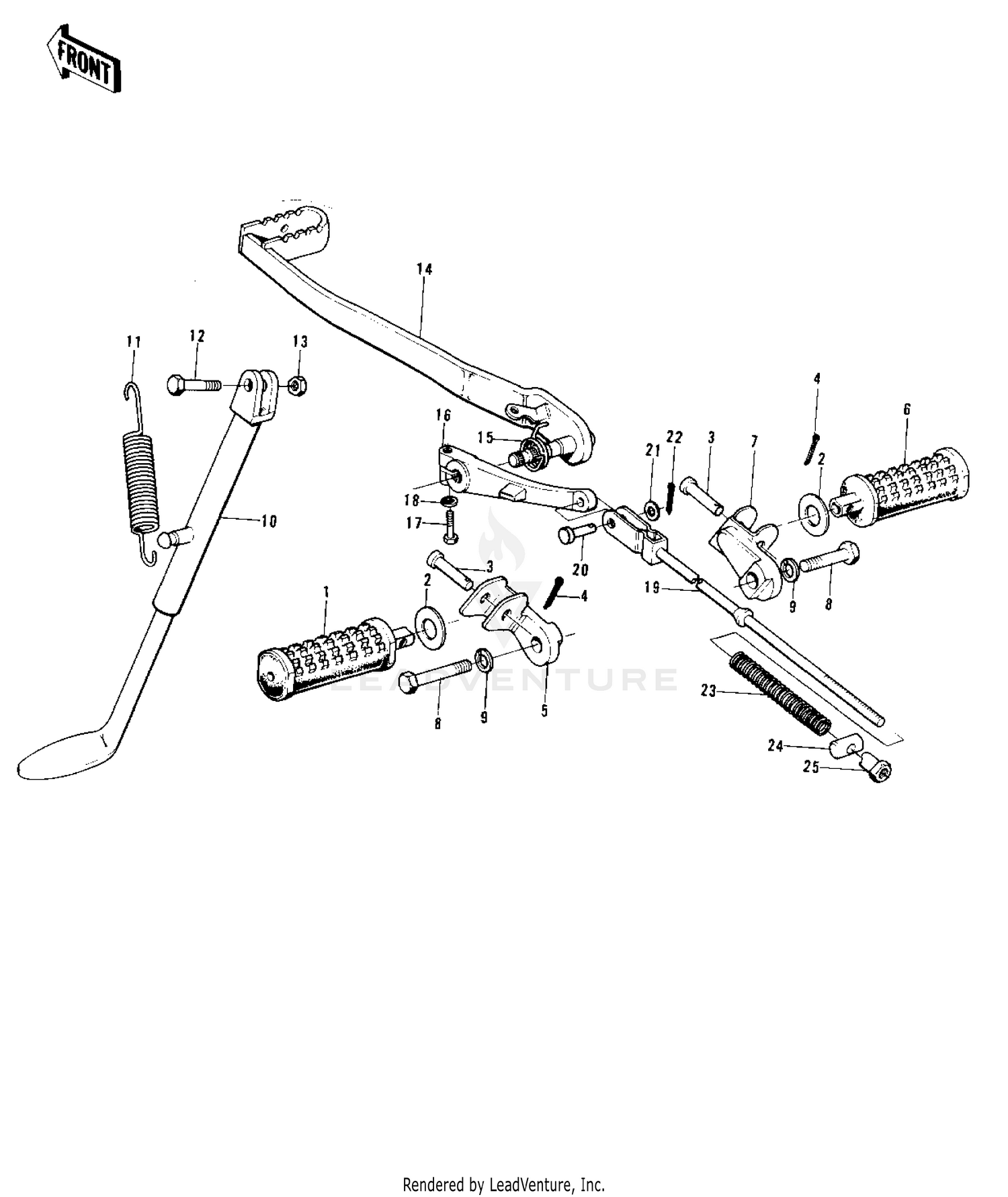

| Ref | Part Number | Description |
|---|
| 2 |
92022-204 |
WASHER PL 22.5X36X2.3 Price: $0.90 |
| 3 |
92043-080 |
PIN,8X31 Price: $5.52 |
| 4 |
550AA2515 |
PIN-COTTER,2.5X15 This part replaces 550D2515. Price: $0.47 |
| 5 |
34007-010 |
BRKT LH FOOTREST BAR Price: $39.25 |
| 7 |
34007-011 |
BRKT RH FOOTREST BAR Price: $46.48 |
| 8 |
113B1432 |
BOLT-HEX HEAD,14X32 Price: $9.15 |
| 9 |
461F1400 |
WASHER SPRING 14MM Price: $0.43 |
| 10 |
34024-034 |
STAND-SIDE Price: $31.74 |
| 11 |
34025-004 |
SPRING-SIDE STAND Price: $7.22 |
| 12 |
92001-1252 |
BOLT,HEX HEAD 10X35 Price: $7.65 |
| 13 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 14 |
43077-001 |
PEDAL-BRAKE Price: $44.32 |
| 15 |
43005-019 |
SPRING-BRAKE PEDAL Price: $7.33 |
| 16 |
42029-019 |
LEVER-BRAKE PEDAL Price: $59.91 |
| 17 |
112BA0625 |
BOLT-UPSET,6X25 This part replaces 112G0625. Price: $3.72 |
| 18 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 19 |
43011-011 |
ROD-BRAKE Price: $15.87 |
| 20 |
92043-064 |
PIN,6X17 Price: $4.69 |
| 21 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 22 |
550AA2015 |
PIN-COTTER,2.0X15 This part replaces 550D2015. Price: $1.12 |
| 23 |
43012-001 |
SPRING,BRAKE ROD Price: $4.65 |
| 24 |
92043-065 |
PIN-BRAKE ROD Price: $5.57 |
