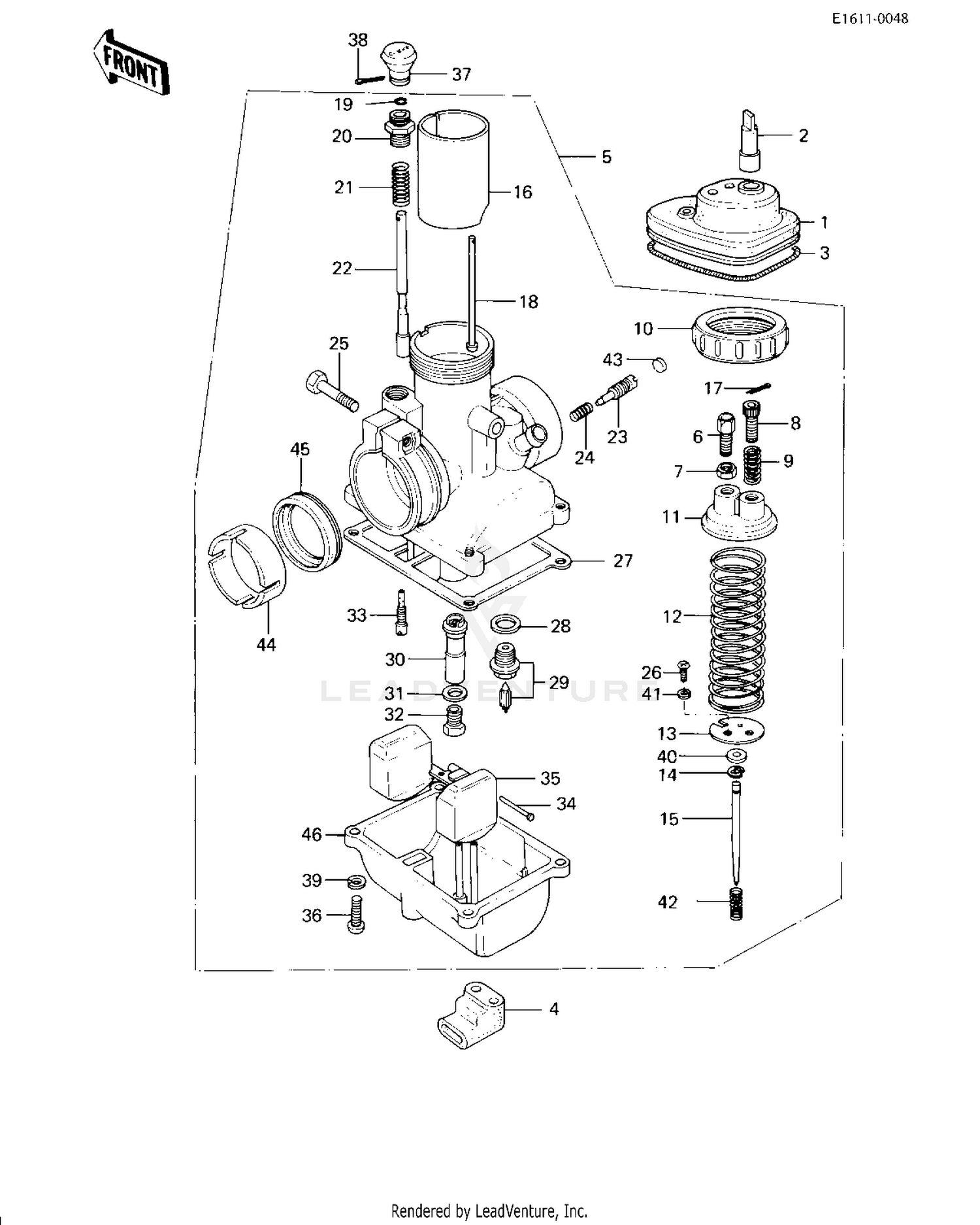

| Ref | Part Number | Description |
|---|
| 1 |
14038-035 |
CAP,CARBURETOR Price: $15.50 |
| 2 |
16147-001 |
PLUG,CARBURETOR CAP Price: $5.17 |
| 3 |
92081-047 |
SPRING COIL Price: $11.29 |
| 4 |
92071-1024 |
GROMMET,OVERFLOW Price: $9.70 |
| 5 |
16001-1185 |
CARBURETOR ASSY Price: $114.99 |
| 6 |
16002-1004 |
CABLE ADJUSTER Price: $5.08 |
| 7 |
92015-1092 |
NUT,CABLE ADJSTR LOCK Price: $3.41 |
| 8 |
16021-1021 |
THROTTLE ADJUSTER Price: $11.06 |
| 9 |
92081-1232 |
SPRING,THROTTLE ADJST Price: $1.59 |
| 10 |
16004-1007 |
CAP,MIXING CHAMBER Price: $6.81 |
| 11 |
16005-1010 |
TOP,MIXING CHAMBER Price: $7.98 |
| 12 |
92081-1234 |
SPRING,THROTTLE VALVE Price: $3.01 |
| 13 |
13169-1223 |
SPRING SEAT,THR VALVE Price: $6.72 |
| 14 |
92037-1167 |
CIRCLIP Price: $3.80 |
| 15 |
16009-1043 |
JET NEEDLE,#4D21 Price: $51.24 |
| 16 |
16025-1036 |
VALVE,THROTTLE CA.3.0 Price: $78.48 |
| 17 |
550AA1210 |
PIN-COTTER,1.2X10 This part replaces 550D1210. Price: $2.65 |
| 18 |
46102-1014 |
ROD,THR VALVE STOP Price: $3.66 |
| 19 |
92037-1166 |
CLAMP Price: $1.59 |
| 20 |
16012-1007 |
CAP,STARTER PLUNGER Price: $25.96 |
| 21 |
92081-1233 |
SPRING,STARTER PLUNGR Price: $4.71 |
| 22 |
16016-1010 |
PLUNGER,STARTER Price: $31.50 |
| 23 |
16014-1022 |
SCREW,PILOT AIR ADJST Price: $17.56 |
| 24 |
92081-1202 |
SPRING,PILOT AIR SCRW Price: $3.38 |
| 25 |
92001-1304 |
BOLT,CARB MOUNT Price: $4.71 |
| 26 |
220AA0306 |
SCREW-PAN-CROS,3X6 This part replaces 220B0306. Price: $0.64 |
| 27 |
11060-1617 |
GASKET This part replaces 11009-1174. Price: $13.72 |
| 28 |
11009-1160 |
GASKET,FLOAT VALVE Price: $5.69 |
| 29 |
16031-1010 |
FLOAT VALVE ASSY Price: $82.44 |
| 30 |
16017-1043 |
NEEDLE JET,#80 Price: $20.03 |
| 31 |
92022-1167 |
WASHER,PLAIN Price: $3.80 |
| 32 |
92063-1066 |
MAIN JET,#84 Price: $10.60 |
| 33 |
92064-1027 |
PILOT JET,#38 Price: $13.40 |
| 34 |
92043-1066 |
PIN Price: $4.98 |
| 35 |
16031-1009 |
FLOAT Price: $112.78 |
| 36 |
220AA0414 |
SCREW-PAN-CROS This part replaces 220B0414. Price: $4.60 |
| 37 |
92077-022 |
KNOB,CARBURETOR Price: $10.64 |
| 38 |
550AA1615 |
PIN-COTTER,1.6X15 This part replaces 550D1615. Price: $2.51 |
| 39 |
461F0400 |
WASHER SPRING 4MM Price: $0.47 |
| 40 |
92027-1236 |
RING,JET NEEDLE Price: $3.11 |
| 41 |
461DA0300 |
WASHER-SPRING This part replaces 461F0300. Price: $0.47 |
| 42 |
92081-1203 |
SPRING,JET NEEDLE Price: $3.41 |
| 43 |
92066-1051 |
PLUG,PILOT AIR SCREW,6.9X2 Price: $5.05 |
| 44 |
16073-1010 |
INSULATOR,CARBURETOR Price: $23.18 |
