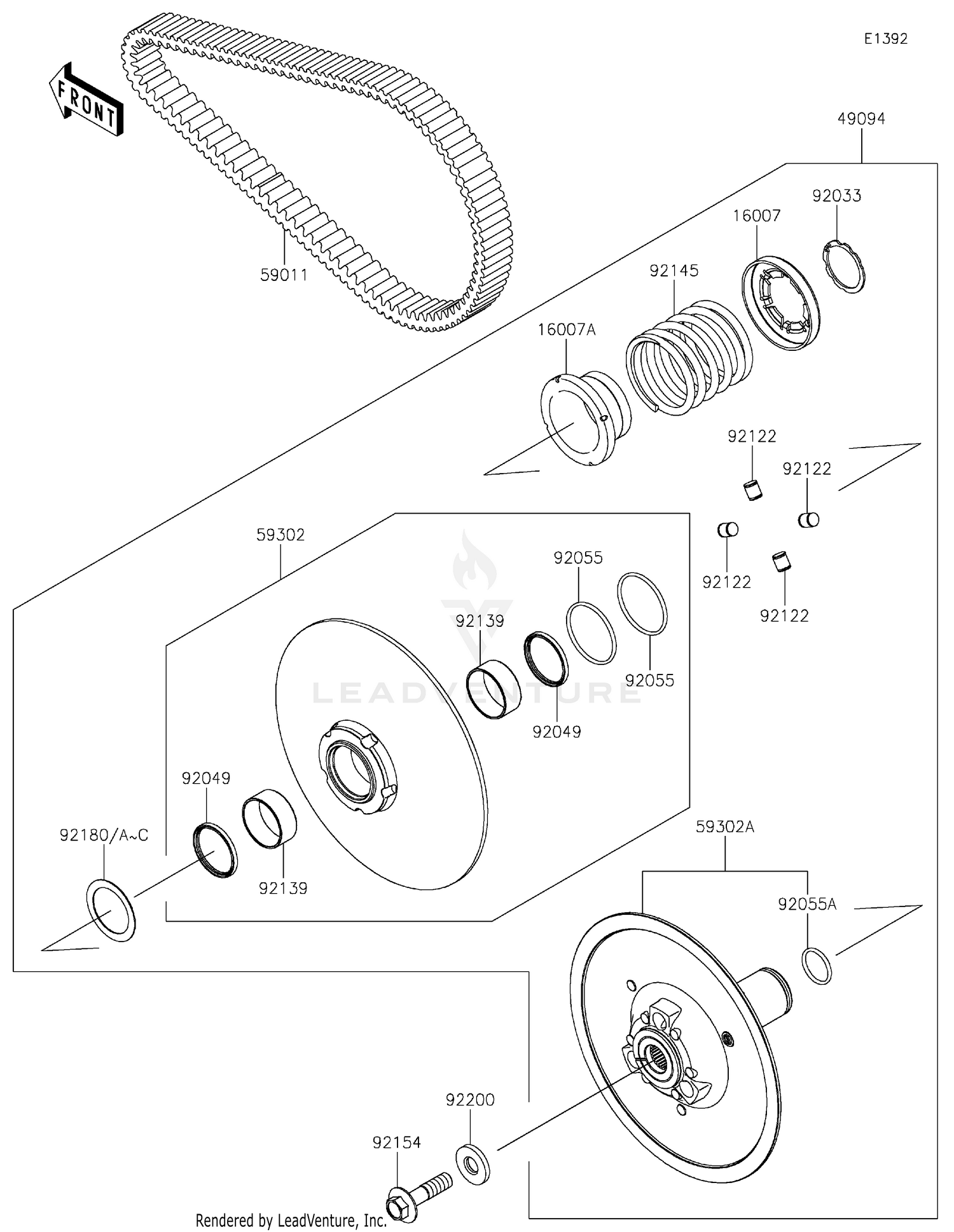

| Ref | Part Number | Description |
|---|
| 16007 |
16007-0755 |
SEAT-SPRING,FIXED Price: $19.32 |
| 16007A |
16007-0786 |
SEAT-SPRING,MOVABLE Price: $35.23 |
| 49094 |
49094-0116 |
CONVERTER-ASSY-DRIVEN Price: $780.63 |
| 59011 |
59011-0065 |
BELT,CVT Price: $228.98 |
| 59302 |
59302-0116 |
SHEAVE-COMP,DRIVEN MOVABLE Price: $321.29 |
| 59302A |
59302-0121 |
SHEAVE-COMP,DRIVEN FIXED Price: $512.05 |
| 92033 |
92033-0801 |
RING-SNAP,41.5MM Price: $2.55 |
| 92049 |
92049-0821 |
SEAL-OIL,GD45X52X4 V1 Price: $13.30 |
| 92055 |
92055-0924 |
RING-O,54.4X3.1 Price: $4.39 |
| 92055A |
92055-0926 |
RING-O,29X3.1 Price: $4.08 |
| 92122 |
92122-0571 |
ROLLER Price: $27.12 |
| 92139 |
92139-0936 |
BUSHING Price: $28.67 |
| 92145 |
92145-1856 |
SPRING Price: $80.12 |
| 92154 |
92154-3920 |
BOLT,14X55 Price: $20.86 |
| 92180 |
92180-1661 |
SHIM,T=1.0 Price: $3.97 |
| 92180A |
92180-1662 |
SHIM,T=1.2 Price: $3.23 |
| 92180B |
92180-1663 |
SHIM,T=1.6 Price: $2.91 |
| 92180C |
92180-1667 |
SHIM,T=0.3 Price: $1.92 |
