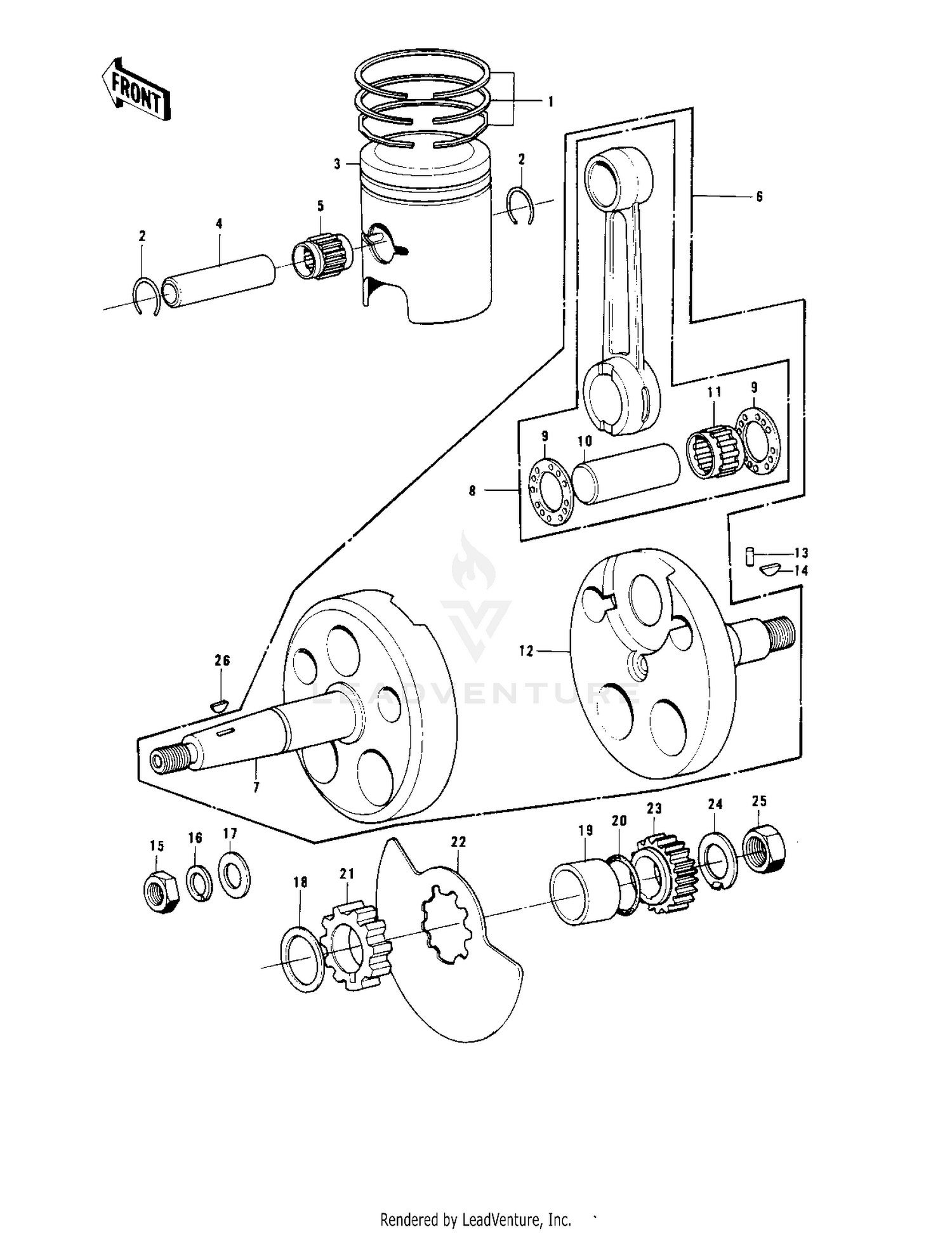

| Ref | Part Number | Description |
|---|
| 1 |
13008-058 |
RING SET,STD Price: $96.75 |
| 1 |
13024-058 |
RING SET,0.040'0.S Price: $96.75 |
| 1 |
13025-058 |
RING SET,0.020'0.S Price: $96.75 |
| 2 |
92036-003 |
CIRCLIP PISTON PIN Price: $0.65 |
| 3 |
13001-074 |
PISTON,STD Price: $134.69 |
| 3 |
13027-065 |
PISTON,0.040'0.S Price: $134.69 |
| 3 |
13029-072 |
PISTON,0.020'0.S Price: $134.69 |
| 4 |
13002-018 |
PIN-PISTON Price: $43.76 |
| 5 |
13033-034 |
BEARING,SMALL END Price: $52.55 |
| 6 |
13036-049 |
CRANKSHAFT ASSY Price: $504.75 |
| 7 |
13037-038 |
CRANKSHAFT,L.H Price: $144.39 |
| 8 |
13044-039 |
CONNECTING ROD SET Price: $220.92 |
| 9 |
92026-011 |
WASHER SIDE Price: $9.89 |
| 10 |
13035-022 |
CRANK PIN Price: $22.02 |
| 11 |
13034-042 |
BEARING,BIG END Price: $26.95 |
| 12 |
13038-034 |
CRANKSHAFT,R.H Price: $151.17 |
| 13 |
610A0410 |
ROLLER,4X10 Price: $4.31 |
| 14 |
92038-003 |
WOODRUFF KEY PRY PINI Price: $5.37 |
| 15 |
92015-043 |
NUT 14MM Price: $7.50 |
| 16 |
461F1400 |
WASHER SPRING 14MM Price: $0.43 |
| 17 |
92022-172 |
WASHER-PLAIN,14MM Price: $11.10 |
| 18 |
92027-118 |
COLLAR-CRANKSHAFT Price: $4.04 |
| 19 |
92143-1370 |
COLLAR,25X32X10.5 Price: $14.50 |
| 21 |
92143-1804 |
COLLAR,CRANKSHAFT This part replaces 92027-242. Price: $21.13 |
| 22 |
12002-028 |
VALVE,ROTARY DISC Price: $35.58 |
| 23 |
13121-027 |
PINION,PRIMARY Price: $88.89 |
| 24 |
92024-067 |
WASHER,LOCK,18MM Price: $3.52 |
| 25 |
92015-019 |
NUT 18MM Price: $7.22 |
