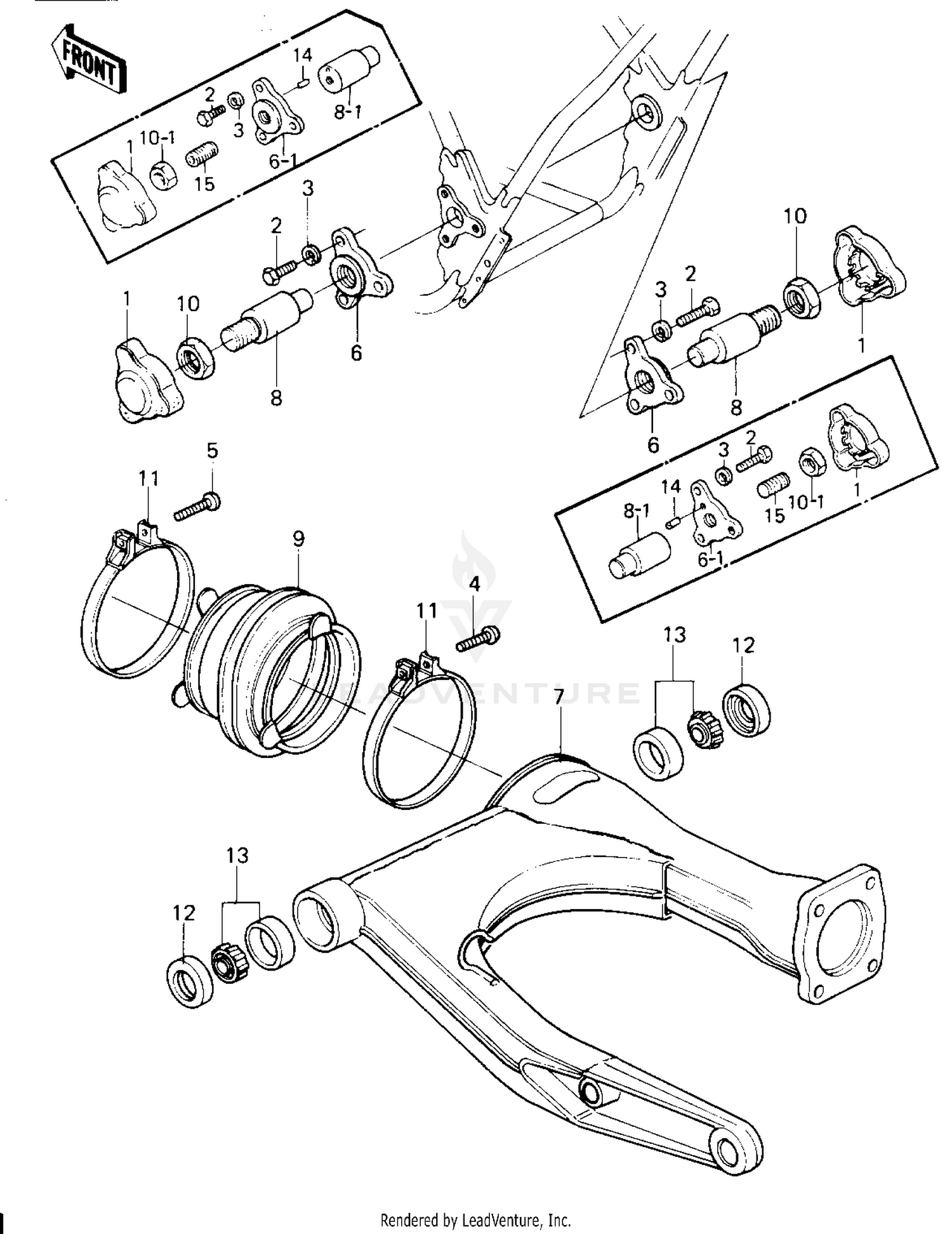

| Ref | Part Number | Description |
|---|
| 1 |
14025-1087 |
COVER,SWING ARM Price: $11.29 |
| 2 |
114G0822 |
BOLT,8X22 Price: $3.58 |
| 3 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 4 |
220AA0420 |
SCREW-PAN-CROS,4X20 This part replaces 220B0420. Price: $2.67 |
| 5 |
220AA0430 |
SCREW-PAN-CROS This part replaces 220B0430. Price: $0.77 |
| 6 |
32085-1031 |
STOPPER,SWING ARM Price: $46.30 |
| 7 |
33001-1026 |
ARM,SWING Price: $429.20 |
| 8 |
33032-1006 |
SHAFT,SWING ARM Price: $67.22 |
| 9 |
49006-1020 |
BOOT,SWING ARM Price: $40.67 |
| 10 |
92015-1056 |
NUT,20M/M Price: $15.49 |
| 11 |
92037-1097 |
CLAMP,SWING ARM BOOT Price: $17.58 |
| 12 |
92049-1030 |
OIL SEAL,26406 Price: $9.73 |
| 13 |
92116-1001 |
BRG,ROLLER,4T30203E1 Price: $38.04 |
