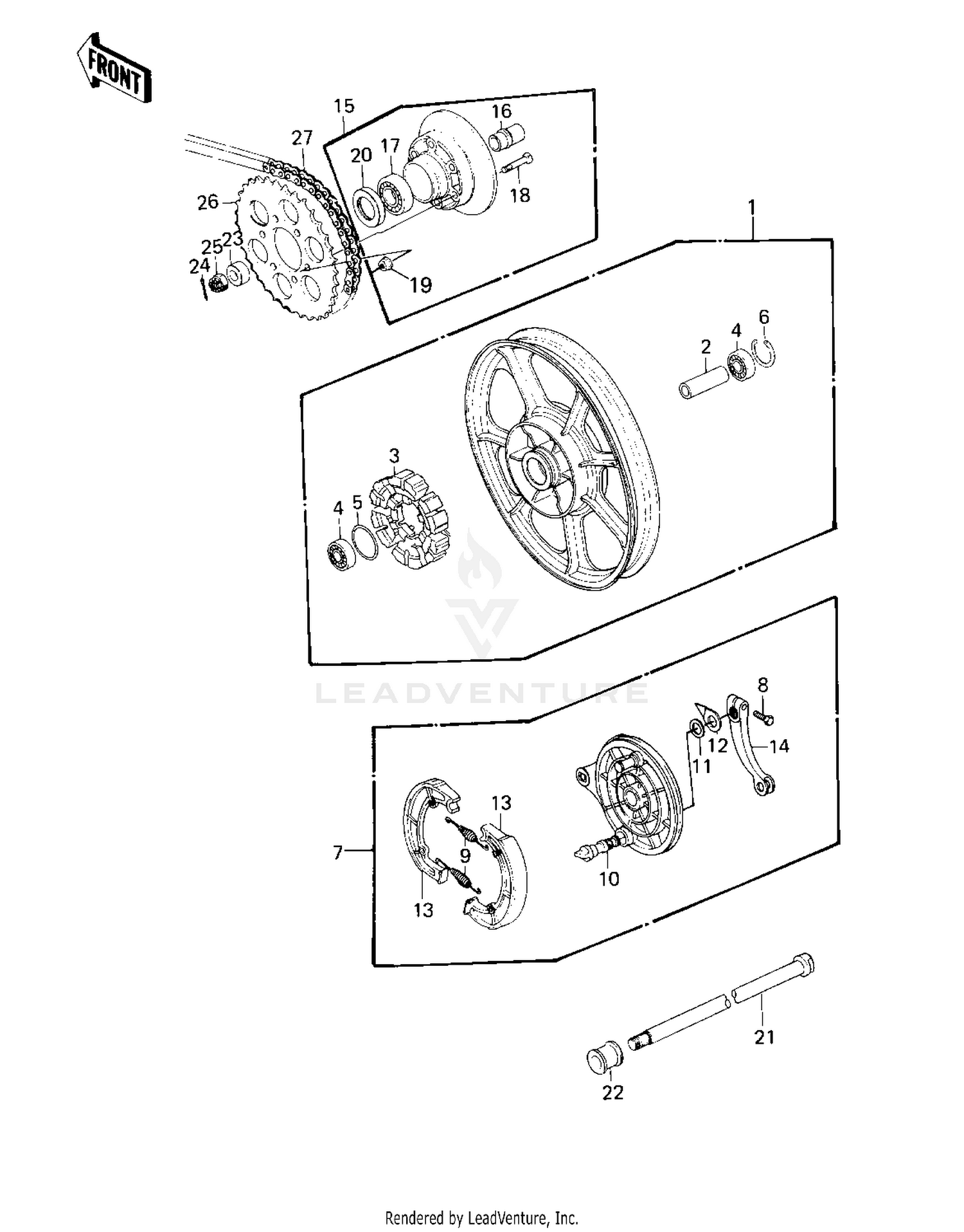

| Ref | Part Number | Description |
|---|
| 2 |
42010-033 |
SPACER,REAR HUB BRG Price: $30.88 |
| 3 |
42014-026 |
DAMPER,REAR HUB SHOCK Price: $94.66 |
| 4 |
601B6303ZZ |
BRG,BALL,#6303ZZC3 Price: $40.38 |
| 5 |
671B2555 |
O RING,55MM Price: $6.22 |
| 6 |
92033-1042 |
RING-SNAP,47MM Price: $4.22 |
| 8 |
114G0828 |
BOLT HEX HEAD 8X28 Price: $5.21 |
| 9 |
41049-012 |
SPRING,BRAKE SHOE Price: $9.49 |
| 10 |
41050-017 |
CAM SHAFT,BRAKE Price: $35.39 |
| 11 |
41051-003 |
DUST SHIELD-BRAKE CAM Price: $4.26 |
| 12 |
41085-004 |
INDICATOR,BRAKE SHOE Price: $14.51 |
| 13 |
41048-1070 |
SHOE-BRAKE This part replaces 42019-012. Price: $51.67 |
| 14 |
41053-1072 |
LEVER-BRAKE CAM This part replaces 42029-039. Price: $65.77 |
| 15 |
42008-032 |
COUPLING ASSY,REAR HB Price: $171.97 |
| 16 |
42036-026 |
SLEEVE,REAR HUB COUPL Price: $60.95 |
| 17 |
601B6305 |
BEARING-BALL,#6305C3 Price: $25.78 |
| 18 |
92003-087 |
BOLT-REAR SPROCKET Price: $10.11 |
| 19 |
92015-1415 |
NUT,FLANGED,10MM Price: $4.69 |
| 20 |
92050-076 |
OIL,SEAL,#38629 Price: $27.87 |
| 21 |
41068-1086 |
AXLE,RR Price: $73.40 |
| 22 |
42032-017 |
COLLAR REAR AXLE Price: $17.17 |
| 23 |
42032-067 |
COLLAR,REAR AXLE,L.H. Price: $32.10 |
| 24 |
550AA4035 |
PIN-COTTER,4.0X35 This part replaces 550D4035. Price: $2.17 |
| 25 |
92015-1951 |
NUT,CASTLE,16MM This part replaces 92015-055. Price: $11.50 |
| 26 |
42041-1045 |
SPROCKET,REAR,40T Price: $111.32 |
