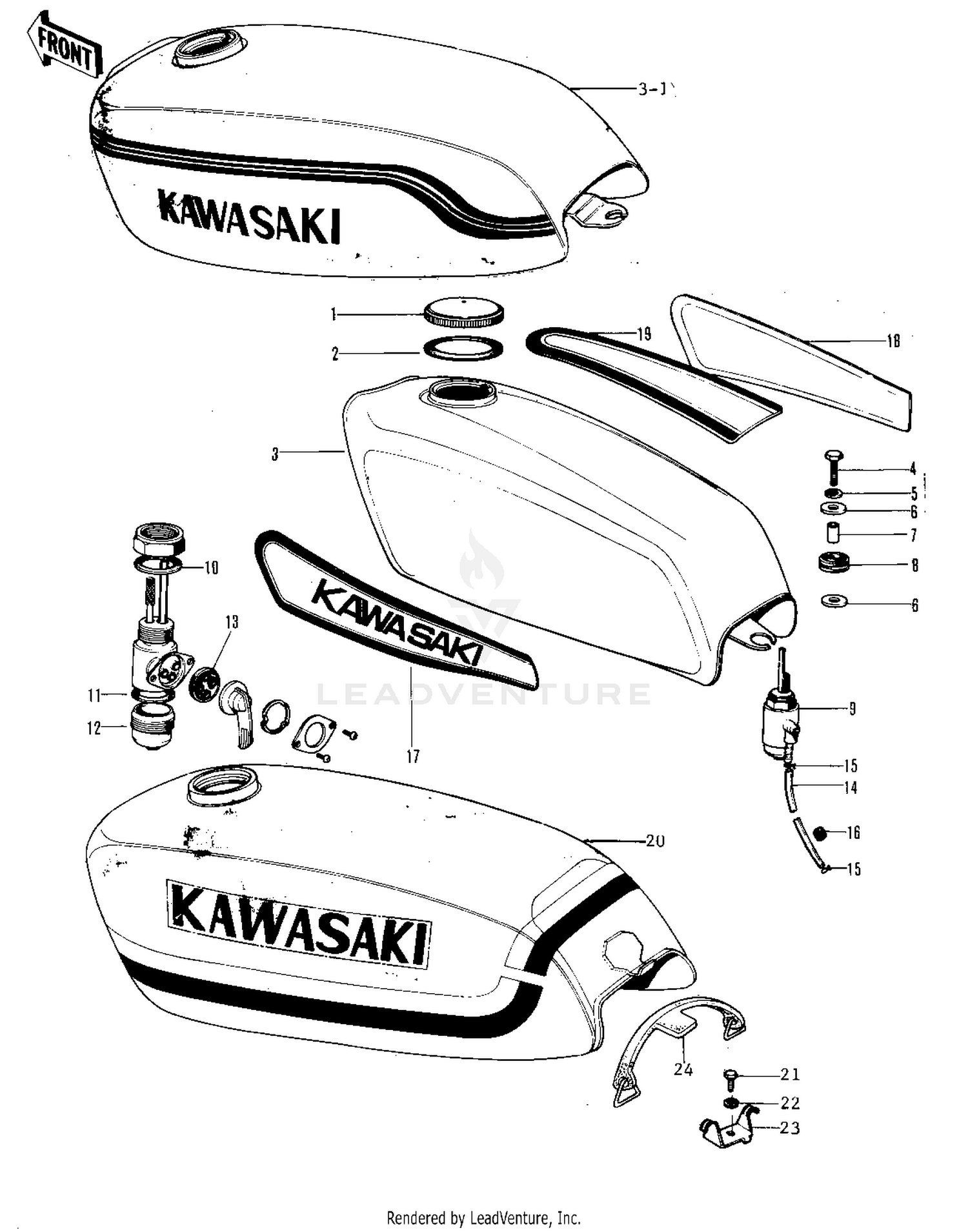

| Ref | Part Number | Description |
|---|
| 1 |
51049-008 |
CAP FUEL TANK Price: $41.80 |
| 2 |
51059-007 |
GASKET-FUEL TANK CAP Price: $3.90 |
| 4 |
92001-1577 |
BOLT,FLANGED,8X35 Price: $5.00 |
| 5 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 6 |
92022-1564 |
WASHER,8X26X2.3 Price: $4.31 |
| 7 |
92027-034 |
COLLAR,8.8X12X17 Price: $7.24 |
| 8 |
92075-030 |
DAMPER RUBB TANK REAR Price: $4.58 |
| 9 |
51023-044 |
COCK ASSY,FUEL Price: $137.41 |
| 10 |
51032-001 |
GASKET FUEL COCK JONT Price: $7.48 |
| 11 |
51037-007 |
GASKET FUEL COCK CUP Price: $3.71 |
| 12 |
51036-003 |
CUP FUEL COCK Price: $5.03 |
| 13 |
92065-019 |
GASKET FUEL COCK LEV Price: $3.74 |
| 15 |
92037-010 |
CLAMP,TUBE Price: $3.92 |
| 16 |
92071-038 |
GROMMET PIPE Price: $4.74 |
| 17 |
56013-031-61 |
EMBLEM-L.H,PURPLE Price: $29.83 |
| 18 |
56014-025-61 |
EMBLEM-R.H,PURPLE Price: $23.12 |
| 19 |
56027-038-61 |
EMBLEM-CENTER,PURPLE Price: $14.55 |
| 21 |
115BA0818 |
BOLT-SMALL-UPSET,8X18 This part replaces 115G0818. Price: $5.61 |
| 22 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 23 |
32052-046 |
BRACKET,FUEL TANK Price: $2.61 |
