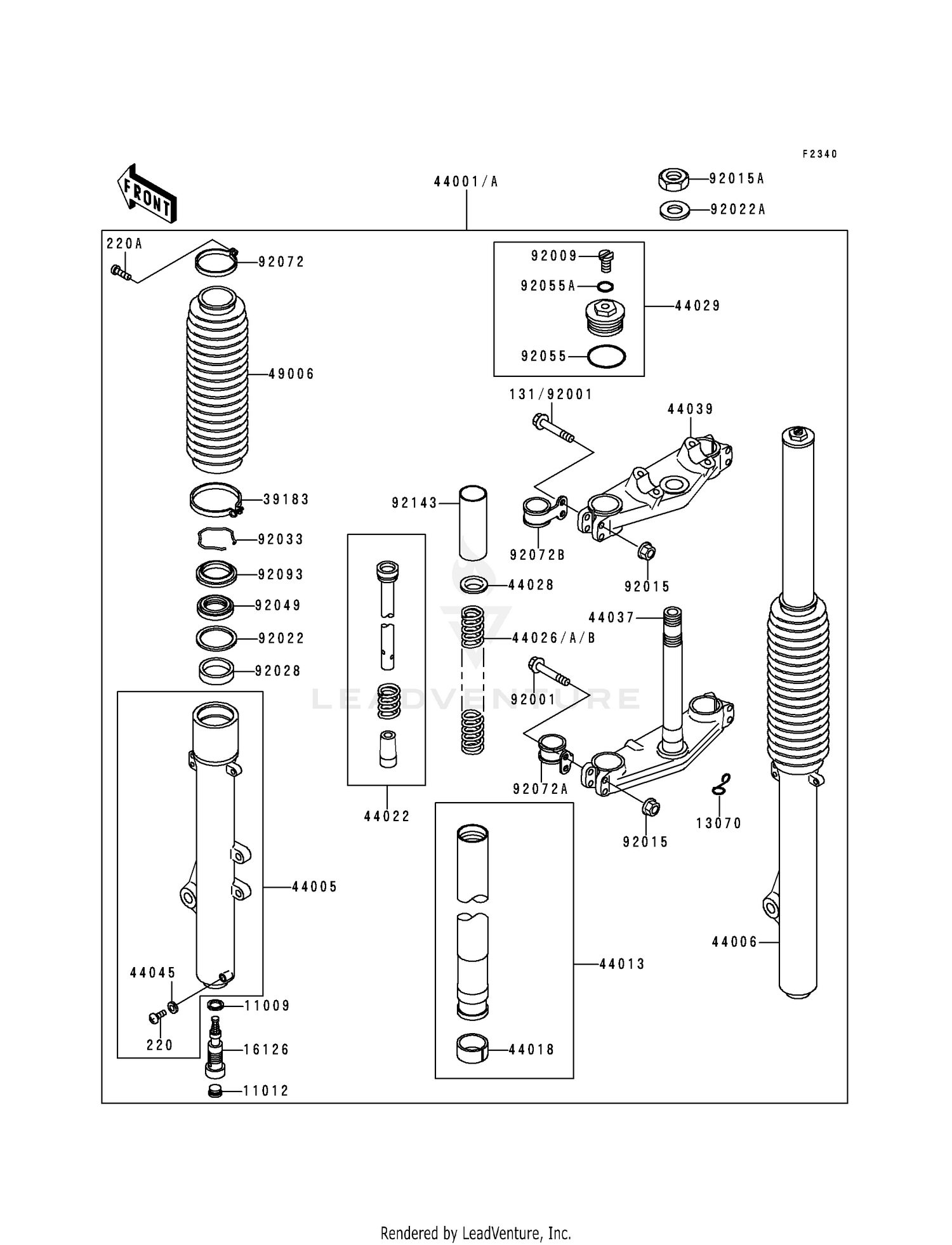

| Ref | Part Number | Description |
|---|
| 220 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 220A |
220AA0416 |
SCREW-PAN-CROS This part replaces 220B0416. Price: $1.78 |
| 11009 |
11009-1324 |
GASKET,FORK CYLINDER Price: $5.54 |
| 11012 |
11012-1381 |
CAP,FORK CYLINDER Price: $6.11 |
| 13070 |
13070-1208 |
GUIDE Price: $11.34 |
| 16126 |
16126-1134 |
VALVE,FORK CYLINDER Price: $154.94 |
| 39183 |
39183-1051 |
BAND-ASSY,BOOT Price: $10.64 |
| 44005 |
44005-1286 |
PIPE-LEFT FORK OUTER Price: $421.21 |
| 44006 |
44006-1300 |
PIPE-RIGHT FORK OUTER Price: $453.24 |
| 44013 |
44013-1300 |
PIPE-FORK INNER Price: $539.24 |
| 44018 |
44018-1056 |
PISTON-FORK,INNER PIPE Price: $28.45 |
| 44022 |
44022-1240 |
CYLINDER-FORK Price: $143.39 |
| 44026 |
44026-1401 |
SPRING-FRONT FORK,K=0 Price: $47.20 |
| 44028 |
44028-1010 |
GUIDE-FORK SPRING Price: $11.30 |
| 44029 |
44029-1137 |
SEAT-FORK SPRING Price: $56.62 |
| 44037 |
44037-1256 |
HOLDER-FORK UNDER This part replaces 44037-1248. Price: $608.79 |
| 44039 |
44039-1154 |
HOLDER-FORK UPPER Price: $252.46 |
| 44045 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 49006 |
49006-1184-GF |
BOOT,FORK,BLUE NO.32 Price: $78.58 |
| 92009 |
92009-1568 |
SCREW Price: $7.21 |
| 92015 |
92015-1485 |
NUT,FLANGED,8MM Price: $5.38 |
| 92015A |
92210-1521 |
NUT,STEERING STEM,22MM This part replaces 92015-1653. Price: $16.69 |
| 92022 |
92022-1299 |
WASHER Price: $8.58 |
| 92022A |
92022-1873 |
WASHER,STEERING STEM Price: $7.45 |
| 92028 |
92028-1581 |
BUSHING Price: $21.80 |
| 92033 |
92033-1077 |
RING-SNAP Price: $4.96 |
| 92049 |
92049-1295 |
SEAL-OIL,FORK OUTER T Price: $22.14 |
| 92055 |
92055-1123 |
RING-O Price: $6.22 |
| 92055A |
92055-1441 |
RING-O,2.8X6.6X1.9 Price: $2.93 |
| 92072 |
92072-1078 |
BAND Price: $11.16 |
| 92072A |
92072-1205 |
BAND,CABLE Price: $18.75 |
| 92072B |
92072-1246 |
BAND Price: $18.73 |
| 92093 |
92093-1086 |
SEAL,FORK DUST Price: $19.48 |
