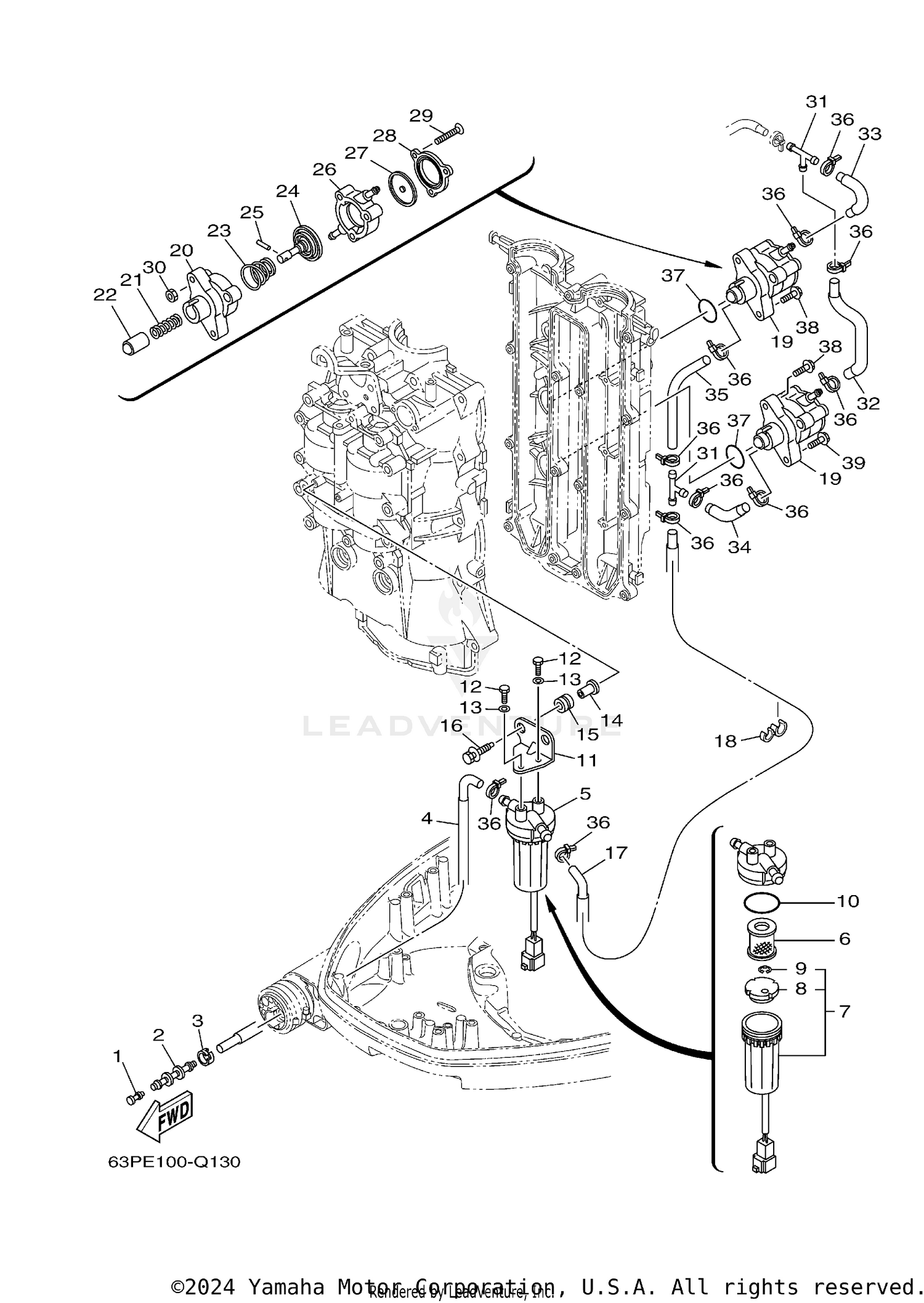

FUEL 1
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 689-85547-01-00 | DAMPER This part replaces 689-85547-00-00. Price: $5.65 |
| 2 | 6AW-24377-01-00 | PIPE, JOINT 2 Price: $24.50 |
| 3 | 6DA-24314-02-00 | PIPE 4 This part replaces 6DA-24314-00-00. Price: $71.60 |
| 4 | 6E5-24351-51-00 | BAND 1 Price: $10.40 |
| 5 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 6 | 6DA-24596-00-00 | COVER Price: $16.30 |
| 7 | 95D95-06025-00 | BOLT, FLANGE DEEP This part replaces 95895-06025-00. Price: $0.95 |
| 8 | 6P3-24560-05-00 | FILTER ASSY This part replaces 6P3-24560-03-00. Price: $82.99 |
| 9 | 6P3-WS24A-02-00 | ELEMENT, FILTER (WITH TAG) This part replaces 6P3-24563-01-00. Price: $25.35 |
| 10 | 6P3-WS24B-03-00 | CUP, FILTER (WITH TA This part replaces 6P3-24562-03-00. Price: $149.00 |
| 11 | 6P3-24469-00-00 | FLOAT, WATER LEVEL Price: $10.95 |
| 12 | 6P3-24519-00-00 | CLIP Price: $5.55 |
| 13 | 6P3-24564-00-00 | GASKET Price: $11.35 |
| 14 | 6DA-24566-00-00 | BRACKET, FILTER Price: $27.30 |
| 15 | 90119-06288-00 | BOLT, WITH WASHER This part replaces 90119-06M17-00. Price: $4.40 |
| 16 | 90480-15013-00 | GROMMET Price: $3.45 |
| 17 | 90387-06289-00 | COLLAR Price: $3.18 |
| 18 | 95D95-06012-00 | BOLT, FLANGE DEEP This part replaces 95895-06012-00. Price: $0.95 |
| 19 | 6DA-24313-00-00 | PIPE 3 Price: $62.10 |
