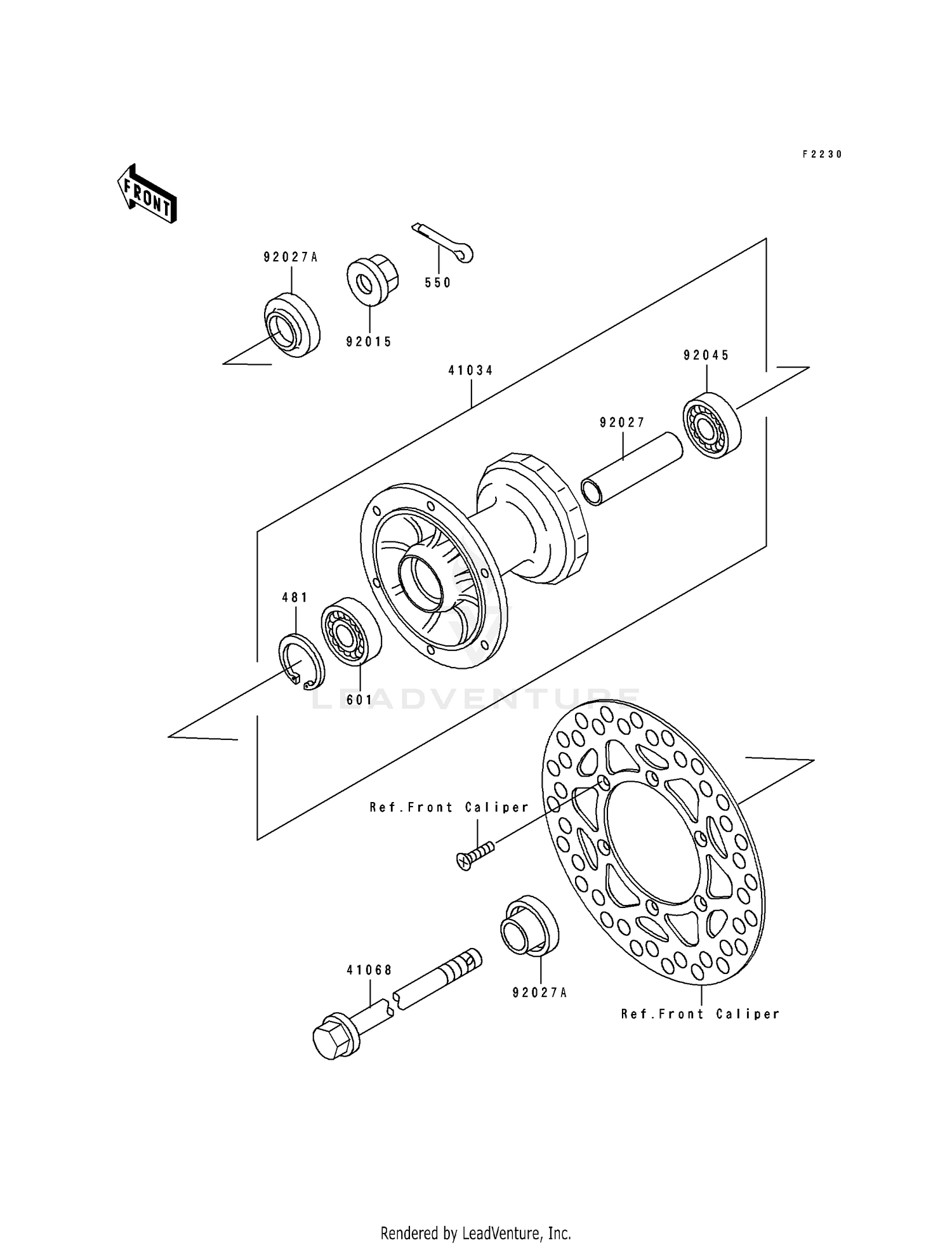

FRONT HUB
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 481 | 481J3700 | CIRCLIP-TYPE-C,37MM Price: $3.04 |
| 550 | 550AA2520 | PIN-COTTER,2.5X20 This part replaces 550D2520. Price: $1.36 |
| 41034 | 41034-1166 | DRUM-ASSY,FRONT BRAKE Price: $248.02 |
| 41068 | 41068-1333 | AXLE,FR Price: $29.72 |
| 92015 | 92015-1433 | NUT,LOCK,FLANGED,12MM Price: $8.86 |
| 92027 | 92027-1925 | COLLAR,L=81 Price: $21.49 |
| 92027A | 92027-1926 | COLLAR,L=6 Price: $13.43 |
| 92045 | 92045-1062 | BEARING-BALL,TMB201LLUC3/2A Price: $26.08 |
