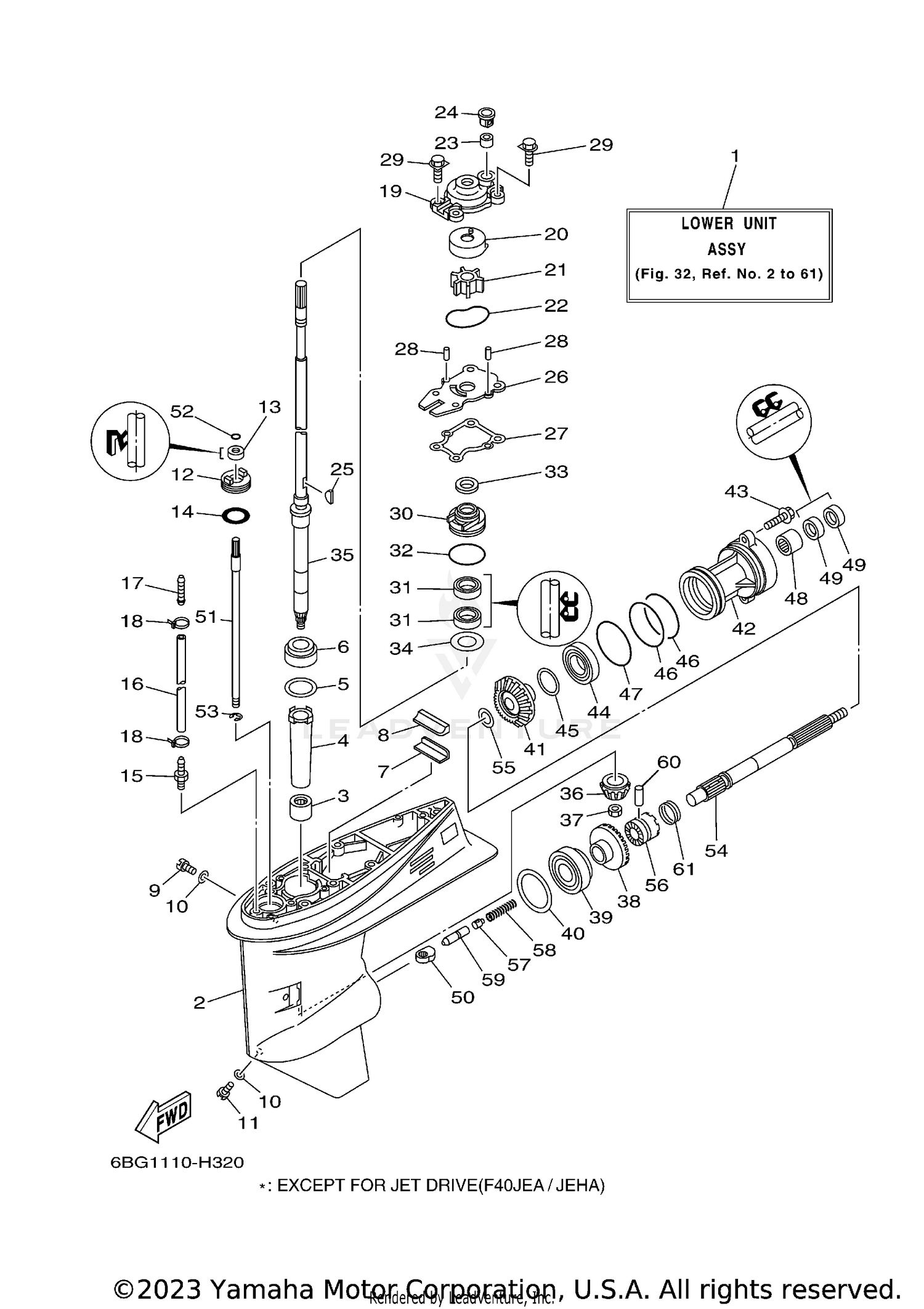

| Ref | Part Number | Description |
|---|
| 2 |
62Y-45301-00-8D |
CASING, LOWER Price: $721.50 |
| 3 |
93315-32224-00 |
BEARING Price: $66.99 |
| 4 |
6H4-45536-00-00 |
SLEEVE, DRIVE SHAFT Price: $15.65 |
| 6 |
93332-00001-00 |
BEARING Price: $63.99 |
| 7 |
663-45376-00-00 |
GUIDE, SEAL DAMPER Price: $14.90 |
| 8 |
63D-45375-00-00 |
DAMPER, SEAL Price: $13.75 |
| 9 |
90340-08002-00 |
PLUG, STRAIGHT SCREW Price: $12.75 |
| 10 |
90430-08003-00 |
GASKET Price: $1.55 |
| 11 |
688-45341-10-00 |
PLUG, DRAIN Price: $12.70 |
| 12 |
63D-45321-00-00 |
PLATE Price: $8.60 |
| 13 |
93106-09014-00 |
OIL SEAL Price: $8.40 |
| 14 |
93210-33MG4-00 |
O-RING Price: $6.25 |
| 15 |
6E5-45378-00-00 |
NIPPLE, HOSE Price: $10.80 |
| 16 |
90445-07MF2-00 |
HOSE (L250) This part replaces 90445-07ME8-00. Price: $4.15 |
| 17 |
6E5-83558-10-00 |
END, NIPPLE Price: $11.40 |
| 18 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 19 |
66T-44311-00-00 |
HOUSING, WATER PUMP Price: $16.80 |
| 20 |
63D-44322-00-00 |
INSERT, CARTRIDGE Price: $17.15 |
| 21 |
6H4-44352-02-00 |
IMPELLER Price: $34.55 |
| 22 |
93210-59MG7-00 |
O-RING Price: $7.70 |
| 23 |
663-44366-01-00 |
DAMPER, WATER SEAL 2 Price: $6.30 |
| 24 |
63D-44312-00-00 |
COVER, WATER PUMP HOUSING Price: $4.70 |
| 25 |
90280-03M03-00 |
KEY, WOODRUFF Price: $7.60 |
| 26 |
63D-44323-00-00 |
OUTER PLATE, CARTRIDGE Price: $16.40 |
| 27 |
63D-44316-00-00 |
GASKET, WATER PUMP Price: $6.15 |
| 28 |
93604-08062-00 |
PIN, DOWEL Price: $3.55 |
| 29 |
90119-08185-00 |
BOLT, WITH WASHER Price: $2.85 |
| 30 |
6BG-44341-00-00 |
HOUSING, WATER PUMP Price: $38.60 |
| 31 |
93101-22M60-00 |
OIL SEAL Price: $7.30 |
| 32 |
93210-48001-00 |
O-RING Price: $6.25 |
| 33 |
66T-45344-02-00 |
COVER, OIL SEAL Price: $4.75 |
| 34 |
90201-27M00-00 |
WASHER, PLATE Price: $5.65 |
| 36 |
66T-45551-00-00 |
PINION (13T) Price: $120.50 |
| 37 |
90170-12138-00 |
NUT Price: $11.49 |
| 38 |
66T-45560-01-00 |
GEAR 1 (26T) Price: $231.45 |
| 39 |
93332-00003-00 |
BEARING Price: $89.99 |
| 41 |
66T-45571-00-00 |
GEAR 2 (26T) Price: $176.60 |
| 42 |
63D-45361-02-8D |
CAP, LOWER CASING Price: $127.55 |
| 43 |
90105-08M61-00 |
BOLT, FLANGE Price: $11.10 |
| 44 |
93306-001U1-00 |
BEARING Price: $48.99 |
| 46 |
93210-74775-00 |
O-RING This part replaces 93210-74MG5-00. Price: $4.75 |
| 47 |
93210-69MG6-00 |
O-RING Price: $7.70 |
| 48 |
93317-22204-00 |
BEARING Price: $50.99 |
| 49 |
93101-22067-00 |
OIL SEAL This part replaces 93101-22M00-00. Price: $7.55 |
| 50 |
62Y-44151-00-00 |
CAM, SHIFT Price: $48.55 |
| 51 |
63D-44144-00-00 |
ROD, SHIFT 2 Price: $121.60 |
| 52 |
93210-07540-00 |
O-RING This part replaces 93210-07003-00. Price: $7.49 |
| 53 |
99001-08600-00 |
CIRCLIP Price: $9.49 |
| 54 |
63D-45611-00-00 |
SHAFT, PROPELLER Price: $273.45 |
| 55 |
90201-22429-00 |
WASHER, PLATE Price: $7.15 |
| 56 |
63D-45631-01-00 |
CLUTCH, DOG Price: $175.55 |
| 57 |
663-45634-00-00 |
SLIDE, SHIFT Price: $14.20 |
| 58 |
90501-18001-00 |
SPRING, COMPRESSION Price: $4.75 |
| 59 |
63D-45635-00-00 |
PLUNGER, SHIFT Price: $22.75 |
| 60 |
90250-06023-00 |
PIN, STRAIGHT Price: $10.40 |
