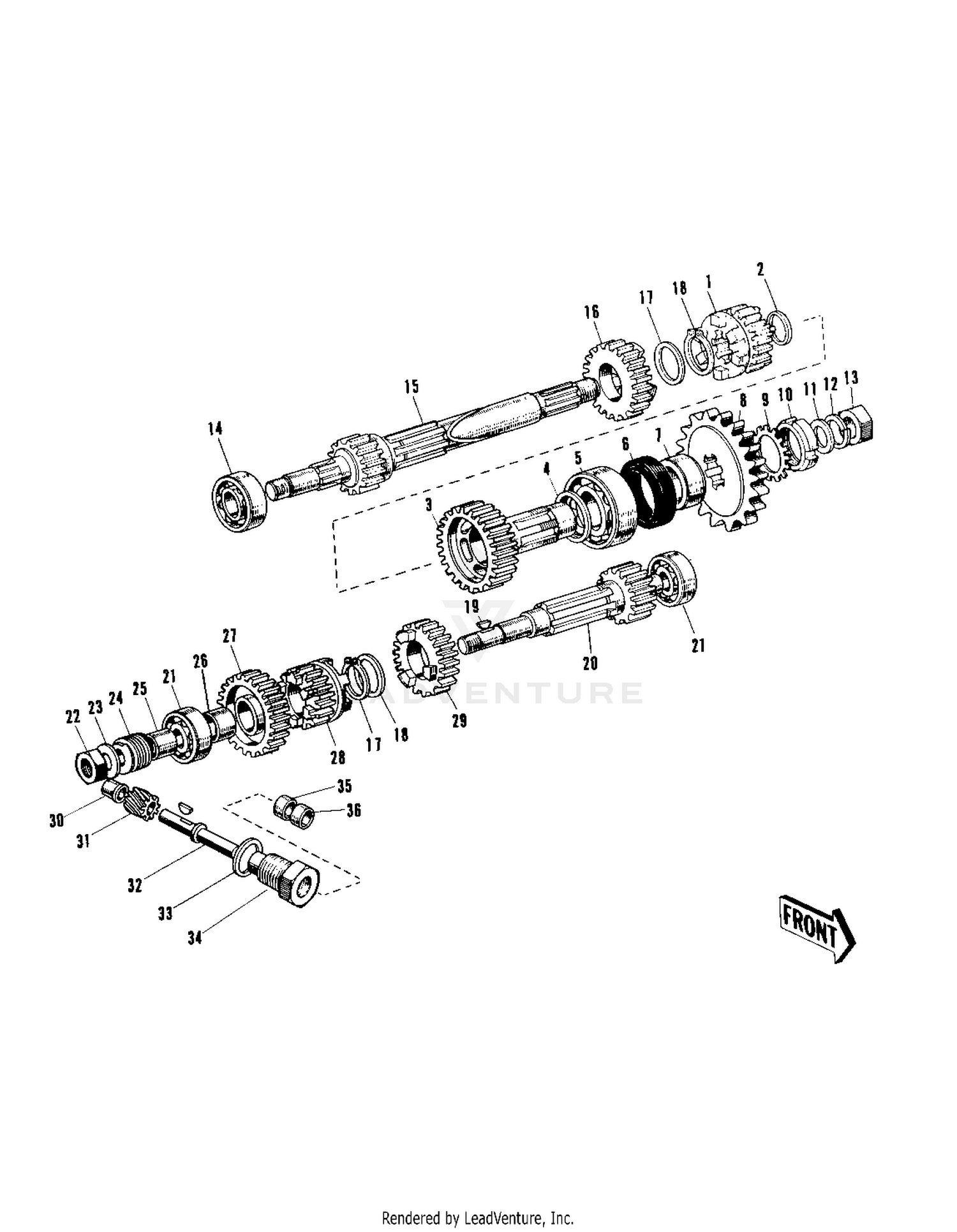

| Ref | Part Number | Description |
|---|
| 2 |
92026-041 |
WASHER TOP GEAR THRST Price: $3.95 |
| 3 |
13136-018 |
TOP GEAR DRIVE SHAFT Price: $142.06 |
| 4 |
92026-039 |
SPACER TOP GEAR Price: $3.96 |
| 5 |
92045-006 |
BEARING BALL #6206N Price: $11.21 |
| 6 |
92050-018 |
OIL SEAL SC405465 Price: $34.17 |
| 7 |
92027-042 |
SPACER ENG SPROCKET Price: $7.48 |
| 9 |
92032-001 |
WASHER LOCK 30MM Price: $1.69 |
| 10 |
92015-011 |
NUT 30MM Price: $4.08 |
| 11 |
92026-040 |
WASHER MAIN SHT THRST Price: $7.66 |
| 12 |
461E1600 |
WASHER SPRING 16MM Price: $1.12 |
| 13 |
92015-029 |
NUT 16MM Price: $3.66 |
| 14 |
601A6204 |
BEARING BALL #6204 Price: $12.90 |
| 15 |
13127-015 |
SHAFT DRIVE Price: $153.58 |
| 16 |
13132-010 |
UNAVAILABLE IN PRICE BOOK Price: $83.80 |
| 17 |
92022-103 |
WASHER 28MM Price: $0.54 |
| 18 |
480J2800 |
CIRCLIP-TYPE-C,28MM Price: $4.70 |
| 19 |
92038-006 |
WOODRUFF KEY SPD GEAR Price: $1.39 |
| 20 |
13128-016 |
SHAFT OUTPUT Price: $95.55 |
| 21 |
601B6302 |
BEARING BALL #6302 Price: $9.05 |
| 22 |
315AA1400 |
NUT,14MM This part replaces 315B1400. Price: $2.17 |
| 23 |
461F1400 |
WASHER SPRING 14MM Price: $0.43 |
| 24 |
13224-002 |
UNAVAILABLE IN PRICE BOOK Price: $30.83 |
| 25 |
92027-043 |
SPACER SPEED PINION Price: $3.18 |
| 26 |
92026-017 |
WASHER MAIN SHT THRST Price: $4.01 |
| 27 |
13129-020 |
LOW GEAR OUTPUT SHAFT Price: $80.38 |
| 30 |
92028-084 |
BUSH SPEED GEAR SHAFT Price: $7.35 |
| 31 |
13225-001 |
GEAR SPEEDOMETER Price: $29.57 |
| 32 |
13226-001 |
SHAFT SPEED GEAR Price: $14.23 |
| 33 |
92065-032 |
GASKET SPD GR HOUSING Price: $0.24 |
| 34 |
13227-001 |
HOUSING SPEED GEAR Price: $46.73 |
| 35 |
92053-005 |
OIL SEAL VB8178 Price: $3.11 |
